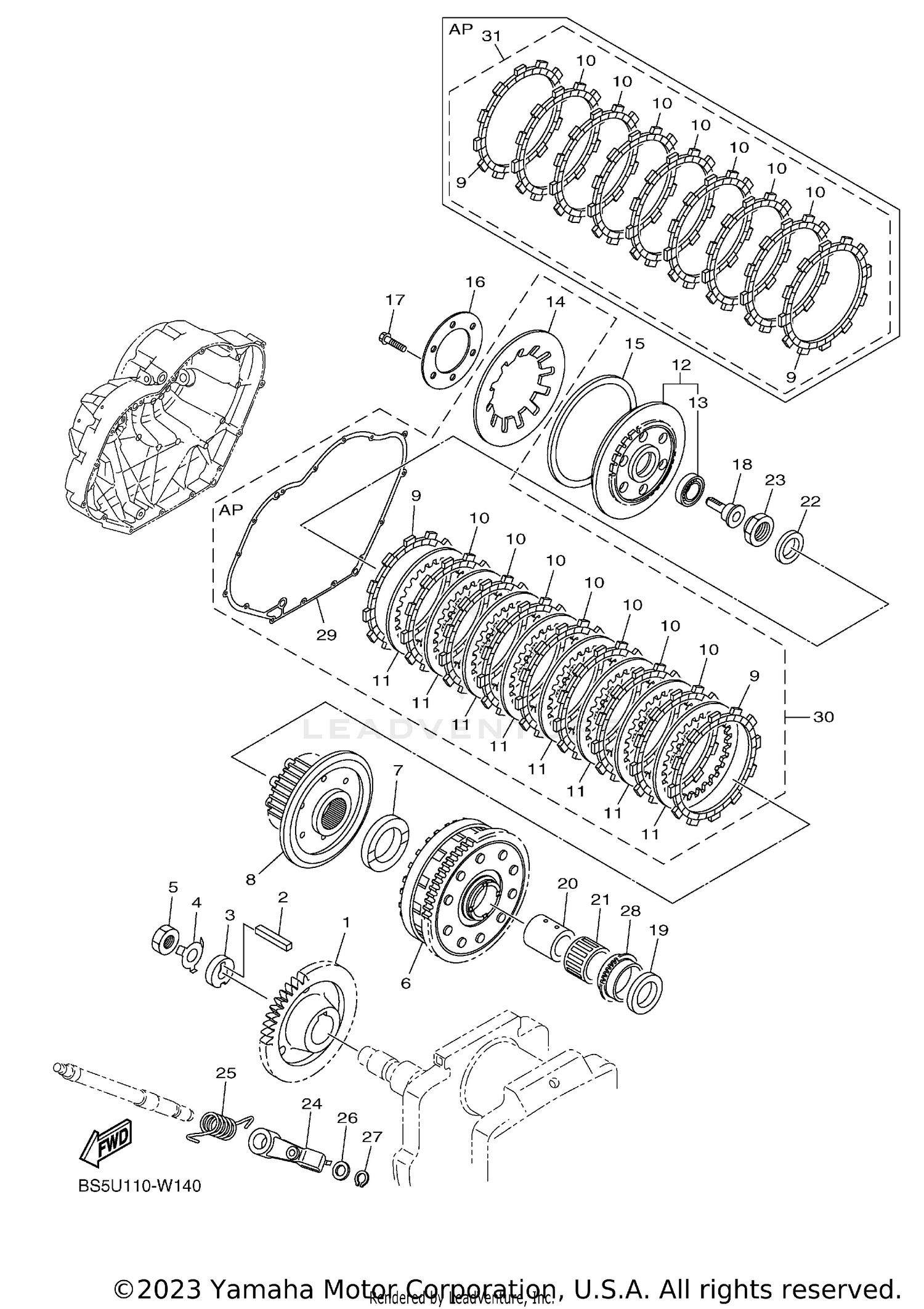

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
5S7-16111-00-00
|
$255.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY, FEATHER
4WM-16193-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER 1
3D8-16181-10-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, LOCK
90215-18003-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
NUT
90170-18008-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PRIMARY DRIVEN GEAR COMP.
1TP-16150-00-00
|
$485.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, THRUST 1
5YU-16154-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOSS, CLUTCH
3D8-16371-00-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, FRICTION
341-16321-20-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, FRICTION
5JW-16321-10-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PRESSURE PLATE ASSY
3D8-16350-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-00304-00
Superseded by 93306-00315-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SPRING, CLUTCH 2
5S7-16334-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOUSING, SPRING
36Y-16335-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, PRESSURE 2
1TX-16352-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97002-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, PUSH 1
4XV-16356-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, THRUST 2
3D8-16164-10-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-26006-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
93310-33560-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, CONICAL SPRING
90208-20001-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90179-20007-00
Superseded by 90179-20022-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PUSH LEVER ASSY
5S7-16340-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, TORSION
90508-18040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-10029-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CIRCLIP
99009-10400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SPROCKET, DRIVE
3D8-13354-10-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET, CRANKCASE COVER 2
3D8-15461-00-00
|
$38.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
CLUTCH KIT '14 XVS95
1TP-W001G-00-00
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
FRICTION PLATE KIT
BDT-W001M-00-00
|
$105.99 | ||
|
Unavailable |
|||
