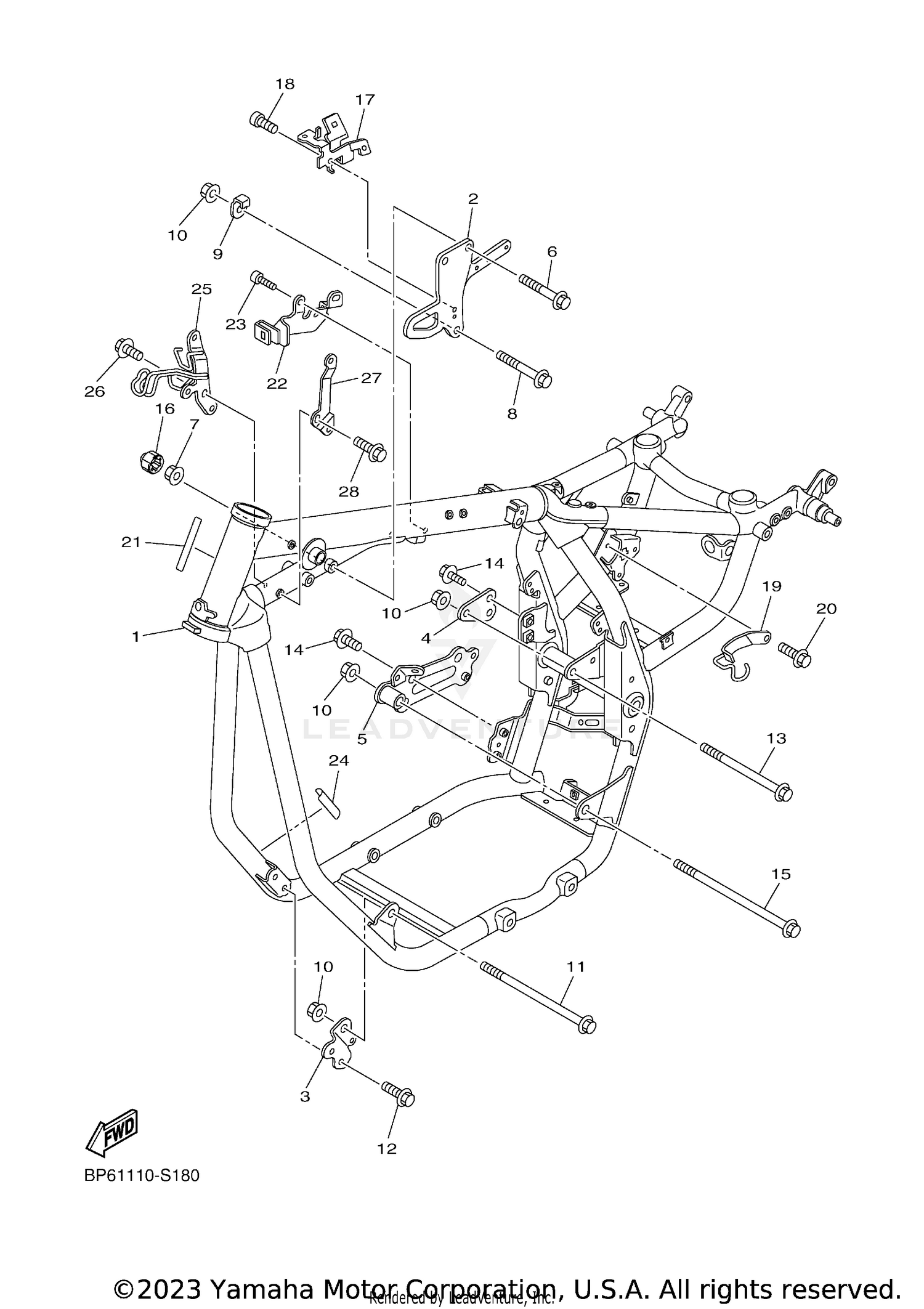

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
BP6-21110-00-00
|
$1,650.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, ENGINE 3
1TP-21317-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY 3
1TP-2122C-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, ENGINE 5
1TP-21314-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, REAR
1TP-2116F-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-10434-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-10008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-12090-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE
1TP-21183-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCKING
90185-12002-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-12088-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10415-00
Superseded by 90105-10003-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-12091-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-10428-00
Superseded by 90105-10429-00
|
$4.75 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
90105-12086-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP
5YU-2143A-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRKT
1TP-2115C-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX.SOCKET HEAD
91317-06008-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE, CABLE
1TP-21288-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PROTECTOR
3D8-2117G-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, BATTERY BOX
1TP-21149-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, BUTTON HEAD
90111-06085-00
Superseded by 92012-06010-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SEAL
5PX-21268-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER
1TP-26475-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, 2
BP6-26481-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$10.49 | ||
|
Unavailable |
|||
