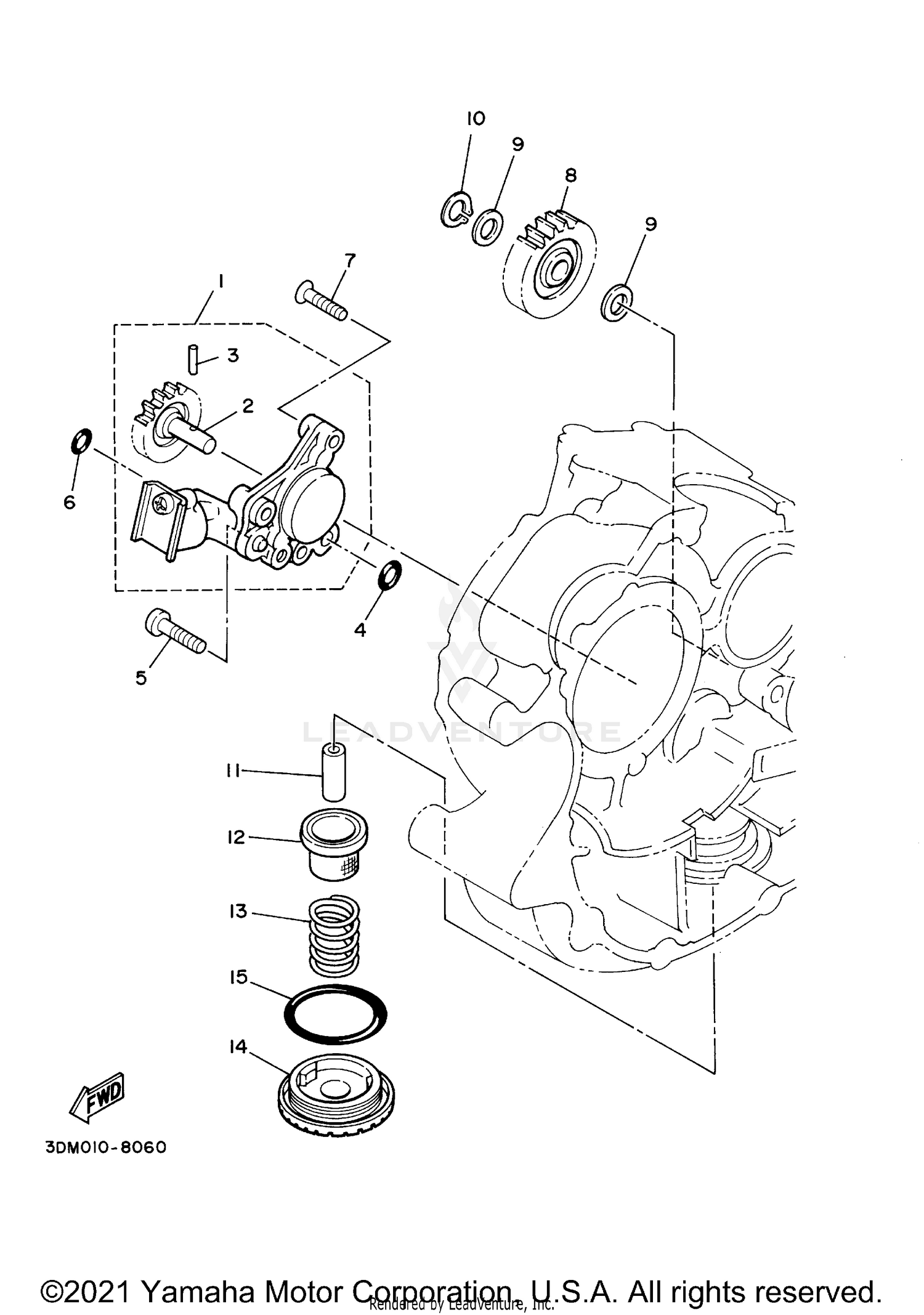

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
2UJ-13300-10-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVEN 2 (14T)
3Y6-13326-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PLUNGER
93603-12030-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-10096-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98507-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
O-RING
93210-06245-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FLAT HEAD
98707-06025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GEAR, OIL PUMP IDLE
2UJ-13341-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-10119-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
99009-10400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIPE, OIL 1
3Y1-13416-01-00
Superseded by 2XK-13416-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
STRAINER, OIL
51Y-13411-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION
90501-18576-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, DRAIN
30X-15351-00-00
Superseded by 4HC-15351-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING
93210-347A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
