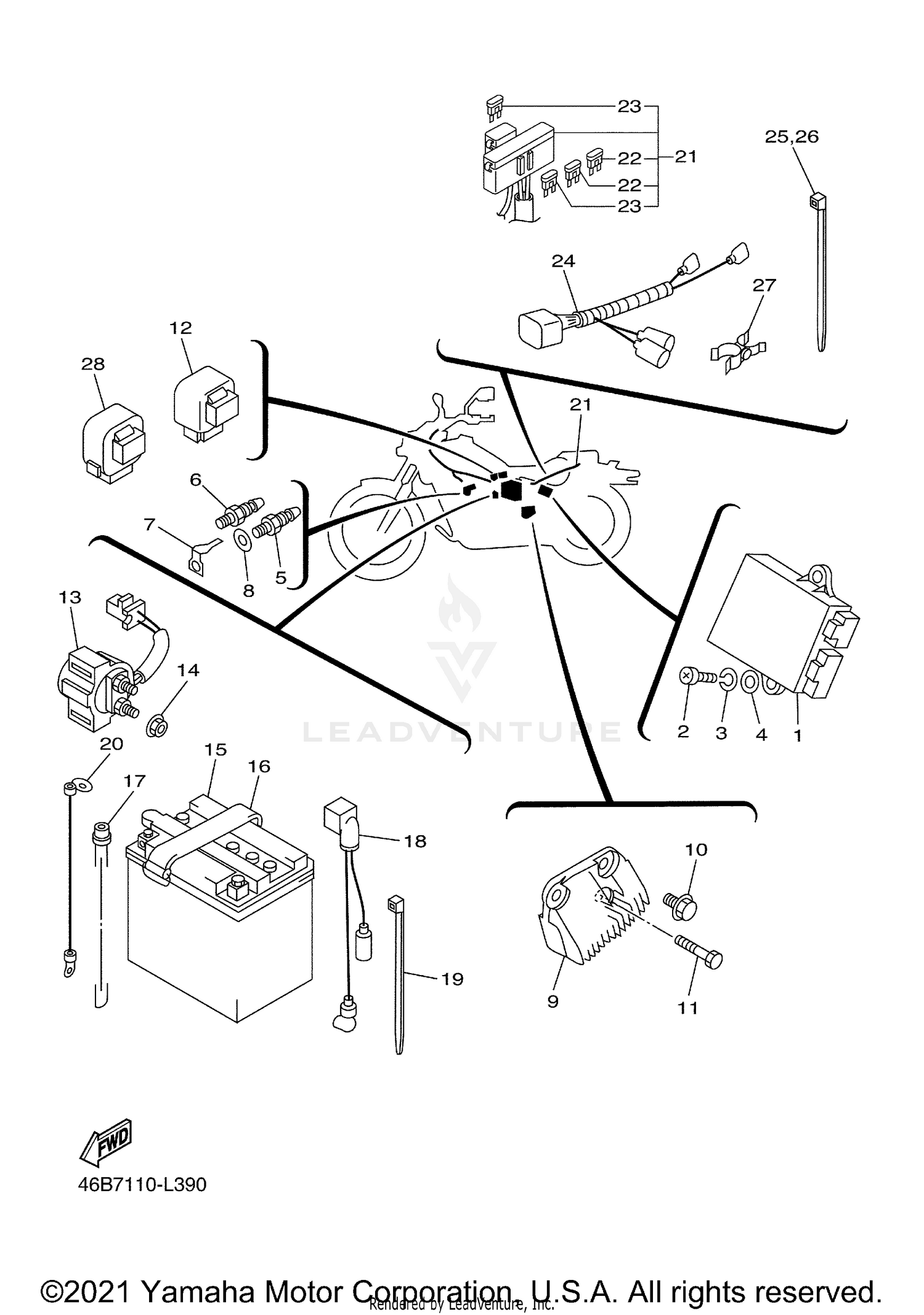

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITOR UNIT ASSY
2UJ-82305-00-00
|
$464.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,PAN HEAD
98507-06016-00
|
$3.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HEATER ASSY (30W)
5FU-83790-20-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HEATER ASSY
5FU-83790-00-00
Superseded by 5FU-83790-01-00
|
$34.99 | ||
|
Unavailable |
|||
|
#6
HEATER ASSY (30W)
5FU-83790-20-00
|
$53.99 | ||
|
Unavailable |
|||
|
#7
TERMINAL 1
5FU-82103-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08016-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
RECTIFIER & REGULATOR ASSY
3DM-81960-01-00
|
$276.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT,HEXAGON
97007-06030-00
Superseded by 97017-06030-00
|
$3.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
RELAY ASSY (G8R-30Y-A)
2UJ-81950-01-00
Superseded by 2UJ-81950-02-00
|
$71.99 | ||
|
Unavailable |
|||
|
#13
STARTER RELAY ASSY
36Y-81940-01-00
Superseded by 36Y-81940-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE
95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
YB10LA2 YUASA BATTE
3DN-82110-01-00
Superseded by YB1-0LA20-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, BATTERY
118-82131-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE
90445-08248-00
Superseded by 90445-08719-00
|
$10.99 | ||
|
Unavailable |
|||
|
#18
WIRE, PLUS LEAD
2UJ-82115-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-16061-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRE, MINUS LEAD
2UJ-82116-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE HARNESS ASSY
3BG-82590-30-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE HARNESS ASSY
46B-82590-00-00
Superseded by 46B-82590-01-00
|
$246.99 | ||
|
Unavailable |
|||
|
#22
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE (20A-BL)
5JJ-82151-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRE, SUB LEAD
2UJ-82509-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-16061-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
CLAMP
90464-16061-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
CLAMP
90464-16119-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#28
FLASHER RELAY ASSY
3GM-83350-02-00
Superseded by 3GM-83350-03-00
|
$88.99 | ||
|
Unavailable |
|||
