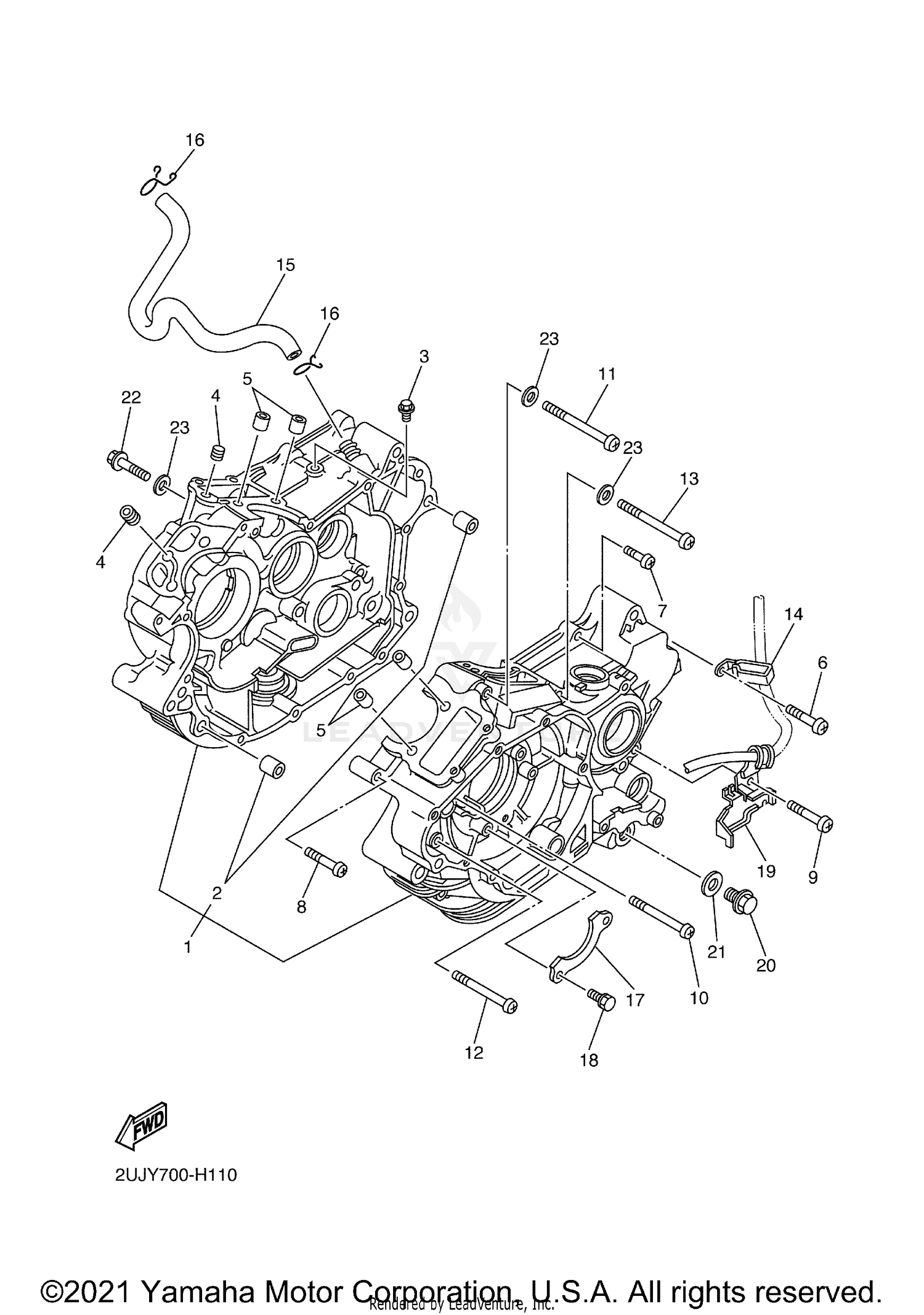

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
2UJ-15100-03-00
|
$890.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06048-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
NOZZLE 1
2UJ-15138-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98504-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98504-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98504-06040-00
Superseded by 98580-06040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98507-06060-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98507-06070-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98504-06070-00
Superseded by 98580-06570-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98507-06080-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98504-06080-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90465-08277-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, BREATHER 1
2UJ-11166-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90467-14015-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PLATE
2UJ-12279-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, WITH WASHER
90119-06238-00
Superseded by 97512-06512-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90465-08060-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, HEXAGON
90153-06029-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
