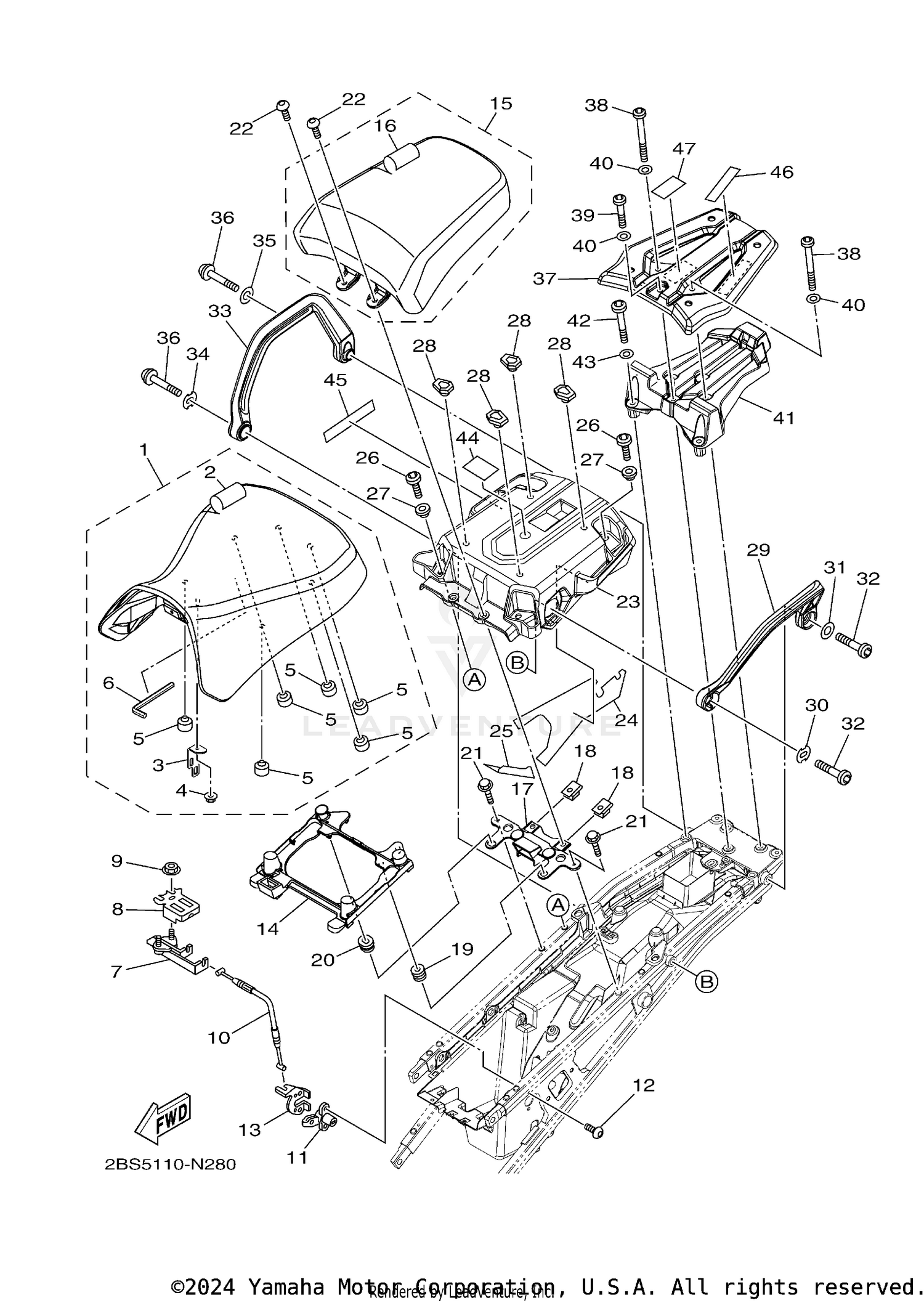

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
2KB-24710-00-00
Superseded by 2KB-24710-01-00
|
$276.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SINGLE SEAT
2KB-24711-00-00
Superseded by 2KB-24711-01-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, SEAT
23P-24718-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
STOPPER, MAIN STAND
371-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WRENCH, HEXAGON 8
23P-28164-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT LOCK ASSY
4BP-24780-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, SEAT LEVER 1
23P-2475H-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-06403-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, SEAT LOCK
23P-2478E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT LOCK ASSY
2TV-24799-00-00
Superseded by 3CK-W2470-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
90149-06308-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, LOCK
23P-2117K-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT BRACKET ASSY
23P-24708-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
TANDEM SEAT ASSY
2KB-24750-00-00
Superseded by 2KB-24750-01-00
|
$273.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, TANDEM SEAT
2KB-24751-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, FRONT 1
23P-2474F-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SPRING
90183-08060-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
GROMMET
90480-01559-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95802-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, BUTTON HEAD
92012-08025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CARRIER, 2
23P-24842-10-00
|
$297.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAT
23P-2172P-10-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAT 2
23P-2173P-00-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
90149-06121-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-06264-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, SEAT
23P-24737-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
ASSIST GRIP ASSY.,
23P-2470J-01-P1
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER
23P-24736-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, HEX. SOCKET BUTTON
90111-10054-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
ASSIST GRIP ASSY., 2
23P-2470K-01-P1
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER
23P-24736-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#35
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.72 | ||
|
Unavailable |
|||
|
#36
BOLT, HEX. SOCKET BUTTON
90111-10054-00
|
$6.49 | ||
|
Unavailable |
|||
|
#37
CARRIER, 1
23P-24841-10-00
|
$273.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, HEX. SOCKET BUTTON
90111-08074-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, HEX. SOCKET BUTTON
90111-08076-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-08048-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
STAY, BOX
23P-24884-00-00
|
$242.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, HEX. SOCKET BUTTON
90111-08076-00
|
$4.50 | ||
|
Unavailable |
|||
|
#43
WASHER, PLATE
90201-08048-00
|
$6.49 | ||
|
Unavailable |
|||
|
#44
LABEL, WARNING CARRIER 2
23P-2816K-10-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
LABEL, WARNING CARRIER 1
23P-2816J-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
LABEL, NOTICE CARRIER
23P-2815T-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
LABEL, WARNING CARRIER 2
23P-2816K-10-00
|
$7.99 | ||
|
Unavailable |
|||
