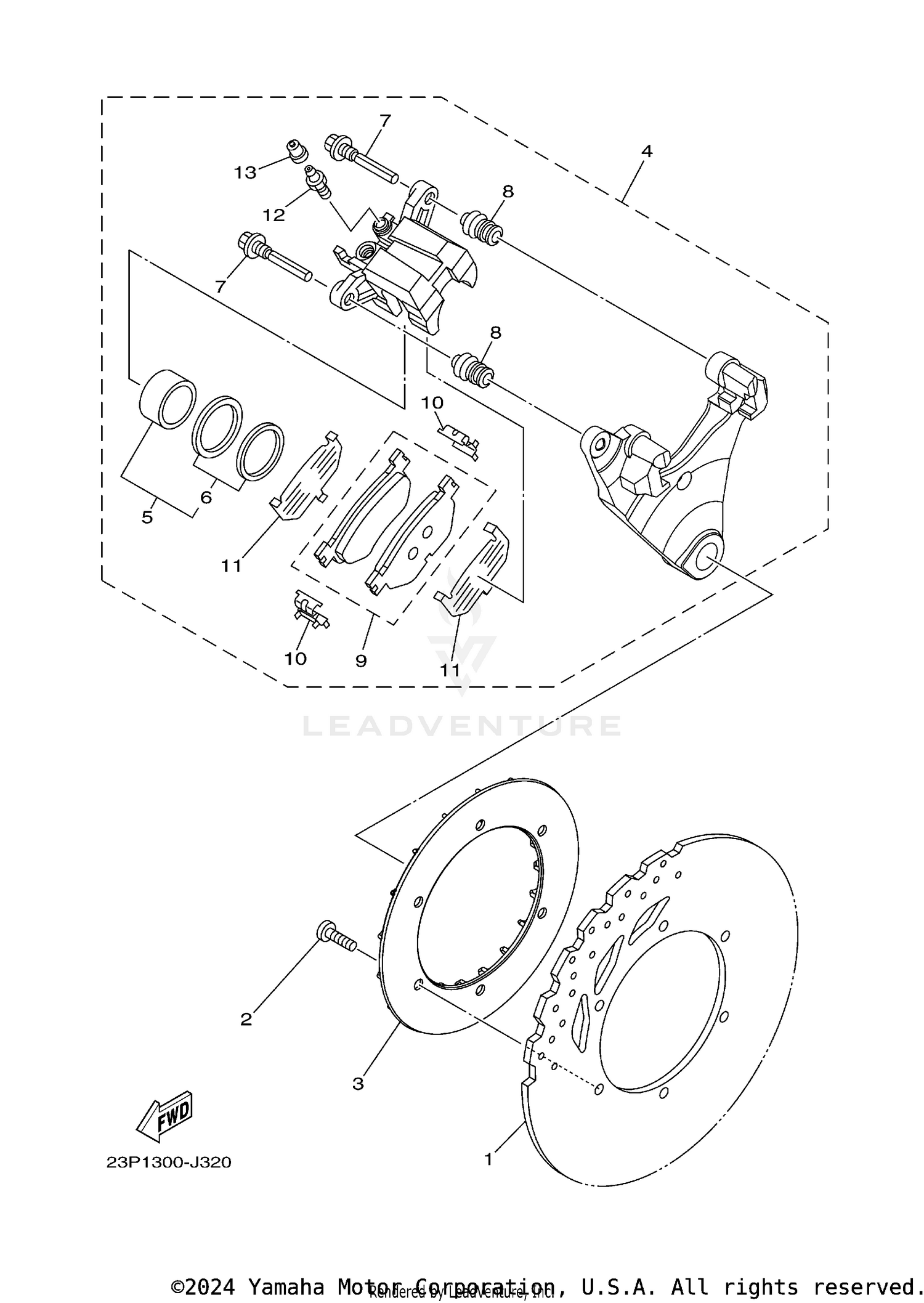

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISK, REAR BRAKE 2
23P-2582W-01-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
90149-08024-00
Superseded by 90149-08029-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, DISK
23P-2581A-10-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSY, REAR 2
23P-2580W-00-00
|
$429.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON ASSY, CALIPER
1D7-W0057-00-00
Superseded by 1D7-25802-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CALIPER SEAL KIT
5JW-W0047-00-00
Superseded by 5JW-25803-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, SLIDE
5JW-25914-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT 2
4TT-25937-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE PAD KIT 2
1D7-W0046-00-00
Superseded by 3D8-25806-00-00
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SUPPORT, PAD
5JW-25919-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, CALIPER
5JW-25827-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BLEED
5GM-25824-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
1D7-25825-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
