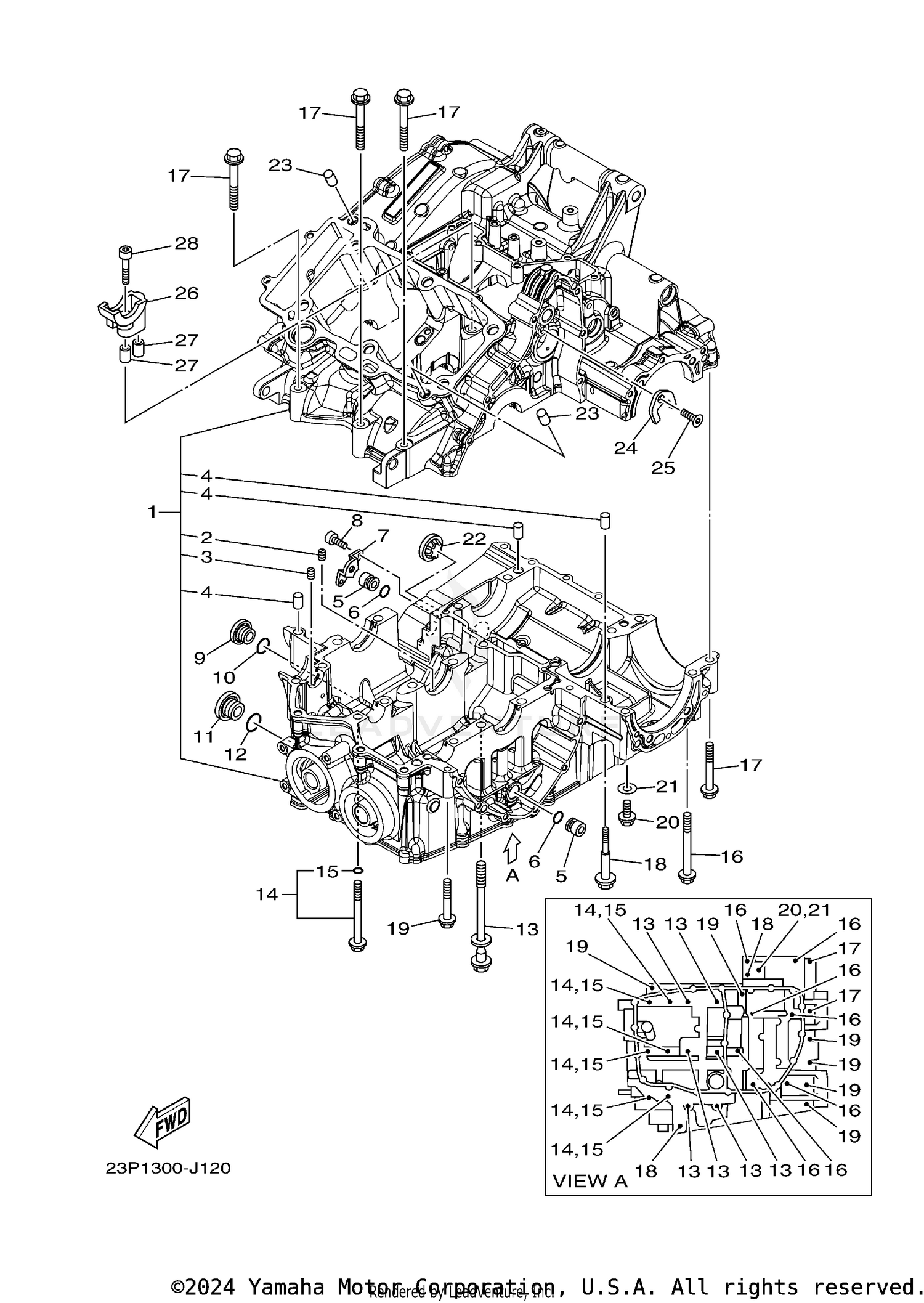

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
23P-15100-09-00
|
$2,026.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NOZZLE
4H7-15138-00-00
Superseded by 4KM-13572-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#3
NOZZLE 1
2UJ-15138-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PLUG
90338-16262-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-12790-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
HOLDER
23P-15128-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
36Y-15189-00-00
Superseded by 36Y-15189-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-16325-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PLUG
4H7-15189-00-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
O-RING
93210-207A0-00
Superseded by 93210-20802-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-10051-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CRANKCASE JOURNAL
23P-15156-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-07540-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE
95812-08080-00
Superseded by 95817-08080-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95812-08060-00
Superseded by 95817-08060-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-06100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95812-06050-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95022-08016-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GAUGE, LEVEL
2H7-15361-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
Unavailable |
|||
|
#24
PLATE
3LD-15191-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, COUNTERSUNK
90151-06024-00
Superseded by 90151-06023-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
HOLDER
23P-15118-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90110-06208-00
Superseded by 91312-06035-00
|
$3.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
