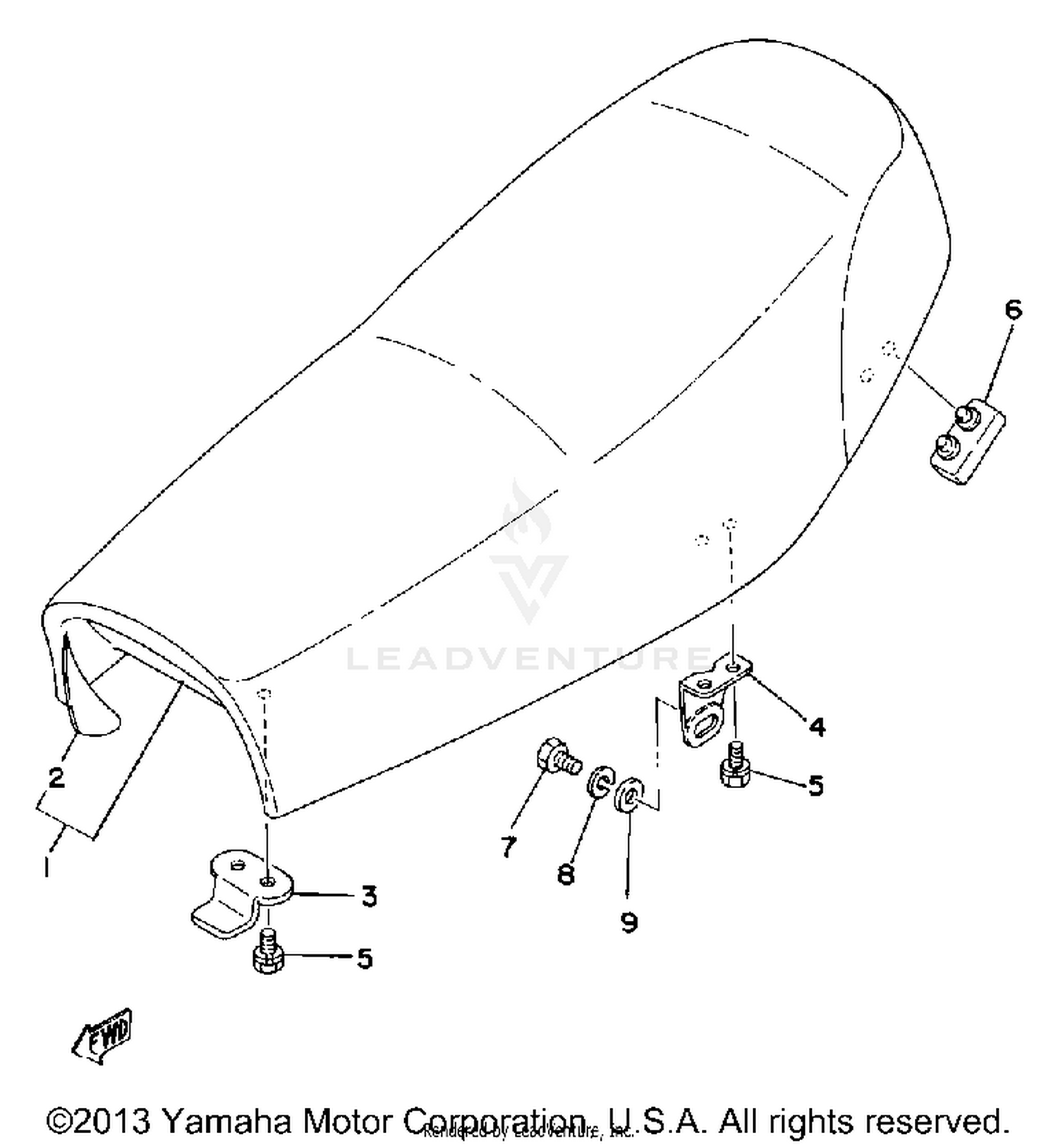

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Double Seat Assy
3H7-W2472-00-00
Superseded by 4E5-W2472-01-00
|
$171.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
3H7-24731-00-00
|
$179.99 | ||
|
Unavailable |
|||
|
#3
UNAVAILABLE IN PRICE BOOK
2Y0-24728-00-00
|
|||
|
Unavailable |
|||
|
#4
BRACKET, SEAT
1T1-24738-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#5
BOLT
90101-06304-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, SEAT
583-24724-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
