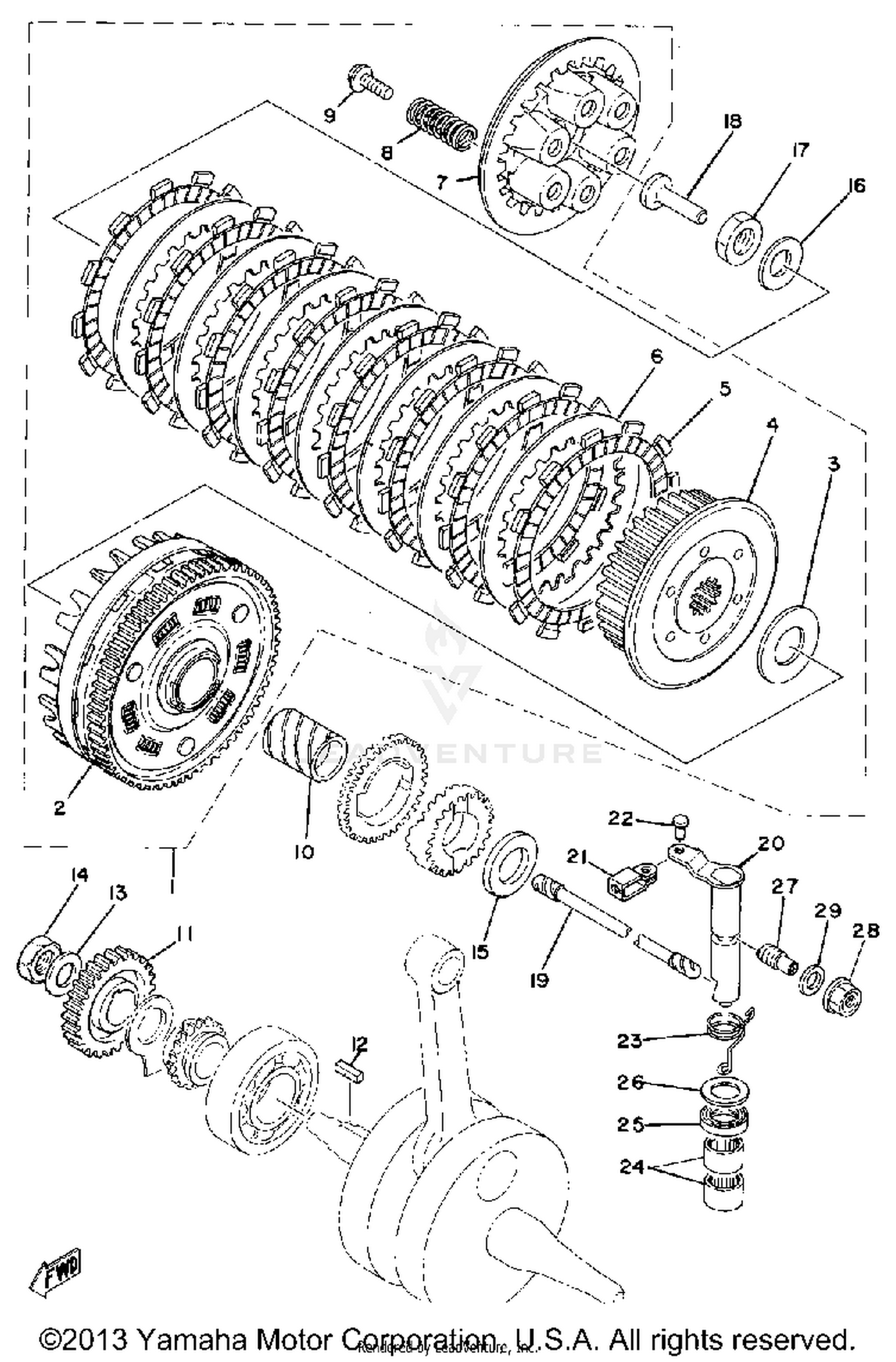

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
583-16301-00-00
|
$96.94 | ||
|
Unavailable |
|||
|
#2
PRI DRVN GEAR
583-16150-00-00
Superseded by 2J2-16150-00-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, THRUST 2
170-16164-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOSS, CLUTCH
583-16371-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FRICTION
5Y1-16321-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLATE, CLUTCH 2
360-16325-00-00
Superseded by 360-16325-10-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, PRESSURE 1
498-16351-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-23391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, WITH WASHER
90159-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
90560-25153-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, PRI DRIVE
583-16111-00-00
|
$173.99 | ||
|
Unavailable |
|||
|
#12
KEY, STRAIGHT
90282-07021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CONICAL SPRING
90208-16019-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90170-16182-00
Superseded by 90170-16425-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PLATE, THRUST 1
363-16154-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, BELLEVILLE
214-16119-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, CRANKSHAFT
90170-18086-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, PUSH
174-16356-00-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
ROD, PUSH 2
583-16357-01-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
AXLE, PUSH LEVER
583-16381-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT
214-16389-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
90243-06016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, TORSION
90508-12279-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93315-11720-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-17357-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-17327-00
Superseded by 90201-18262-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, ADJUSTING
364-16343-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, ADJUSTING
583-16344-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-12172-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
