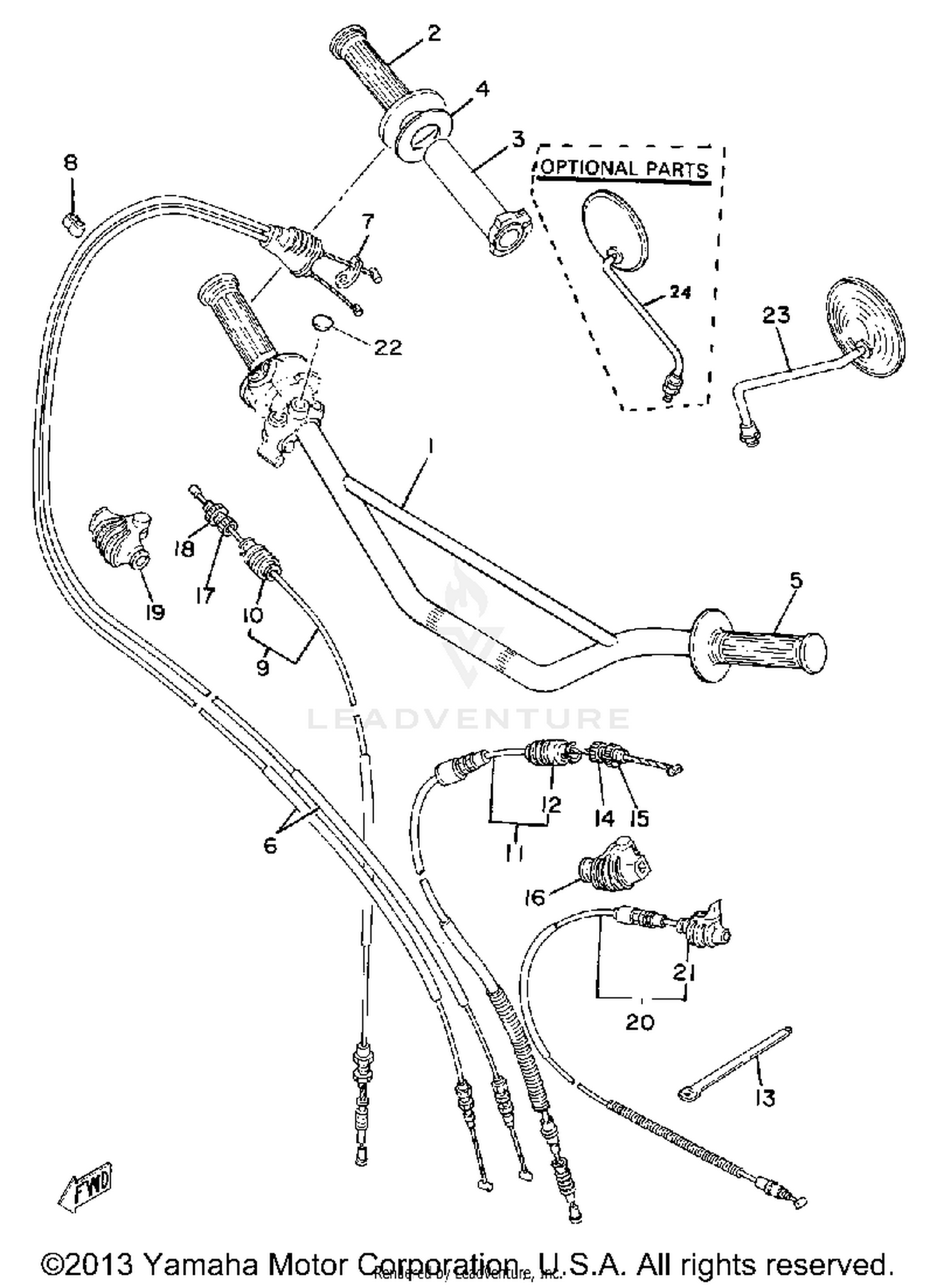

Handlebar Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
3H7-26111-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP RH (R.H.)
583-26242-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, THRTL GUIDE
2H0-26243-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, LEAF
1W1-26249-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP LH
1E6-26241-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
THROTTLE CABLE ASSY
583-26301-00-00
Superseded by 583-26301-01-00
|
$79.99 | ||
|
Unavailable |
|||
|
#7
WASHER
583-26398-00-00
|
$2.85 | ||
|
Unavailable |
|||
|
#8
CLIP
90468-15009-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, BRAKE
3H7-26341-01-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT, CABLE
1E6-26342-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE, CLUTCH
1E6-26335-01-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT, CABLE
1E6-26342-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#13
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, HANDLE LEVER 1
1E6-26372-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$10.49 | ||
|
Unavailable |
|||
|
#18
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$5.99 | ||
|
Unavailable |
|||
|
#19
COVER, HANDLE LEVER 1
1E6-26372-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#20
CABLE, STARTER 1
1E6-26331-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, DECOMPRESSION CABLE
583-26352-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG
90338-09012-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
MIRROR ASSEMBLY LH
1Y1-26290-10-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
MIRROR ASSEMBLY RH
1Y1-26290-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
