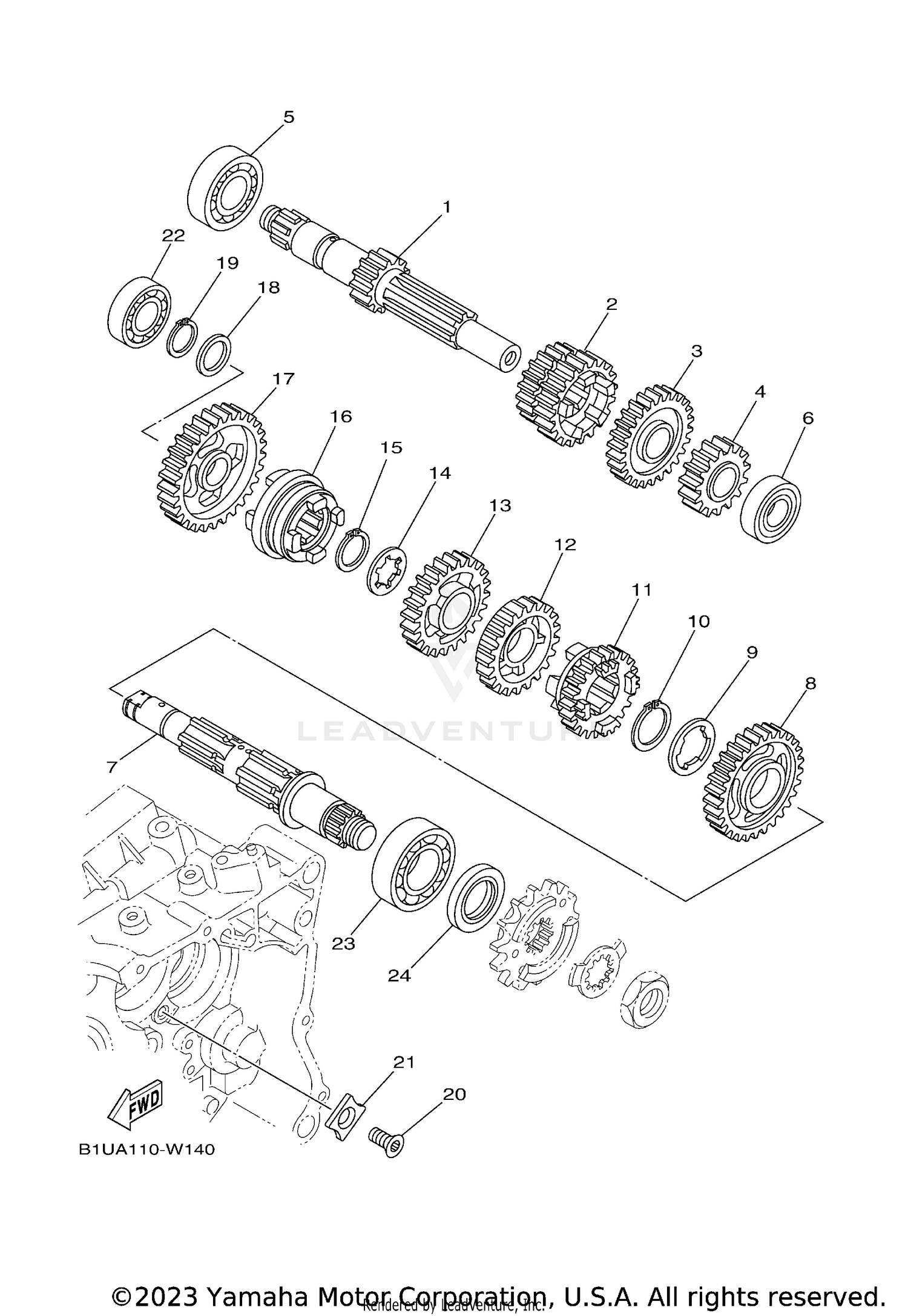

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (13T)
5XT-17411-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 3RD PINION (22T/28T)
5XT-17131-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (28T)
5XT-17151-10-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 2ND PINION (16T)
51Y-17121-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20427-00
Superseded by 93306-20447-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-00320-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DRIVE AXLE ASSY
3C5-17402-00-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 2ND WHEEL (29T)
5XT-17221-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
90209-23241-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
93410-26067-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, 5TH WHEEL (23T)
5XT-17251-10-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 4TH WHEEL (29T)
5XT-17241-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 3RD WHEEL (29T)
5XT-17231-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
90209-18208-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLUTCH, DOG
5BP-17285-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 1ST WHEEL (37T)
3C5-17211-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
90201-177G4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CIRCLIP
93410-17037-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, COUNTERSUNK
90151-06008-00
Superseded by 90151-06014-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLATE, BEARING
3C5-17558-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#22
BEARING
93306-20332-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93306-20532-00
|
$72.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
OIL SEAL
93102-25226-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
