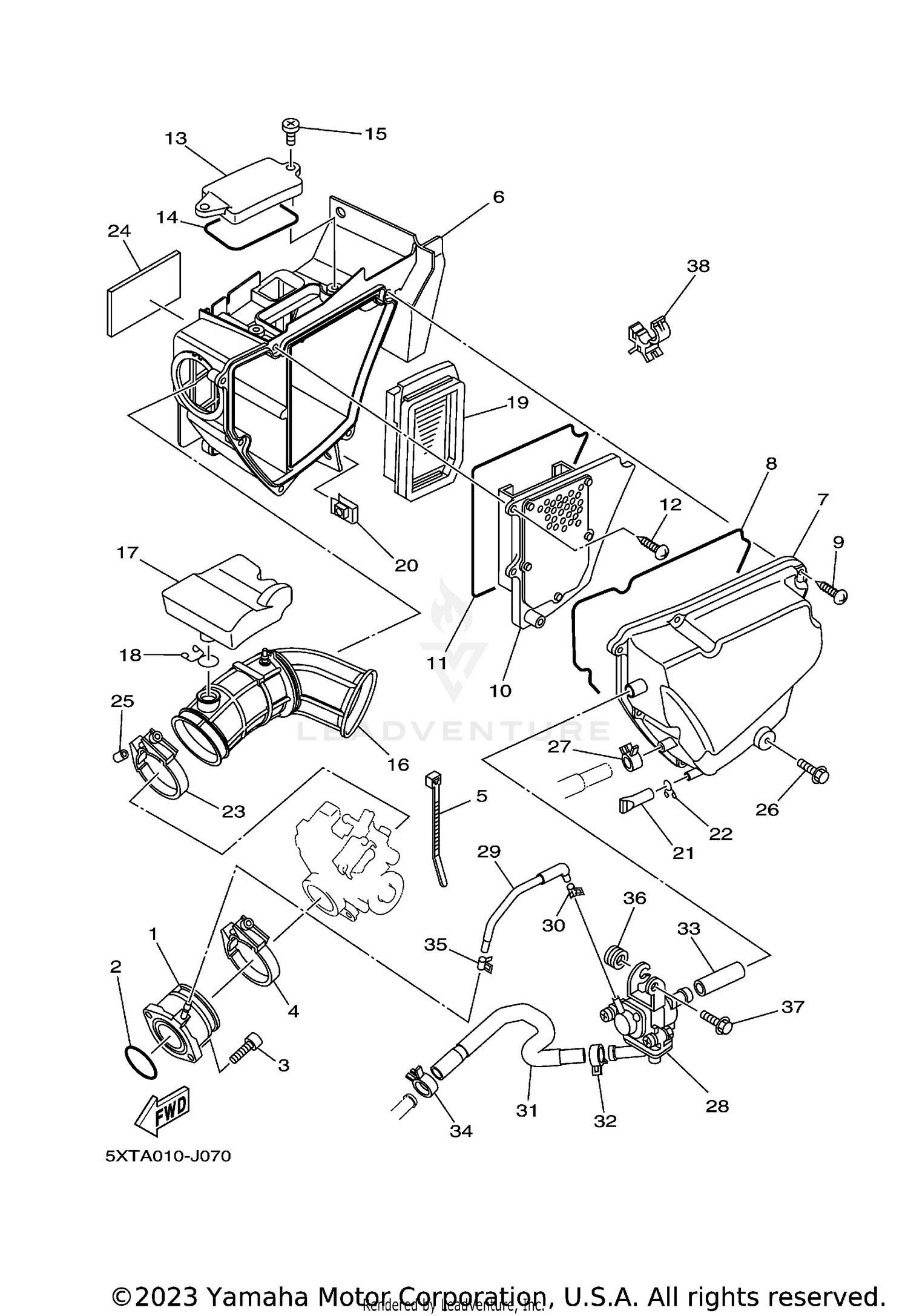

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MANIFOLD
5XT-13585-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-39700-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HOSE CLAMP ASSY
90450-55003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
90465-10098-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
AIR CLEANER CASE ASSY
5XT-14401-20-00
Superseded by 5XT-14401-21-00
|
$48.99 | ||
|
Unavailable |
|||
|
#7
CASE, AIR CLEANER 2
5XT-14421-01-00
Superseded by 5XT-14421-02-00
|
$21.99 | ||
|
Unavailable |
|||
|
#8
SEAL
5XT-14462-00-00
Superseded by 1VJ-14462-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW, TAPPING
97707-50025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, ELEMENT
5XT-14472-00-00
Superseded by 5XT-14472-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#11
SEAL
5XT-14452-00-00
Superseded by 51Y-14462-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW, TAPPING
97707-50520-00
Superseded by 97707-50620-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, CLEANER CASE 1
5XT-14412-00-00
Superseded by 5XT-14412-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
SEAL
5XT-14457-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BIND
98907-06012-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT, AIR CLEANER 1
5XT-14453-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CHAMBER, AIR
5XT-13581-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-18196-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ELEMENT, AIR CLEANER
5XT-14451-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SPRING
90183-06023-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIPE, DRAIN
5XT-1443E-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-11106-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE CLAMP ASSY
90450-46001-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, PLATE 1
5EJ-2414H-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE
90445-05005-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT,FLANGE
90105-06057-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CLIP
90467-12053-00
Superseded by 90467-11044-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
AIR INDUCTION SYSTEM ASSY
5XT-14803-20-00
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE, VACUUM SENSING 1
5XT-13542-11-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-08092-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
HOSE, BEND 1
5XT-14881-20-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-16063-00
Superseded by 90467-16181-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE, BEND 2
5C1-14882-01-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90467-08092-00
|
$10.49 | ||
|
Unavailable |
|||
|
#36
GROMMET
90480-10334-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
95802-06010-00
Superseded by 95812-06010-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-20191-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
