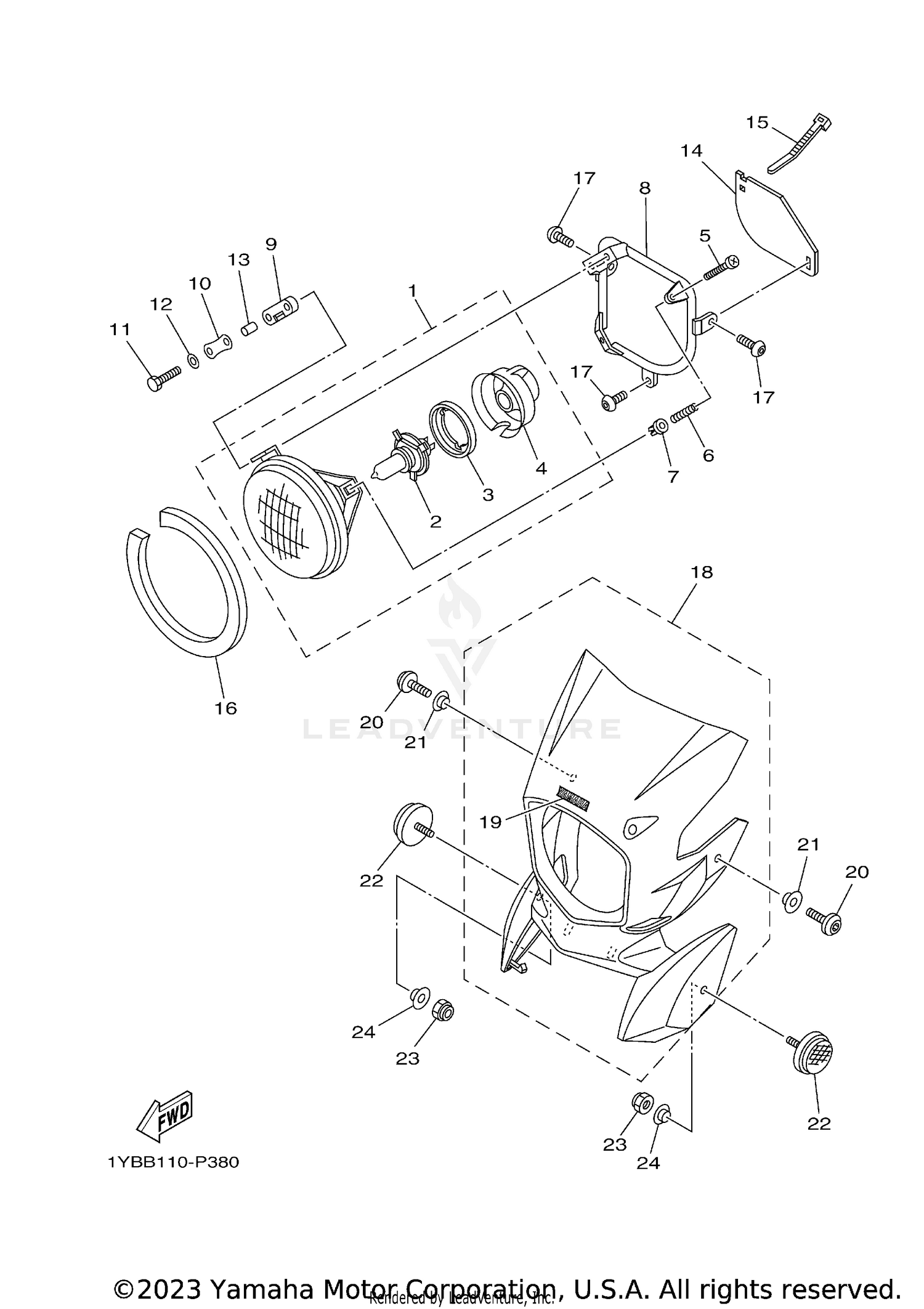

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LENS ASSY
3C5-84320-00-00
|
$344.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB, HEADLIGHT (12V-60/55W)
2F9-84314-00-00
Superseded by 8V0-84314-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SETTING PLATE, BULB
2F9-84375-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SOCKET
2F9-84397-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, LENS FITTING
2F9-84331-00-00
Superseded by 98580-04055-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, SCREW
341-84332-60-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, ADJUSTING
4B4-84334-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIM, HEADLIGHT
3C5-84315-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, HEADLIGHT 1
3C5-84366-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPECIAL
3C5-84127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97002-05020-00
Superseded by 97027-05020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COLLAR
90387-05383-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, HEADLIGHT
3C5-84144-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90465-10098-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
3C5-84559-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92012-06010-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
COVER COMP. ASSY
3C5-Y8450-X0-00
Superseded by 3C5-W8450-X0-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
EMBLEM, YAMAHA
3WF-2153E-11-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
COLLAR
90387-061M0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
REFLECTOR, FRONT 1
2EK-85111-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U
95602-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-05038-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
