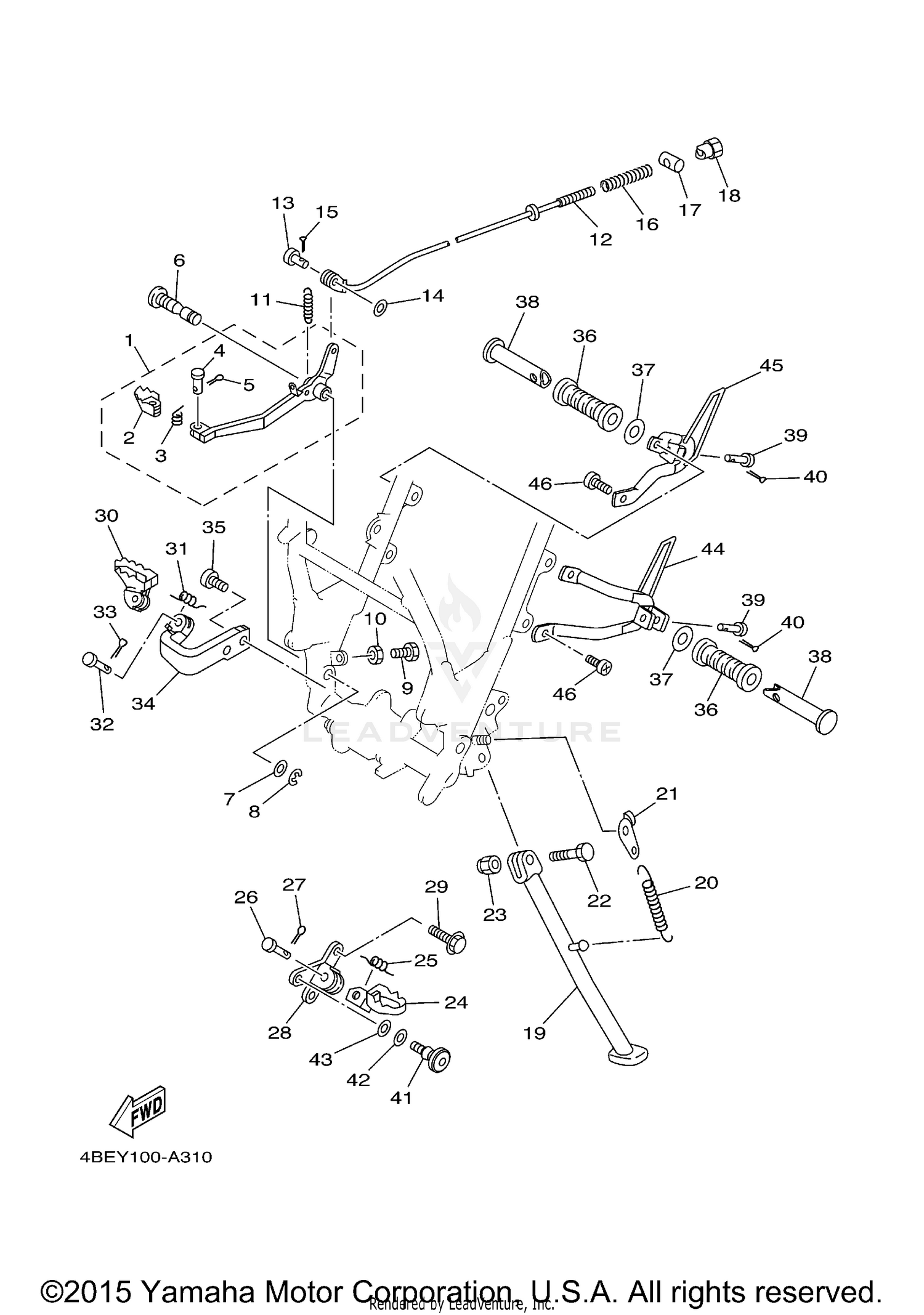

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
1KH-27200-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, BRAKE
55V-27242-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-14352-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
91701-06022-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SHAFT, BRAKE PEDAL
1KH-27212-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-12541-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
93430-09038-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97027-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT
95307-06700-00
Superseded by 95317-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TENSION
90506-18305-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, BRAKE
1KH-27231-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CLEVIS
90240-06076-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
92907-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
Unavailable |
|||
|
#16
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-06411-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAND, SIDE
4BE-27311-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING,TENSION
90506-29276-00
Superseded by 4KN-27116-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
LINK, SIDE STAND
42U-27315-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-10474-00
Superseded by 90109-104E6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-10037-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
FOOTREST 1
22W-27411-01-90
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, TORSION
90508-20023-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN
90240-08084-00
Superseded by 91701-08038-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BRACKET, FOOTREST 1
1KH-27412-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95807-10016-00
Superseded by 95817-10016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
FOOTREST 2
1KH-27421-00-90
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, TORSION
90508-20155-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN
90240-08084-00
Superseded by 91701-08038-00
|
$4.45 | ||
|
Unavailable |
|||
|
#33
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#34
BRACKET, FOOTREST 2
1KH-27422-01-00
|
$250.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
91317-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER, REAR FOOTREST
120-27433-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90201-20279-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
FOOTREST, REAR 1
120-27431-00-00
Superseded by 2GV-27431-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIN
91701-06032-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
Unavailable |
|||
|
#41
BOLT
4BP-27434-01-00
Superseded by 4BP-27434-11-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
WASHER, PLATE
90201-120K4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90201-08784-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
BRACKET 1
3RW-27432-00-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET 2
3RW-27442-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, BUTTON HEAD
92017-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
