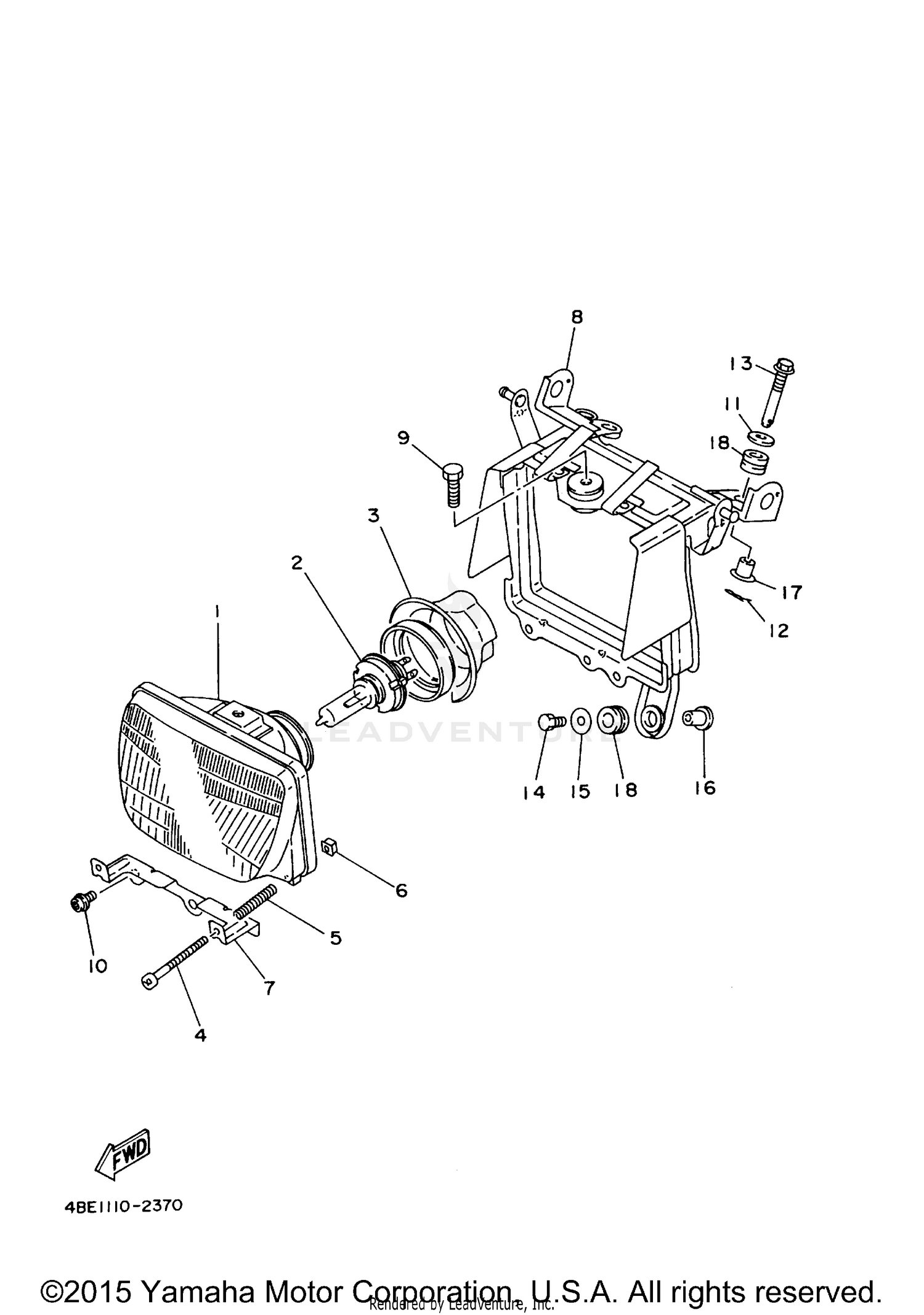

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LENS ASSY
4BE-84320-10-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, SOCKET
2F9-84397-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, RIM FITTING
3TB-84325-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, SCREW
5G2-84332-60-00
Superseded by 341-84332-60-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, ADJUSTING
198-84334-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, SETTING
3TB-8431R-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BODY, HEADLIGHT
4BE-84311-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, LAMP STAY
3TB-84372-01-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WING 1
3TB-84329-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90202-06013-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90468-12120-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL
3TB-84137-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#14
BOLT
97027-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06557-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COLLAR
90387-063E6-00
Superseded by 90387-06158-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-07391-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-14102-00
Superseded by 90480-14023-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
