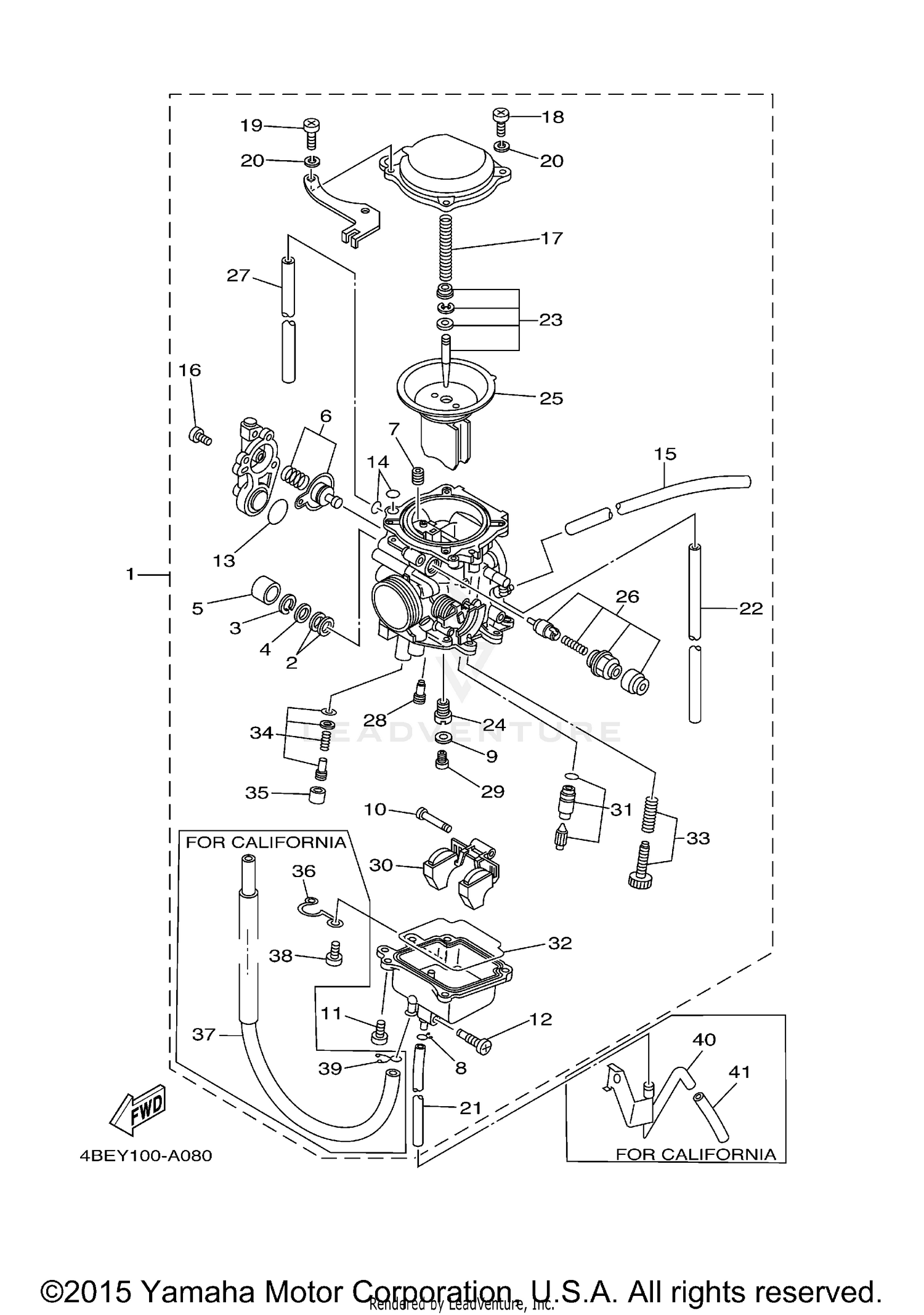

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
4BE-14901-30-00
|
$871.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSY 1
4BE-14901-20-00
|
$657.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL
2A2-14997-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP
812-14137-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
22F-14126-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
36X-14169-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIAPHRAGM SET 5
26H-1490H-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PILOT JET, AIR (1.4)
2A2-14172-14-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PILOT JET, AIR (1.2)
2A2-14172-12-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, PIPE
22F-14139-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, MAIN JET
137-14153-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN, FLOAT
537-14186-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW,PANHEAD
98507-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLUG, DRAIN
12R-14191-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING
558-14147-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
878-14147-00-00
Superseded by 93210-04230-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIPE
29U-14197-00-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
PIPE
3RW-14197-00-00
Superseded by 26H-14197-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,PANHEAD
1UY-14565-00-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
Unavailable |
|||
|
#17
SPRING, DIAPHRAGM
2LN-14933-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98506-04016-00
Superseded by 98507-04018-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98506-04018-00
Superseded by 98507-04018-00
|
$2.35 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92906-04100-00
Superseded by 92907-04100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE
4BE-14196-00-00
Superseded by 3XV-14348-20-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PIPE
10V-14196-00-00
Superseded by 3XV-14348-20-00
|
$22.99 | ||
|
Unavailable |
|||
|
#22
PIPE,AIRVENT
2LN-14197-00-00
Superseded by 3UH-14193-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NEEDLE SET
4BE-1490J-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NOZZLE, MAIN
4BE-14141-31-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DIAPHRAGM ASSY
2LN-14940-00-00
|
$141.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
STARTER SET
3RW-1410A-10-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE
29U-14197-00-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
Unavailable |
|||
|
#28
JET, PILOT (#40)
4G0-14142-40-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, MAIN (#125)
620-14231-25-00
Superseded by 620-14231-25-A0
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
FLOAT
2VA-14185-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NEEDLE VALVE SET
1UY-14107-20-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING
2LN-14147-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
THROTTLE SCREW SET
4BE-14103-00-00
|
|||
|
Unavailable |
|||
|
#34
PILOT SCREW SET
4BE-14105-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAP
3F9-14118-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CLIP
4BE-14919-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#37
HOSE
4BE-14987-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, PAN HEAD
98507-04014-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
PIPE
4BE-14193-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#41
HOSE (L200)
90445-07671-00
Superseded by 90445-07176-00
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
