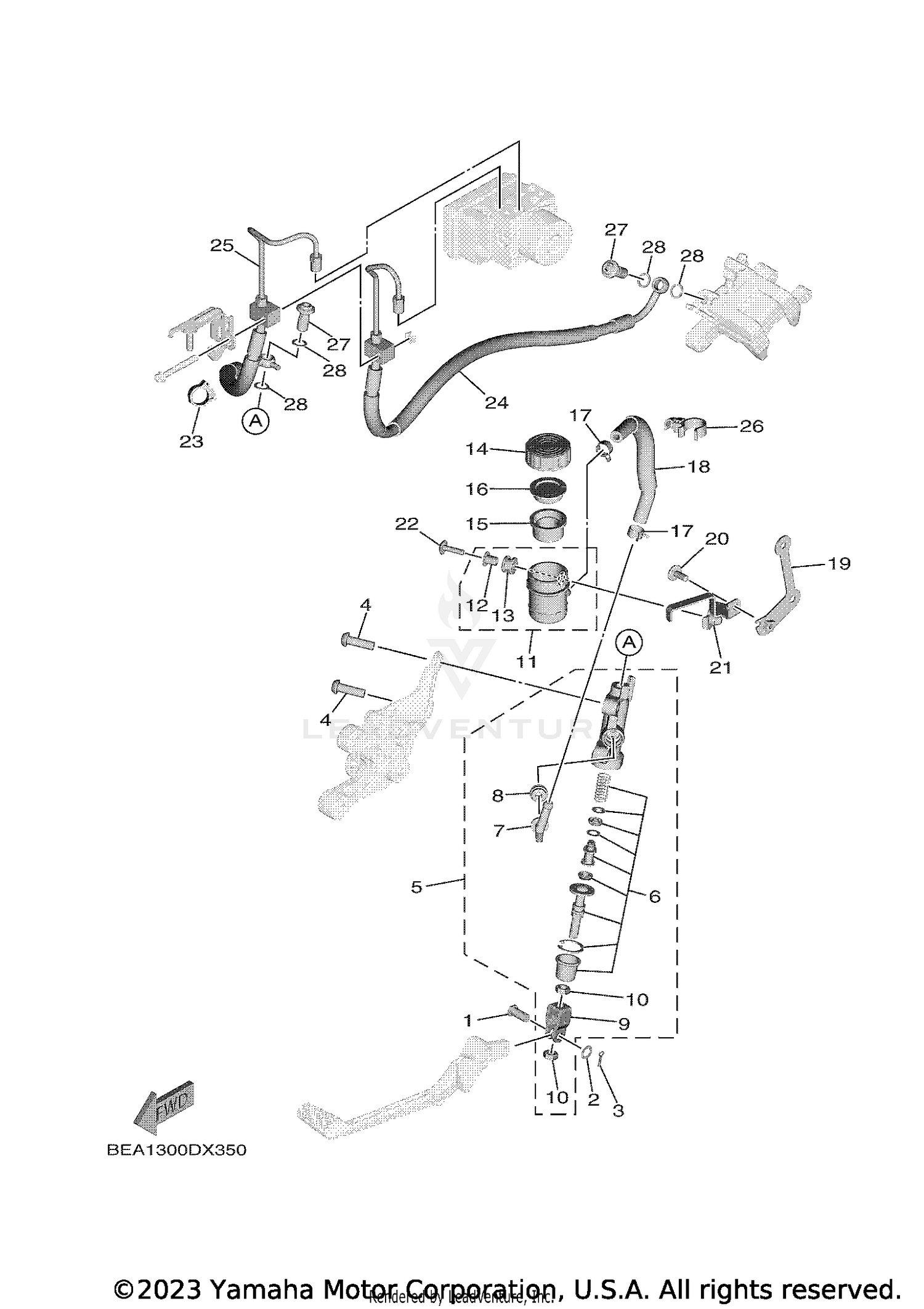

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, CLEVIS
90240-08005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
90201-08066-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, BUTTON HEAD
92017-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RR. MASTER CYLINDER ASSY.
BEA-2583V-00-00
Superseded by BEA-2583V-01-00
|
$140.99 | ||
|
Unavailable |
|||
|
#6
CYLINDER KIT, MASTER
56P-25808-50-00
Superseded by 5VX-25808-51-00
|
$103.99 | ||
|
Unavailable |
|||
|
#7
. .JOINT
2D1-2582A-00-00
Superseded by 2D1-2582A-01-00
|
$110.99 | ||
|
Unavailable |
|||
|
#8
O-RING
4BP-2585F-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT
4BP-27222-02-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90170-08010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, RESERVOIR
BAM-25894-50-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-05028-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
2C0-26326-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, RESERVOIR
2C0-25852-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIAPHRAGM, RESERVOIR
2VN-25854-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH, DIAPHRAGM
2VN-25855-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-12085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, RESERVOIR
BEA-25895-50-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
BRACKET, RESERVE TANK
BEA-21228-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. SOCKET BUTTON
90111-06095-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER, RESERVE TANK
BEA-2582E-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. SOCKET BUTTON
90111-05026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-16003-00
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, BRAKE 5
B5U-2581K-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE, BRAKE 4
BEA-2581J-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#26
CLAMP
90464-18013-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
