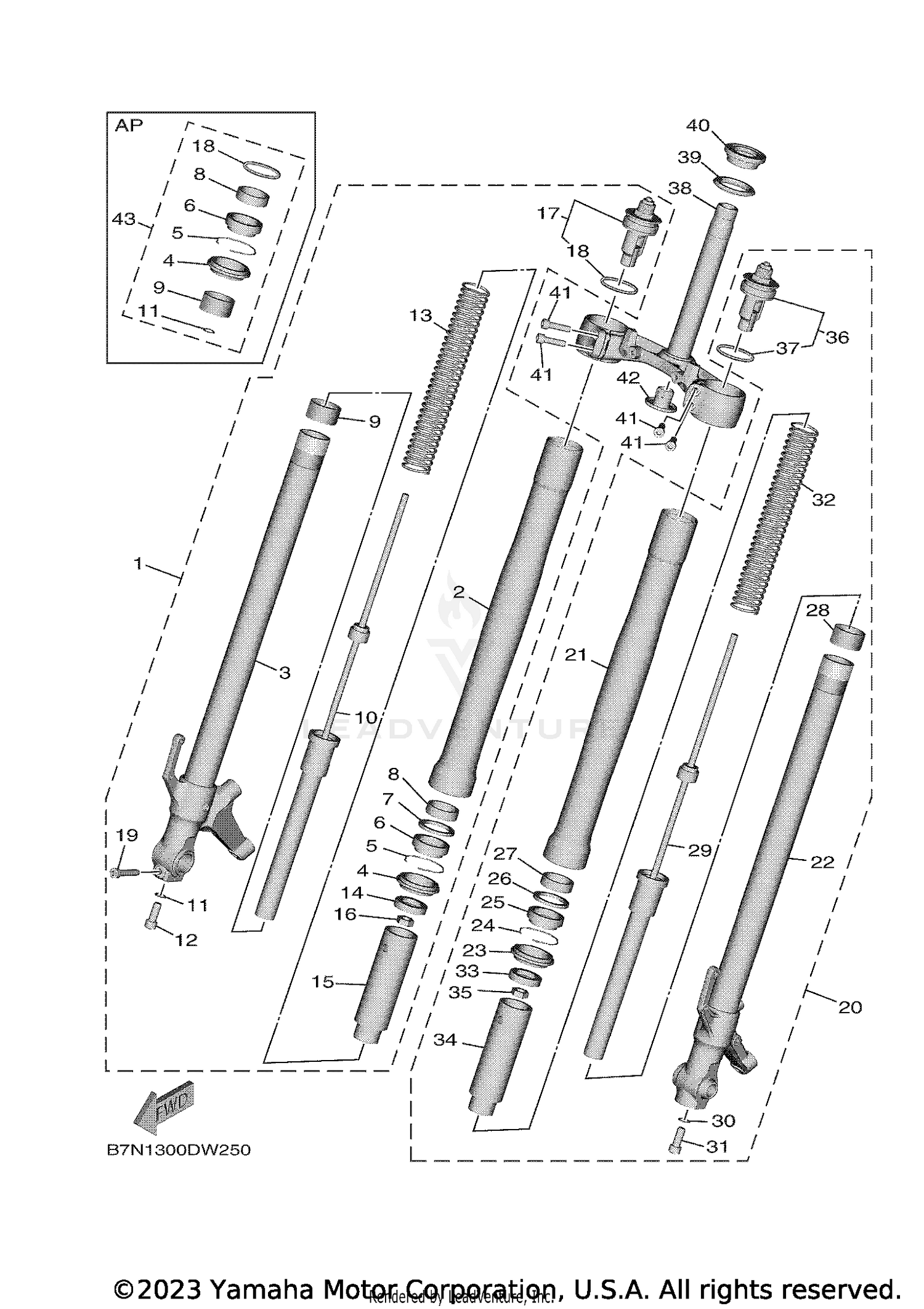

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (R.H)
BEA-23103-01-00
|
$1,180.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (L.H)
B7N-23126-10-00
|
$387.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
. .INNER TUBE COMP.2
B7N-23120-01-00
Superseded by BME-23120-00-00
|
$377.99 | ||
|
Unavailable |
|||
|
#4
SEAL, DUST
4EB-23144-00-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLIP, OIL SEAL
26H-23156-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
4EB-23145-01-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
36Y-23146-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
METAL, SLIDE 1
1RC-23125-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
METAL, SLIDE
4FM-23171-40-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
. .CYLINDER COMP., FRONT FORK
BEA-23170-10-00
|
$297.99 | ||
|
Unavailable |
|||
|
#11
GASKET
509-23158-L0-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
. .SPRING, FRONT FORK
BEA-23141-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#14
WASHER
5VY-12277-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
5VY-23118-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
3LC-23357-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
. .BOLT, CAP
BEA-23111-11-00
|
$322.99 | ||
|
Unavailable |
|||
|
#18
. . ..O-RING
3XJ-23147-L2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
FRONT FORK ASSY (L.H)
BEA-23102-01-00
|
$1,180.99 | ||
|
Unavailable |
|||
|
#21
TUBE, OUTER (L.H)
B7N-23126-10-00
|
$387.99 | ||
|
Unavailable |
|||
|
#22
. .INNER TUBE COMP.1
B7N-23110-01-00
|
$452.99 | ||
|
Unavailable |
|||
|
#23
SEAL, DUST
4EB-23144-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#24
CLIP, OIL SEAL
26H-23156-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
OIL SEAL
4EB-23145-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#26
WASHER, OIL SEAL
36Y-23146-10-00
|
$30.99 | ||
|
Unavailable |
|||
|
#27
METAL, SLIDE 1
1RC-23125-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#28
METAL, SLIDE
4FM-23171-40-00
|
$25.99 | ||
|
Unavailable |
|||
|
#29
. .CYLINDER COMP., FRONT FORK
BEA-23170-00-00
|
$297.99 | ||
|
Unavailable |
|||
|
#30
GASKET
509-23158-L0-00
|
$17.99 | ||
|
Unavailable |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#32
. .SPRING, FRONT FORK
BEA-23141-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#33
WASHER
5VY-12277-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#34
SPACER
5VY-23118-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#35
NUT
3LC-23357-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#36
. .BOLT, CAP
BEA-23111-01-00
|
$322.99 | ||
|
Unavailable |
|||
|
#37
. . ..O-RING
3XJ-23147-L2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#38
UNDER BRACKET COMP
B7N-23340-00-00
|
$398.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SEAL, STEERING
3FV-23462-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BEARING
93399-99957-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER, LOWER 1
4KM-23123-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
FORK SEALS KIT
BEA-W003B-00-00
|
$63.99 | ||
|
Unavailable |
|||
