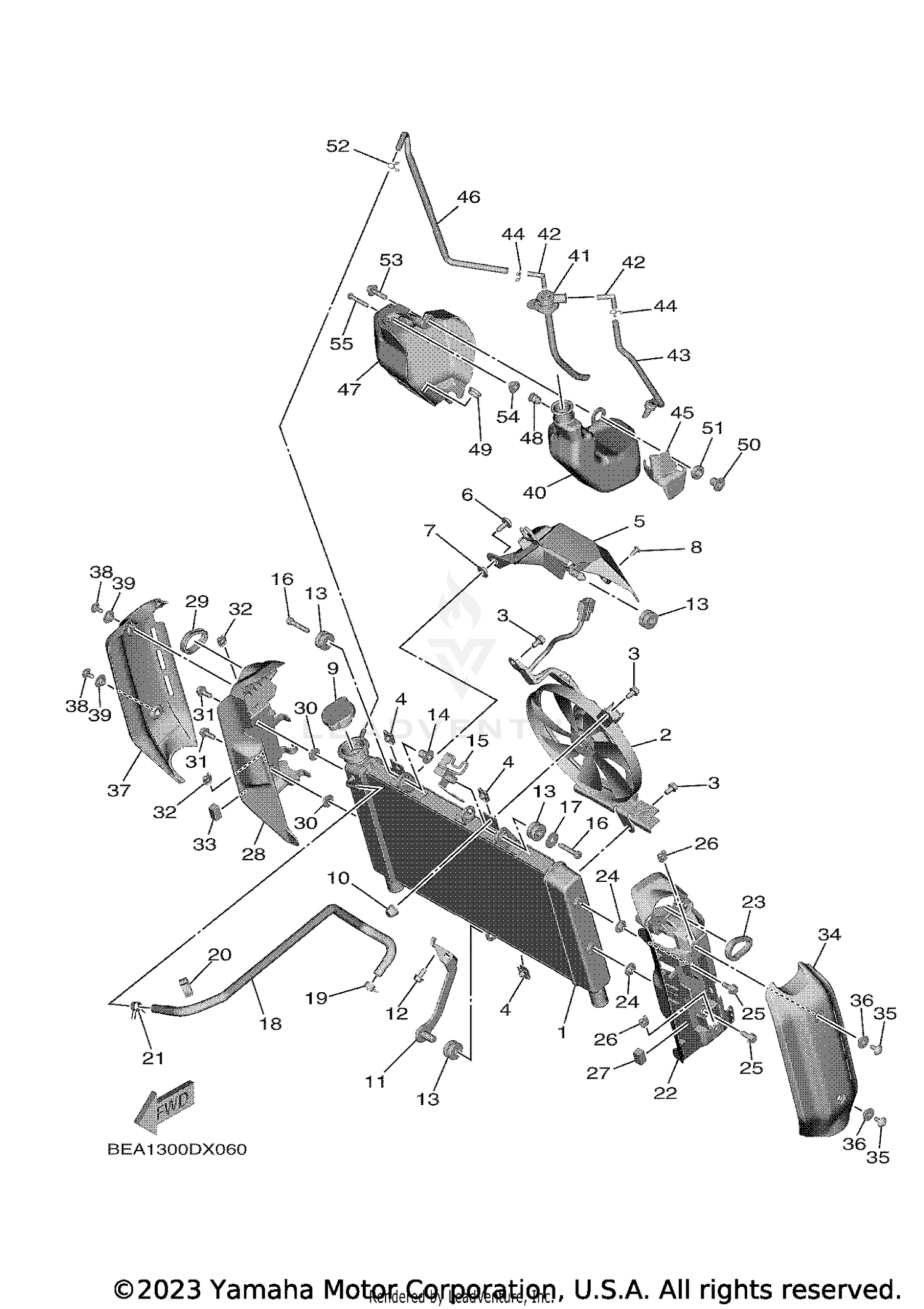

Radiator & Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR COMP
B7N-12461-00-00
|
$348.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BLOWER ASSY
B7N-12405-00-00
Superseded by BME-12405-01-00
|
$372.99 | ||
|
Unavailable |
|||
|
#3
BOLT, BLOWER HOLDING
5GJ-12675-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT 1
5YP-E2671-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER RADIATOR
B7N-12467-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEX. SOCKET BUTTON
90111-06161-00
Superseded by 90111-06151-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COLLAR
90387-07717-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIVET
90269-05005-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CAP, RADIATOR
5SL-12462-00-00
Superseded by 5SL-12462-01-00
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CAP, GREASE NIPPLE
663-45119-01-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY 2
B7N-12638-00-00
Superseded by B7N-12638-01-00
|
$23.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE DEEP RECESS
95D32-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-15363-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COLLAR
90387-06158-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, CABLE 2
B7N-26132-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
91342-06030-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-06033-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
HOSE 1
B7N-1243A-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-10039-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-16003-00
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-10039-00
|
$10.49 | ||
|
Unavailable |
|||
|
#22
BRACKET 1
BEA-2175T-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#23
DAMPER, FLASHER 1
B7N-83321-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-06170-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-06174-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
DAMPER 8
2C0-2847N-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET 2
BEA-2175U-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#29
DAMPER, FLASHER 1
B7N-83321-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#30
COLLAR
90387-06170-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
90105-06174-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
Unavailable |
|||
|
#32
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Unavailable |
|||
|
#33
DAMPER 8
2C0-2847N-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#34
COVER, SIDE 5
BEA-2171E-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#35
BOLT, HEX. SOCKET BUTTON
90111-05055-00
Superseded by 90111-05051-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
90387-05035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, SIDE 6
BEA-2171X-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#38
BOLT, HEX. SOCKET BUTTON
90111-05055-00
Superseded by 90111-05051-00
|
$2.50 | ||
|
Unavailable |
|||
|
#39
COLLAR
90387-05035-00
|
$8.49 | ||
|
Unavailable |
|||
|
#40
TANK, RECOVERY
1RC-21871-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CAP
B7N-21875-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
ELBOW
1RC-21828-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIPE, BREATHER
B7N-21826-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
PROTECTOR 1
B7N-22825-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIPE 1
B7N-21816-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
COVER
1RC-2172W-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT
90179-05523-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
GROMMET
90480-13203-00
Superseded by 90480-14153-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
COLLAR
90387-06285-00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#51
COLLAR
1RC-21749-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#52
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Unavailable |
|||
|
#53
BOLT, HEXAGON SOCKET HEAD
90110-06434-00
Superseded by 90110-06233-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
COLLAR
1RC-21748-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, BUTTON HEAD
92012-05030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
