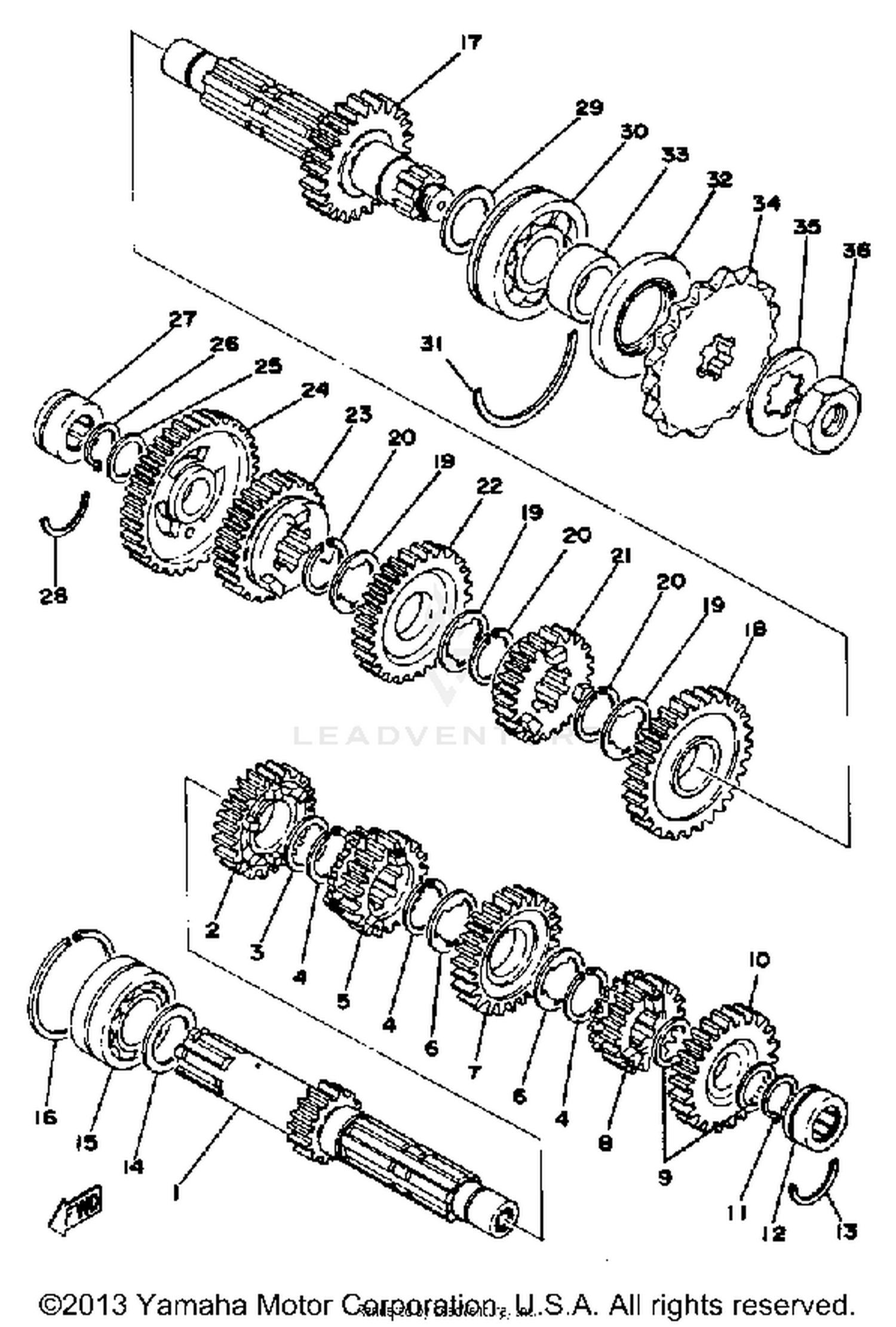

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSEMBLY
1L9-17401-00-00
|
$67.51 | ||
|
Unavailable |
|||
|
#2
GEAR, 4TH PINION
1L9-17141-00-00
|
$27.76 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
1L9-17131-00-00
|
$32.12 | ||
|
Unavailable |
|||
|
#6
WASHER, SPEC'L SHAPE
90209-21105-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 6TH PINION
1L9-17161-00-00
|
$25.04 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION
1A1-17121-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE (T=1.0)
90201-20266-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 5TH PINION
1L9-17151-00-00
|
$31.56 | ||
|
Unavailable |
|||
|
#11
CIRCLIP
99009-20400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BEARING, CYL.#11
93311-22027-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP, INNER
93450-32042-00
|
$5.99 | ||
|
Unavailable |
|||
|
#14
SHIM 2
168-17428-01-05
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.99 | ||
|
Unavailable |
|||
|
#15
BEARING
93305-20502-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
93440-52009-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DRIVE AXLE ASSEMBLY
1L9-17420-00-00
|
$68.84 | ||
|
Unavailable |
|||
|
#18
GEAR, 2ND WHEEL
1L9-17221-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#19
WASHER, SPEC'L SHAPE
90209-21105-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
Unavailable |
|||
|
#21
GEAR, 6TH WHEEL
1L9-17261-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#22
GEAR, 3RD WHEEL
1L9-17231-00-00
|
$15.62 | ||
|
Unavailable |
|||
|
#23
GEAR, 4TH WHEEL
1L9-17241-00-00
|
$19.42 | ||
|
Unavailable |
|||
|
#24
1ST WHEEL GEAR
1L9-17211-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE (T=1.0)
90201-20266-00
|
$10.49 | ||
|
Unavailable |
|||
|
#26
CIRCLIP
99009-20400-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
BEARING, CYL.#11
93311-42045-00
|
$32.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP 2
278-17425-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHIM 2
168-17428-01-05
|
$5.99 | ||
|
Unavailable |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$5.99 | ||
|
Unavailable |
|||
|
#30
BEARING
93306-30506-00
Superseded by 93306-30504-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCLIP 1
278-17424-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL, SD-TYPE
93102-35109-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-25192-00
Superseded by 90387-253M9-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPROCKET, DRIVE 16T
93854-16108-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, LOCK
90215-21239-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
NUT, SPEC'L SHAPE
90179-18020-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
