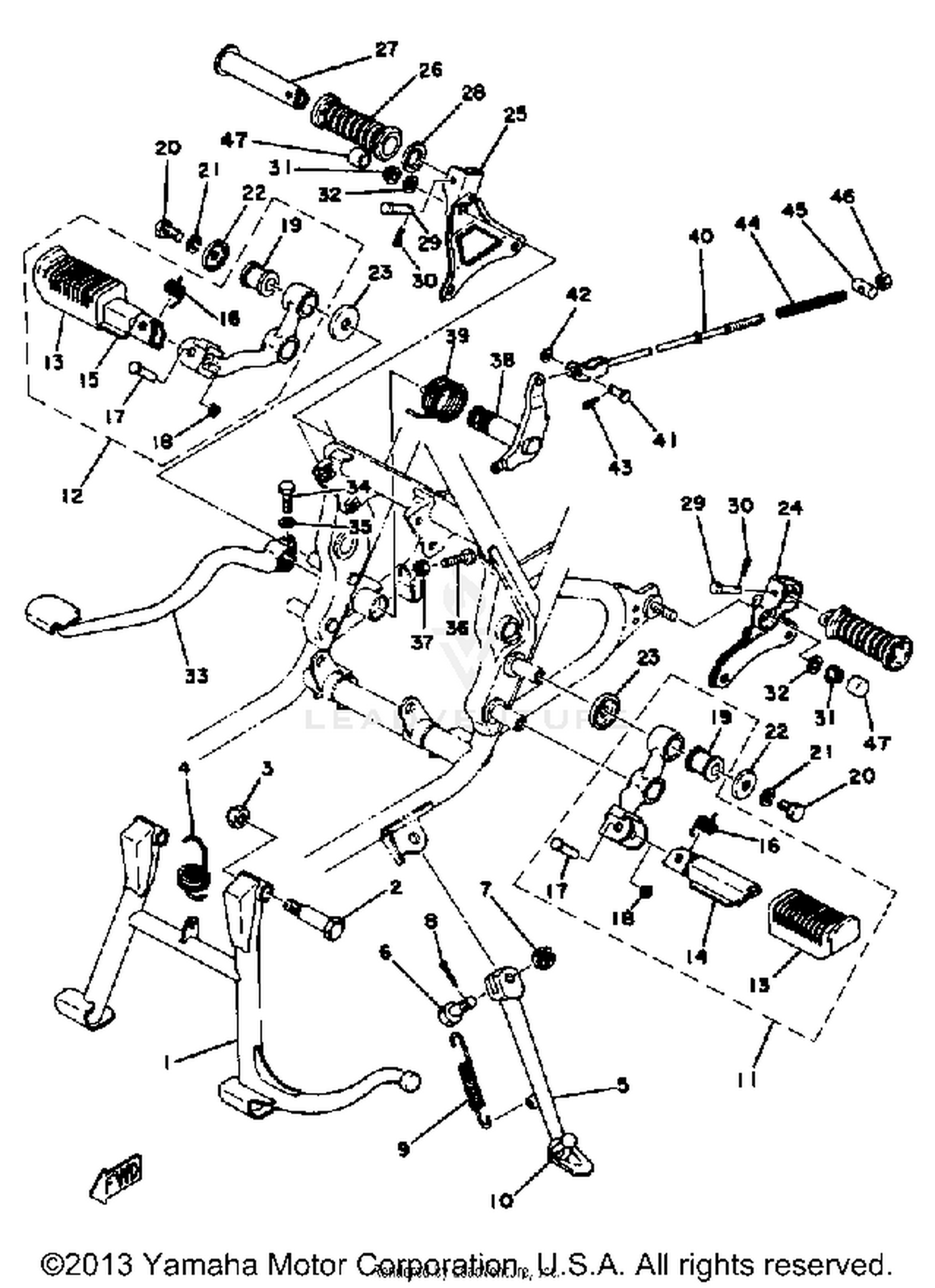

Stand Footrest Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
1L9-27311-02-00
|
|||
|
Unavailable |
|||
|
#2
BOLT
90109-10221-00
Superseded by 90109-10440-00
|
$8.99 | ||
|
Unavailable |
|||
|
#3
NUT, U
95601-10100-00
Superseded by 95617-10100-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SPRING, TENSION
90506-45063-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
STAND, MAIN
1L9-27311-02-33
|
$68.99 | ||
|
Unavailable |
|||
|
#6
BOLT
90102-10006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, CASTLE
90171-10012-00
Superseded by 90171-10049-00
|
$2.90 | ||
|
Unavailable |
|||
|
#8
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-26270-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
STOPPER
278-27314-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#11
FRONT FOOTREST ASSEMBLY L
3F9-27410-00-33
|
$63.99 | ||
|
Unavailable |
|||
|
#12
FRT FOOTREST ASSEMBLY R
3F9-27420-00-33
Superseded by 4R4-27420-00-33
|
$56.99 | ||
|
Unavailable |
|||
|
#13
COVER, FOOTREST
1J7-27413-01-00
Superseded by 4L0-27423-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, FOOTREST
1A0-27423-00-00
|
|||
|
Unavailable |
|||
|
#14
FOOTREST
1T3-27451-00-00
Superseded by 3CK-27451-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FOOTREST
1T3-27461-00-00
Superseded by 3N6-27461-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#16
SPRING, TENSION
90508-20023-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
90243-08006-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-06042-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-20195-00
Superseded by 90480-20543-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
97321-08016-00
Superseded by 97013-08016-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92903-08100-00
Superseded by 92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90209-08150-00
|
$2.85 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90209-12157-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRKT REAR FTREST L
1L9-27432-00-00
Superseded by 99999-01090-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
STAY, MUFFLER
2L0-21445-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#
BRACKET
2L0-27442-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#
BRACKET
99999-01091-00
|
$17.49 | ||
|
Unavailable |
|||
|
#26
COVER, REAR FOOTREST
120-27433-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
FOOTREST, REAR 1
465-27431-00-00
Superseded by 2GV-27431-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-20279-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, WITH HOLE
90240-06042-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, COTTER
91401-16015-00
Superseded by 91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, WITH WASHER
95701-10100-00
Superseded by 95704-10500-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WASHER, SPRING
92903-10100-00
Superseded by 92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
PEDAL, BRAKE
1L9-27211-00-R4
Superseded by 1L9-27211-00-93
|
$62.99 | ||
|
Unavailable |
|||
|
#34
BOLT,HEXAGON
97321-06030-00
Superseded by 97017-06030-00
|
$3.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
BOLT
97321-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, HEXAGON
90153-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT
90170-06184-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
SHAFT, BRAKE PEDAL
1L9-27212-00-00
|
$14.62 | ||
|
Unavailable |
|||
|
#39
SPRING, TORSION
90508-35315-00
|
$5.49 | ||
|
Unavailable |
|||
|
#40
ROD, BRAKE
1L9-27231-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#41
PIN, CLEVIS
90240-06006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT
90179-06176-00
Superseded by 90179-06411-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
CAP, TOOL BOX
262-21399-00-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
