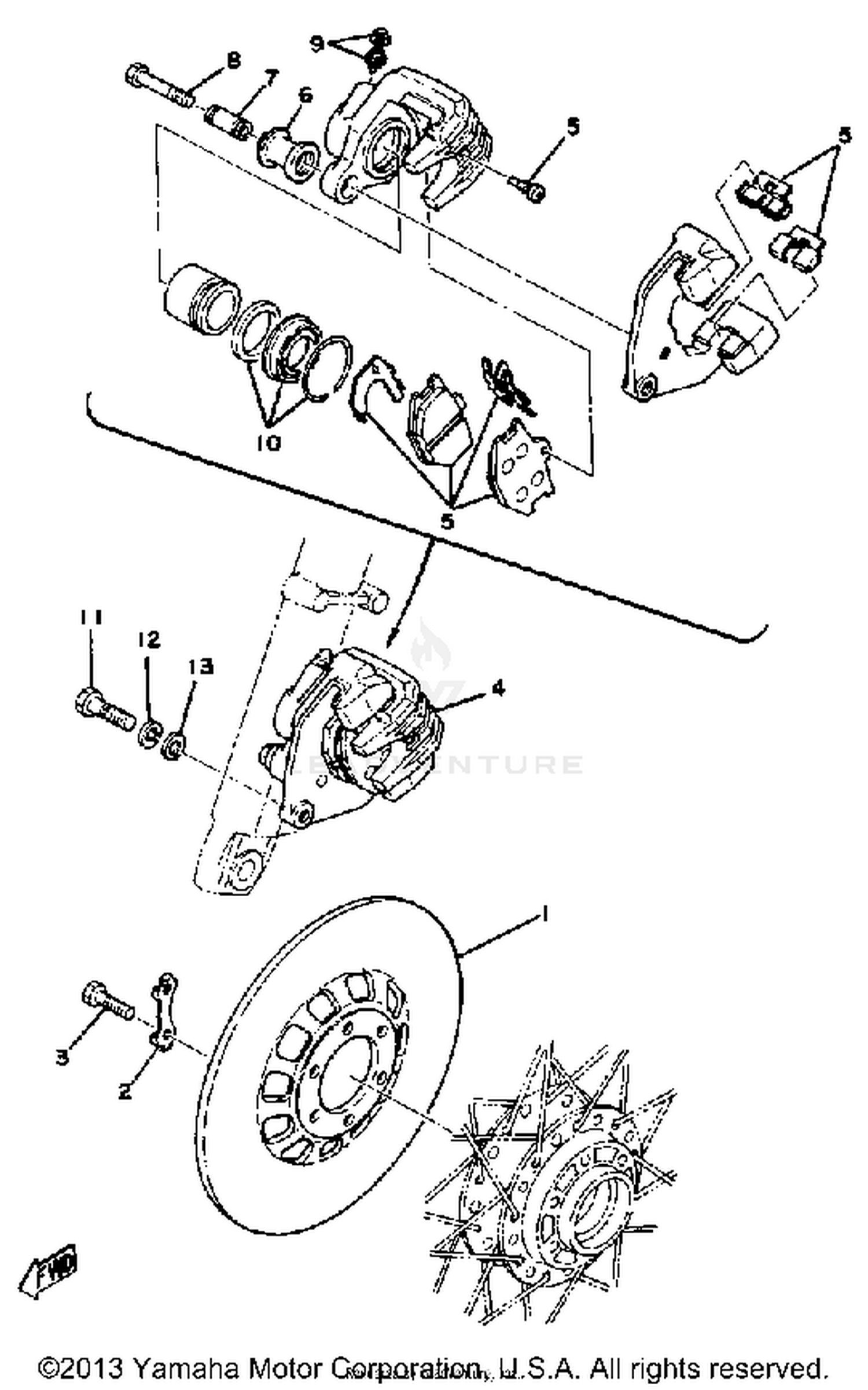

Disc Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
1L9-25831-00-00
|
$316.99 | ||
|
Unavailable |
|||
|
#2
WASHER, LOCK
1J3-25834-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90101-08312-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSEMBLY
1L9-25810-03-00
|
$205.99 | ||
|
Unavailable |
|||
|
#5
BRAKE PAD KIT,FRNT
4K0-W0045-01-00
Superseded by 4K0-W0045-02-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT, CALIPER
1J3-25917-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SLEEVE, CALIPER
1J3-25838-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WASHER BASED
90105-08145-00
|
$8.99 | ||
|
Unavailable |
|||
|
#9
CALIPER SEAL KIT
1J3-W0047-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CALIPER SEAL KIT
1J3-W0047-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
90105-10638-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
