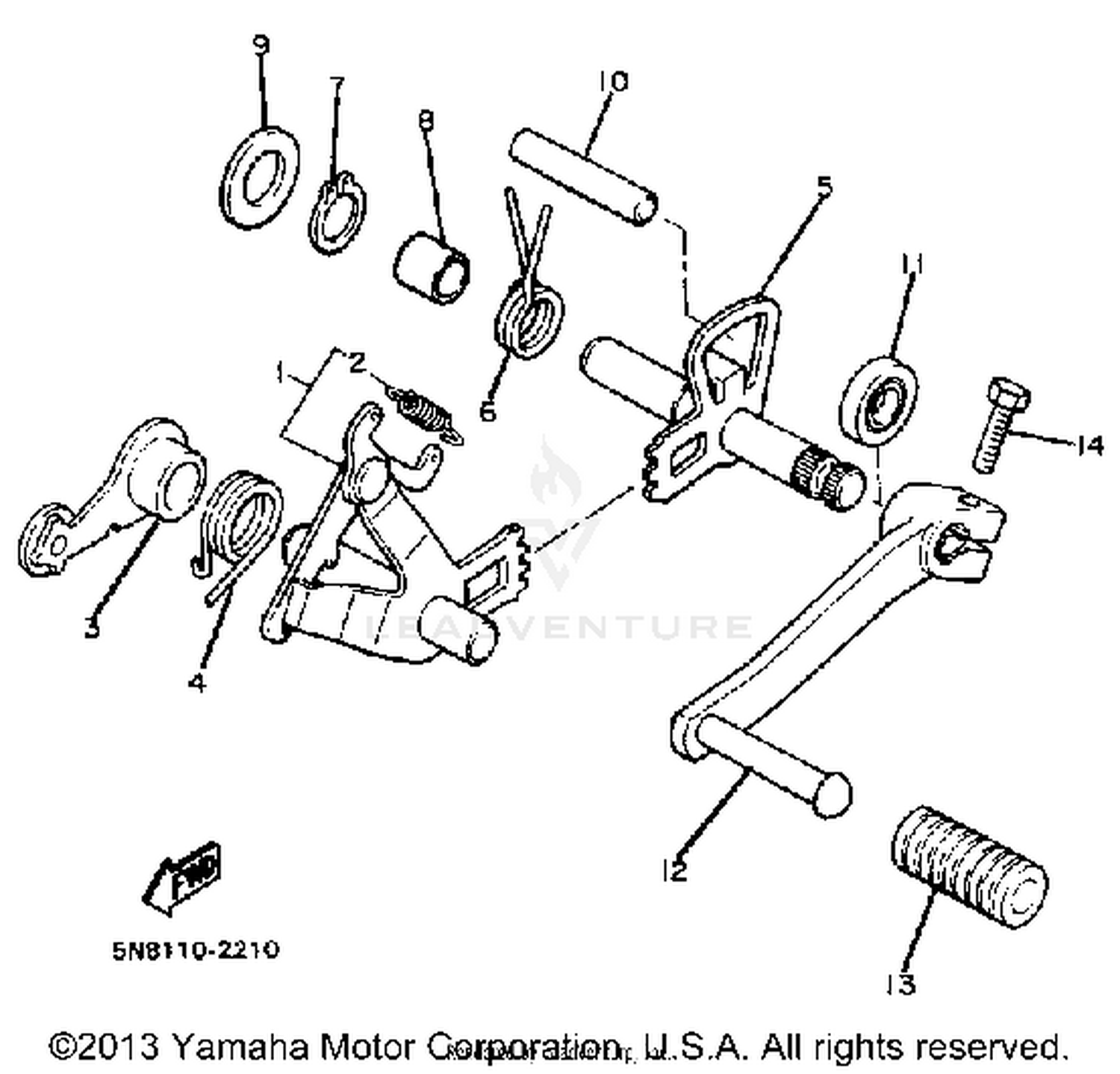

Shift Shaft Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT SHAFT ASSEMBLY.1
4H7-18101-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90506-08227-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER LEVER ASSEMBLY
4H7-18140-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#4
SPRING, TORSION
90508-29530-00
|
$4.90 | ||
|
Unavailable |
|||
|
#5
SHIFT LEVER ASSEMBLY
4H7-18120-02-00
|
$52.99 | ||
|
Unavailable |
|||
|
#6
SPRING, TORSION
90508-32535-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99006-10600-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
COLLAR
90387-124F4-00
Superseded by 90387-12033-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-12166-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93608-50158-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-12321-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PEDAL, SHIFT
4H7-18111-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#13
COVER, SHIFT PEDAL
132-18113-01-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
