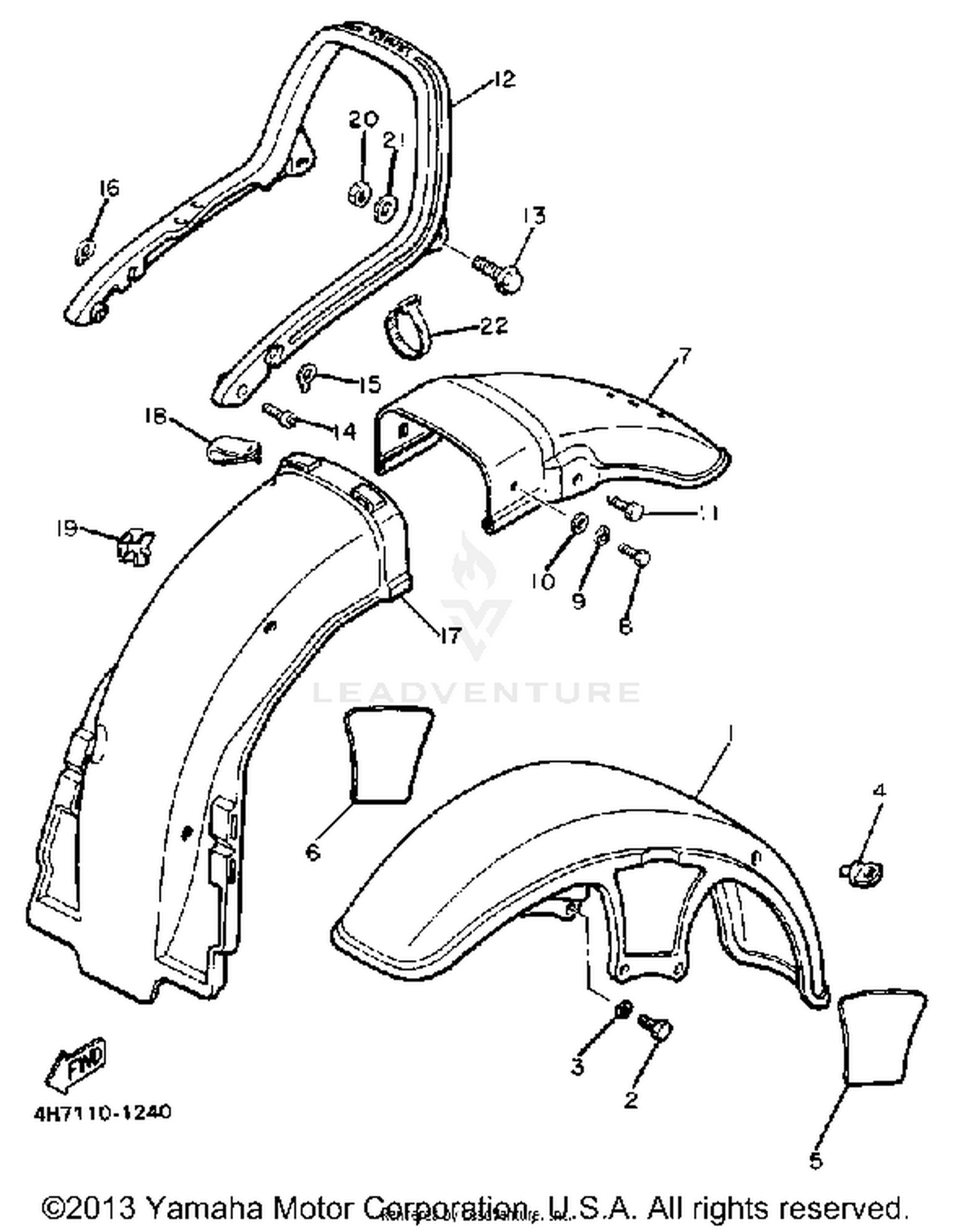

Front Fender Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
4H7-21510-01-93
|
$108.99 | ||
|
Unavailable |
|||
|
#2
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, CABLE
1A0-21518-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL 1
4H7-21575-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
SEAL 2
4H7-21576-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#7
FENDER, REAR
4X7-21610-01-93
|
$150.99 | ||
|
Unavailable |
|||
|
#8
BOLT
97013-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT,WITH WASHER
97023-10035-00
Superseded by 97070-10035-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, REAR
4H7-21645-00-00
|
$195.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91311-08030-00
Superseded by 91314-08030-00
|
$2.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER 1
4H7-22243-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#16
WASHER 2 (4H7-22244-00)
4W5-22244-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#17
GUARD, MUD
4H7-21629-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#18
CLAMP
90464-12027-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-16021-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95311-10600-00
Superseded by 95314-10600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-10200-00
|
$3.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BAND, SWITCH CORD
J45-83936-00-00
Superseded by 437-83936-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
