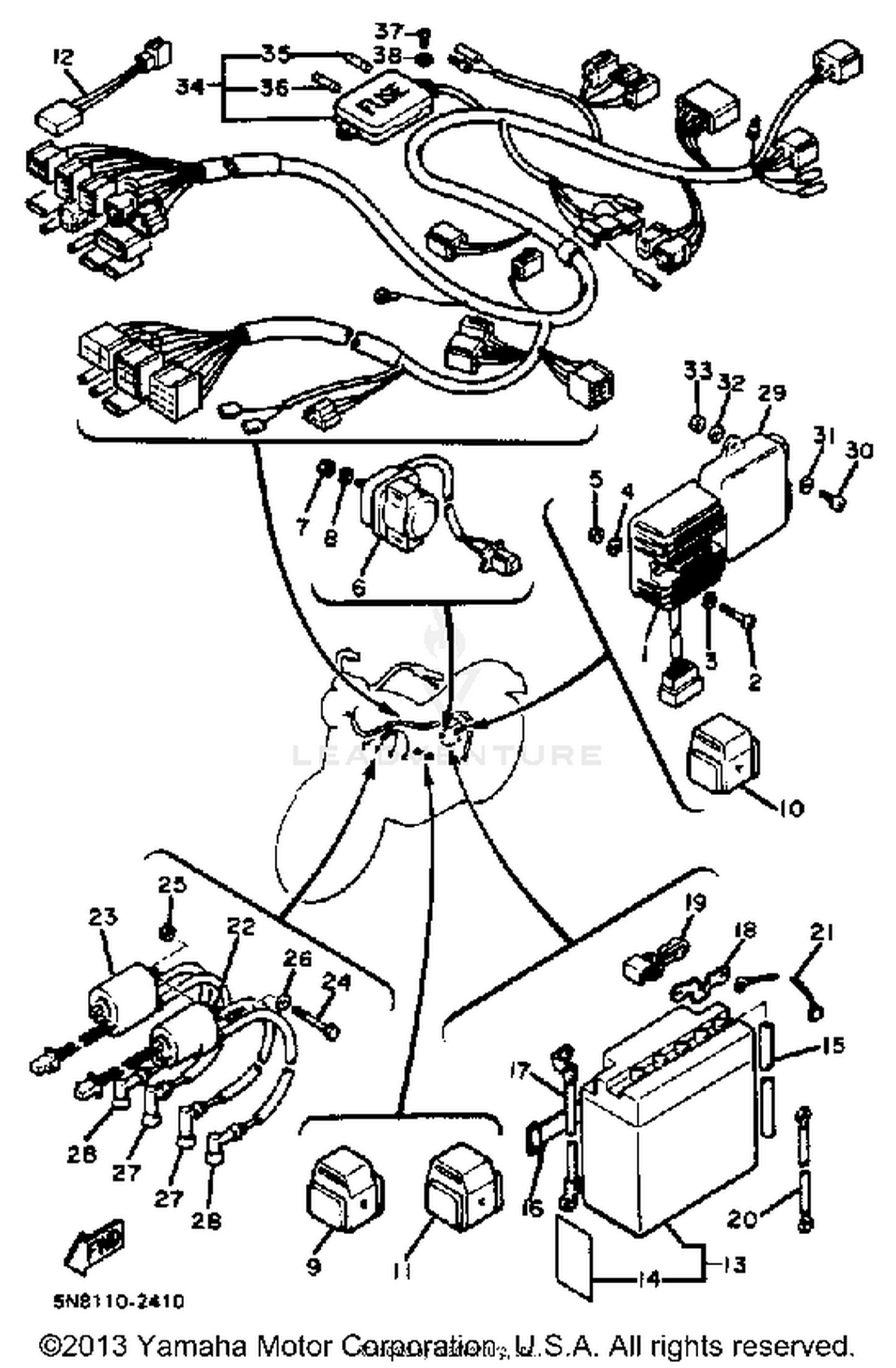

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER/REG ASSEMBLY
12R-81960-A1-00
Superseded by 3G1-81960-A1-00
|
$271.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
NUT
95380-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STARTER RELAY ASSY (MS5D-611)
3AY-81940-00-00
Superseded by 4KD-81940-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95380-06700-00
|
$9.49 | ||
|
Unavailable |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#9
RELAY ASSY (3H5-00)
3H5-81950-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY ASSY
12R-81950-01-00
Superseded by 12R-81950-02-00
|
$76.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$101.99 | ||
|
Unavailable |
|||
|
#12
DIODE ASSY
4U8-81980-M0-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
12N12A-4A-1 YUASA B
BTY-12N12-A4-A1
Superseded by 12N-12A4A-1Y-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
|
#15
PIPE
90445-08336-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BAND, BATTERY
26H-82131-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE, MINUS LEAD
4H7-82116-00-00
|
$17.14 | ||
|
Unavailable |
|||
|
#18
TERMINAL 1
4H7-82103-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#19
COVER, LEAD WIRE
4H7-82119-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#20
WIRE, EARTH LEAD
4H7-82519-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#21
WIRE, PLUS LEAD
4H7-82115-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#22
IGNITION COIL ASY
4H7-82310-61-00
Superseded by 4G0-82310-09-00
|
$266.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
IGNITION COIL ASY
4H7-82320-61-00
Superseded by 4G0-82310-09-00
|
$266.99 | ||
|
Unavailable |
|||
|
#24
BOLT
97021-06080-00
Superseded by 97027-06080-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG CAP ASSEMBLY
1J7-82370-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG CAP ASSY
256-82370-00-00
Superseded by 4BP-82370-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
IGNITOR UNIT ASSEMBLY 1
5G2-82305-10-00
|
$609.99 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#32
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#33
NUT
95380-06700-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
WIRE HARNESS ASSEMBLY
5N8-82590-50-00
|
$252.99 | ||
|
Unavailable |
|||
|
#35
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
FUSE (12V-20A)
1A0-82161-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
|
$0.60 | ||
|
Unavailable |
|||
|
#38
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
