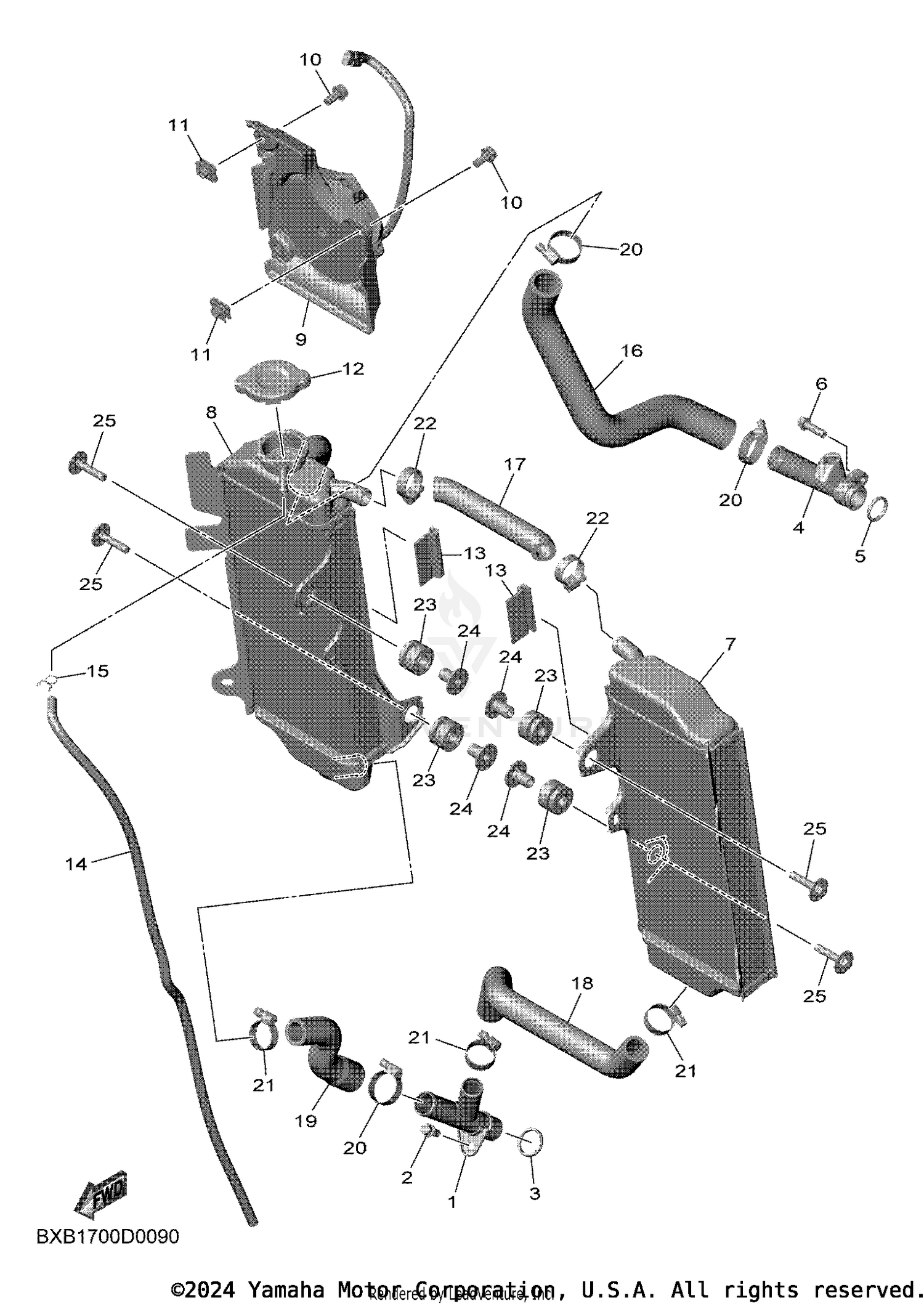

Radiator & Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE 2
1SL-12482-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE DEEP RECESS
95E32-06012-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-16500-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT
1SM-12446-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-16275-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, FLANGE DEEP RE
95E32-06020-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
RADIATOR ASSY
BHR-1240A-00-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RADIATOR COMP
BNK-12461-00-00
|
$254.99 | ||
|
Unavailable |
|||
|
#9
BLOWER ASSY
BNK-12405-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
2GB-12615-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT 1
5SL-12671-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, RADIATOR
5SL-12462-00-00
Superseded by 5SL-12462-01-00
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
DAMPER, RADIATOR
33D-12465-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, BREATHER
BHR-12463-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#15
CLIP, SCISSOR
90467-08003-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HOSE 1
BXB-12576-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#17
HOSE 2
BR9-12577-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE 3
BMF-12578-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE 4
BMF-12579-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE CLAMP ASSY
90450-28001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE CLAMP ASSY
90450-25001-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HOSE CLAMP ASSY
90450-22001-00
Superseded by 90450-18M09-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-15012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-06065-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, WITH WASHER
90119-06262-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
