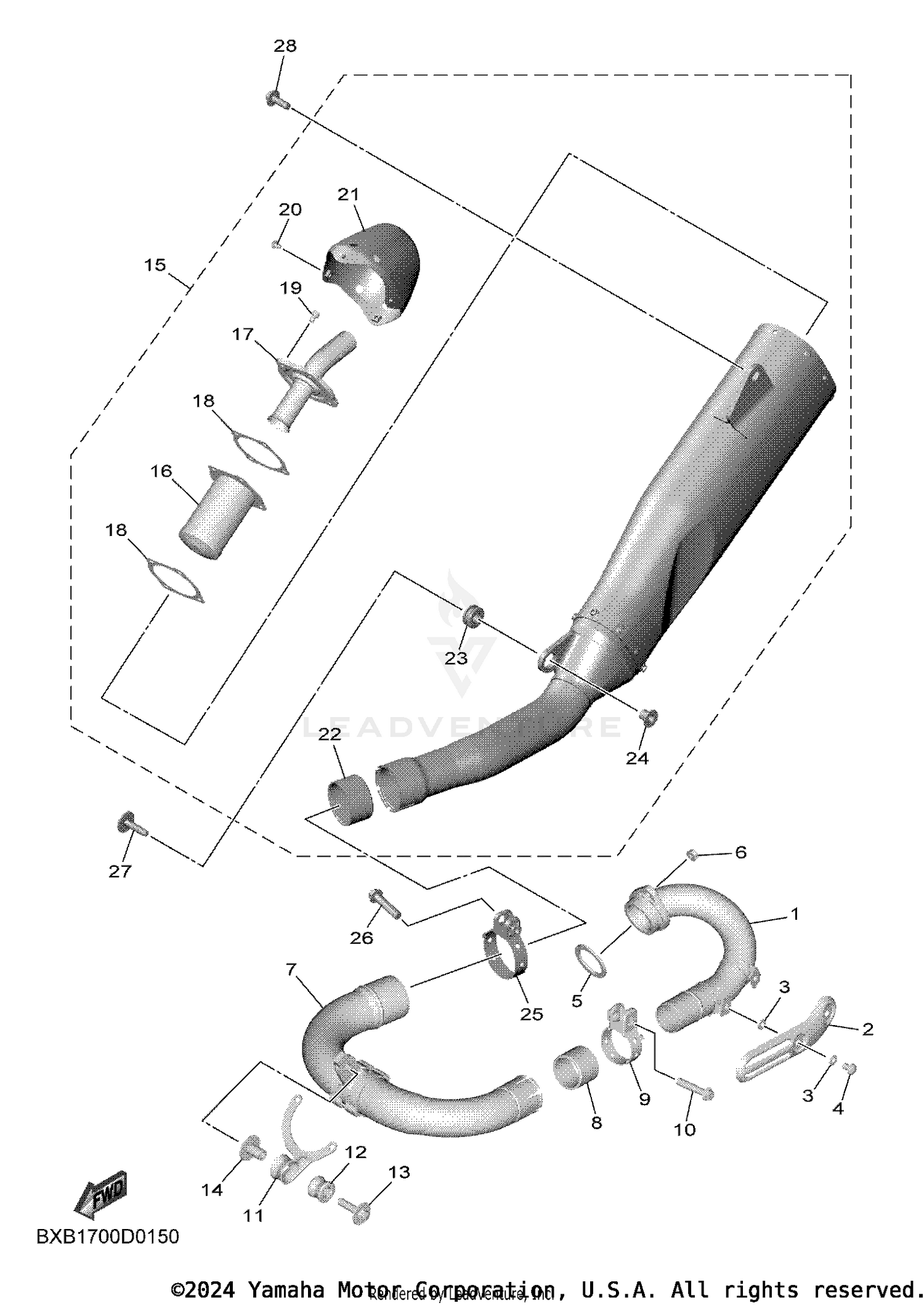

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
B7B-14611-01-00
|
$190.99 | ||
|
Unavailable |
|||
|
#2
PROTECTOR, EXHAUST PIPE
BHR-14628-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-05017-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BIND
BMF-14767-00-00
Superseded by 98980-06010-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GASKET, EXHAUST PIPE
5NL-14613-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT, FLANGE
95704-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIPE, EXHAUST 2
B7B-14621-00-00
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, SILENCER
19D-14755-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, SILENCER
B7B-14788-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE DEEP
95E34-08035-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, EXHAUST PIPE 1
B7B-14639-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, MUFFLER
5VY-14747-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-08174-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-08081-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
MUFFLER COMP.
BXB-14701-00-00
|
$1,306.99 | ||
|
Unavailable |
|||
|
#16
SPARK ARRESTER ASSY
5TJ-14780-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
. .PIPE, TAIL
BNK-14784-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#18
GASKET, EXHAUST PIPE
5TJ-14623-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
90110-05066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
92012-05008-00
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
. .CAP
BNK-14799-00-00
|
$198.99 | ||
|
Unavailable |
|||
|
#22
GASKET, MUFFLER
1SL-14714-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-20005-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-08110-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND, MUFFLER
BHR-14715-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE DEEP
95E34-08035-00
|
$2.85 | ||
|
Unavailable |
|||
|
#27
BOLT, WITH WASHER
90119-08177-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, WITH WASHER
90119-08170-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
