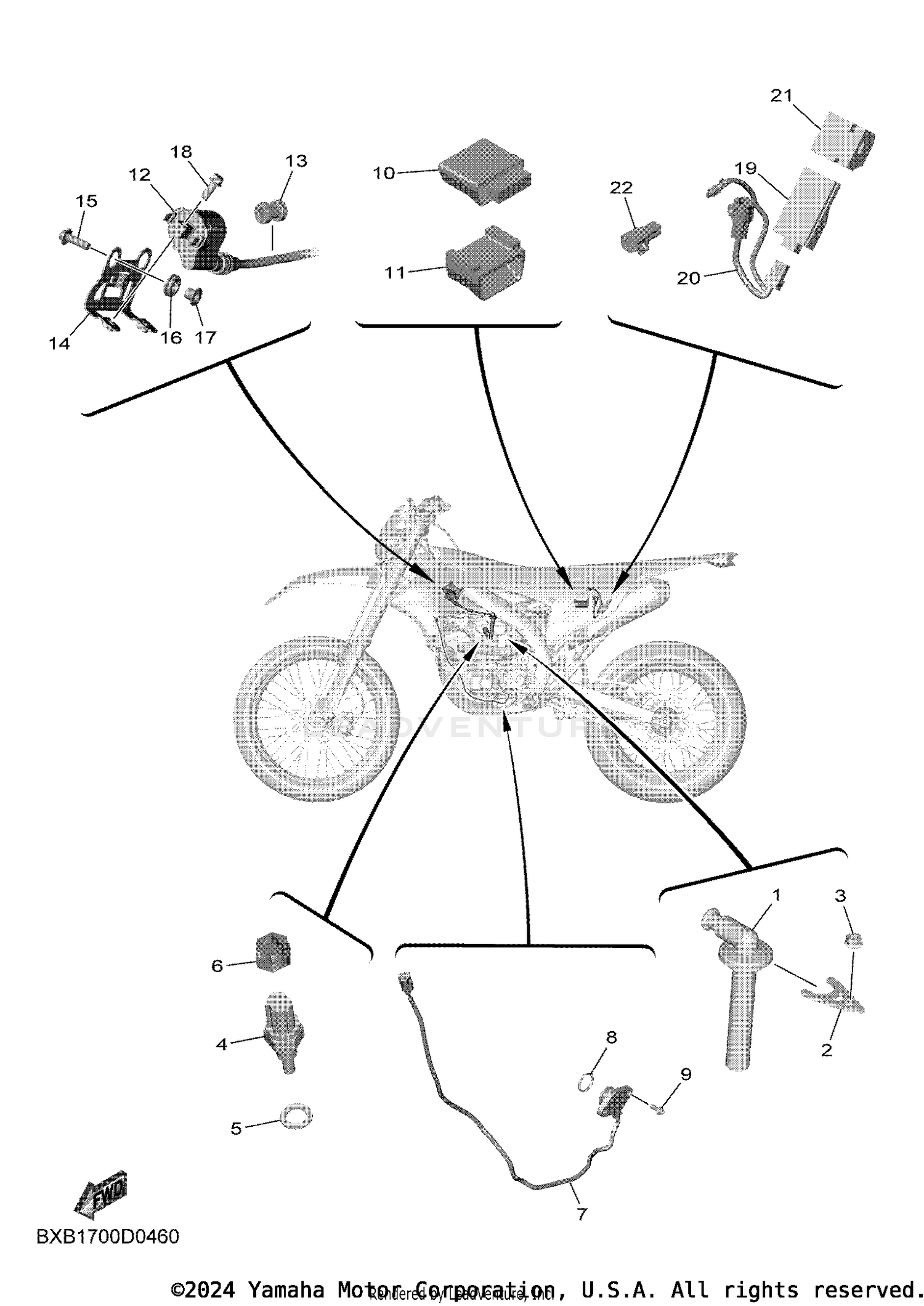

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLUG CAP ASSY
1SM-82370-01-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER
BR9-11395-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-10004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, LEVER UNDER
B2W-82915-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEUTRAL SWITCH ASSY
BXB-82540-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#8
O-RING
93210-21001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-05062-00
Superseded by 90110-05028-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
ENGINE CONTROL UNIT ASSY
BXB-8591A-10-00
Superseded by BXB-8591A-11-00
|
$479.99 | ||
|
Unavailable |
|||
|
#11
BAND
BHR-82155-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#12
IGNITION COIL ASSY
BHR-82310-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#13
GROMMET
90480-11015-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, IGNITION COIL
BHR-2194U-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
90105-06219-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-14477-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-06M79-00
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE DEEP RECESS
95E32-06016-00
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
COMMUNICATION CONT. UNIT ASSY
BHR-85810-02-00
Superseded by D03-85810-00-00
|
$886.99 | ||
|
Unavailable |
|||
|
#20
WIRE, LEAD
BNK-85721-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#21
BAND
BHR-85546-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#22
CONNECTOR
BHR-82378-00-00
|
$16.99 | ||
|
Unavailable |
|||
