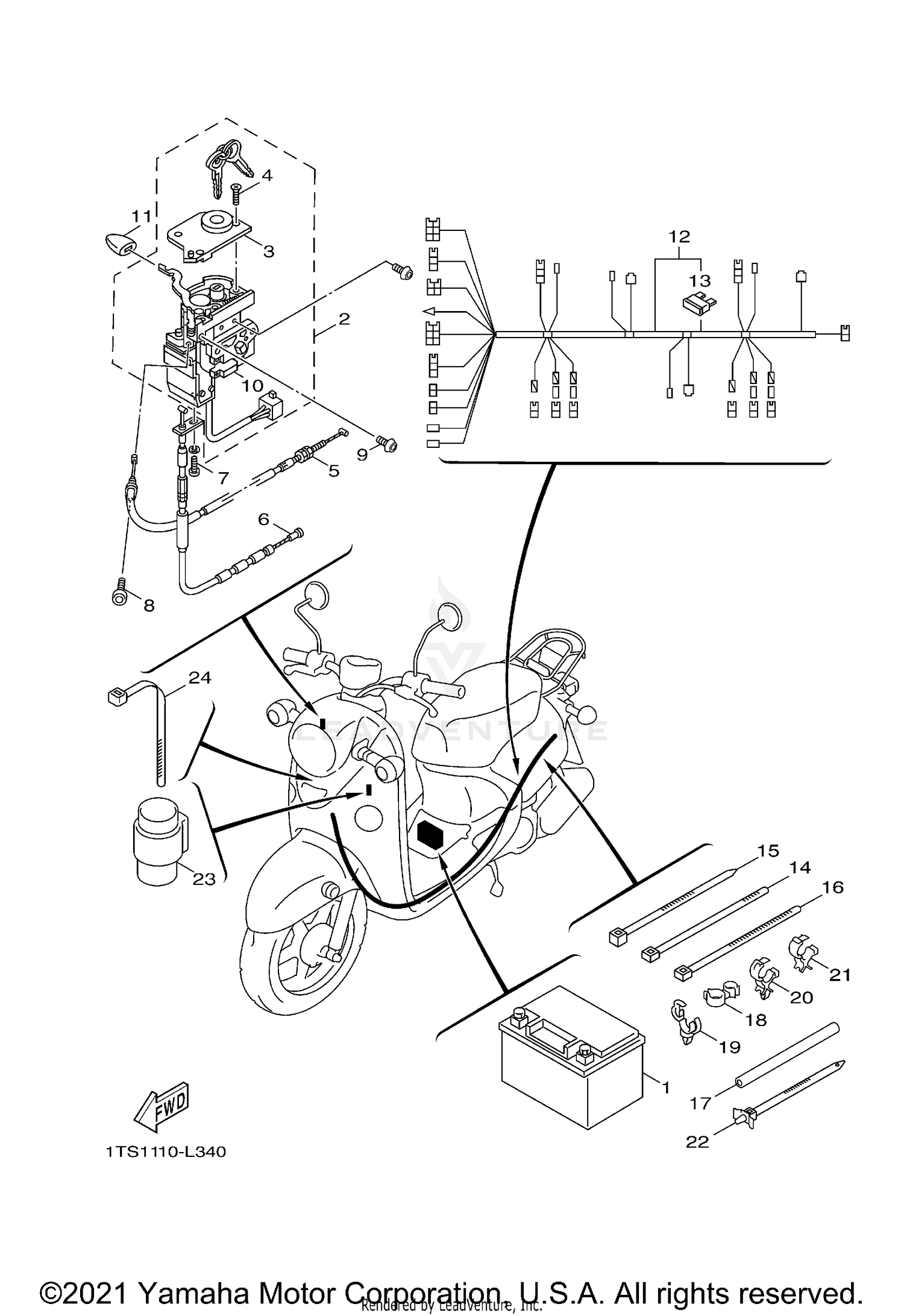

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YTX5LBS YUASA BATTE
5PJ-H2100-00-00
Superseded by YTX-5LBS0-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY SET
5ST-WH202-40-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CASE, UNIT 1
5ST-F831B-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, FLAT HEAD
98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CABLE, CONTROL 1
5ST-F637E-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, SEAT LOCK
5ST-F478E-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-05800-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
90149-06813-00
|
$0.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
90149-06814-00
|
$0.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
KNOB, 1
5SU-F836X-00-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE HARNESS ASSY
1TS-H2590-00-00
Superseded by 1TS-H2590-01-00
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE (15A)
5ML-H2151-10-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-12812-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND
90465-13152-00
Superseded by 1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90464-60800-00
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
PROTECTOR
1TS-F117G-00-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-17803-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-20803-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-16803-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-30801-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-20813-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
FLASHER RELAY ASSY
5XN-83350-00-00
Superseded by 5XN-83350-02-00
|
$44.99 | ||
|
Unavailable |
|||
|
#24
CLAMP
90464-25804-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
