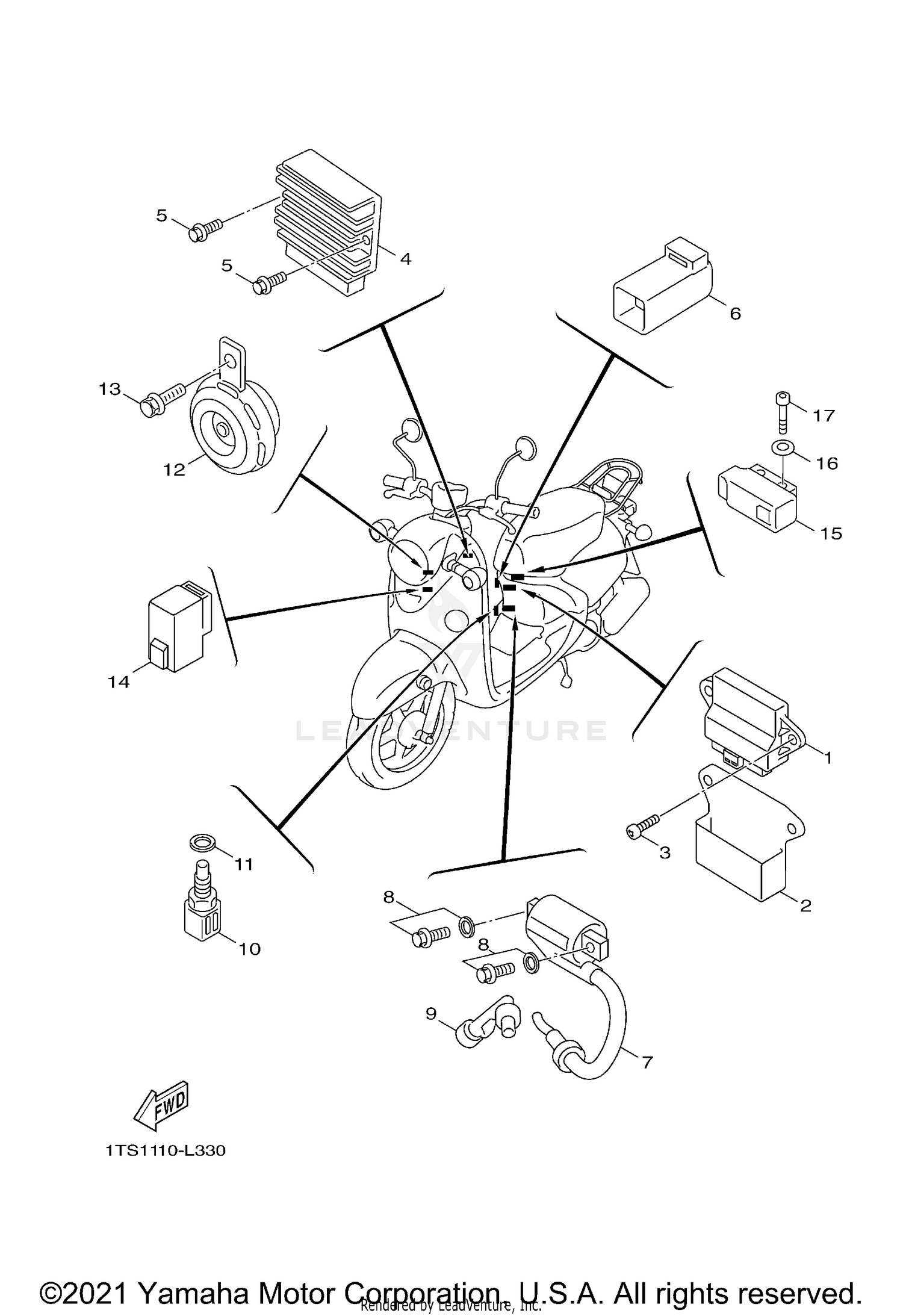

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CONTROL UNIT ASSY
1TS-H591A-00-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR
1TS-H1614-00-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RECTIFIER & REGULATOR ASSY
3B3-H1960-00-00
|
$415.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE (SMALL HEAD)
95023-06025-00
Superseded by 95024-06025-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
STARTER RELAY ASSY
5WC-H1940-00-00
Superseded by 5WC-H1940-02-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
IGNITION C
1P5-H2310-00-00
Superseded by 1P5-H2310-01-00
|
$87.99 | ||
|
Unavailable |
|||
|
#8
BOLT, WITH WASHER
97507-06525-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG CAP ASSY
1CD-H2370-00-00
Superseded by 1CD-H2370-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
THERMOSENSOR ASSY
5YP-85790-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-12172-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HORN
5ST-H3371-40-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
RELAY ASSY (4HC-00)
4HC-81950-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR, LEAN ANGLE
5VU-82576-01-00
Superseded by 5VU-82576-03-00
|
$105.99 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-04325-00
Superseded by 90201-04027-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. SOCKET HEAD
91317-04025-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
