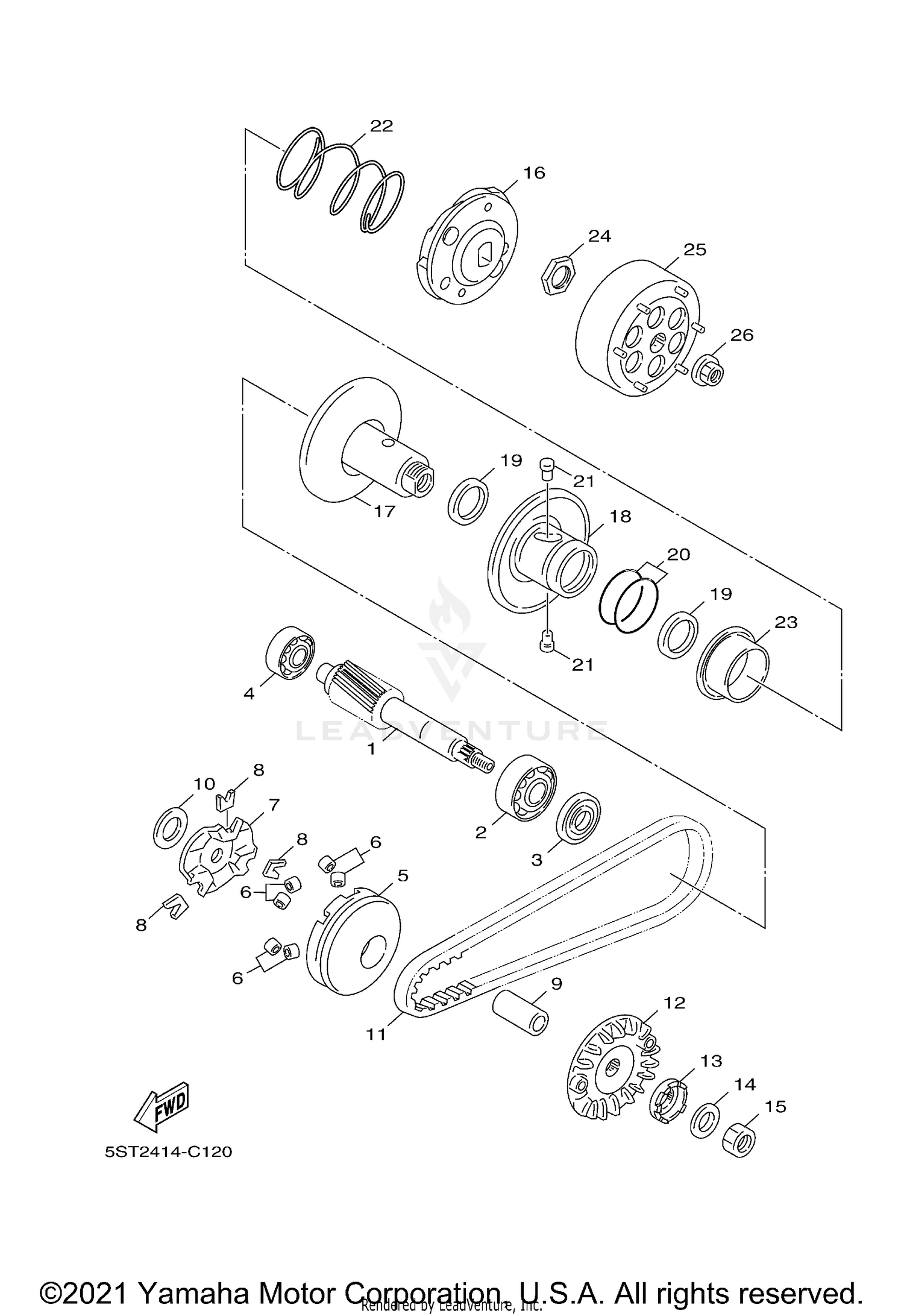

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
5ST-E6111-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-203YA-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-17806-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-200Y1-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
PRIMARY SLIDING SHEAVE COMP.
3XY-E7620-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WEIGHT
5ST-E7632-00-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM
5ST-E7623-00-00
|
$3.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SLIDER
5ST-E7653-00-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COLLAR
90387-13800-00
Superseded by 90387-13804-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-13801-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
V-BELT
5ST-E7641-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHEAVE, PRIMARY FIXED
5ST-E7611-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLUTCH, ONE WAY
3KJ-15657-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, CONICAL SPRING
90208-10012-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-10219-00
Superseded by 90170-10011-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLUTCH CARRIER ASSY
5ST-E6620-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SECONDARY FIXED SHEAVE COMP.
5SU-E7660-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SECONDARY SLIDING SHEAVE
5ST-E7670-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
5SU-E7465-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
5SU-E7465-10-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, GUIDE
5SU-E7664-00-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, COMPRESSION
5ST-E7683-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAT, SECONDARY SPRING
5SU-E7684-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
5SU-E7668-00-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLUTCH HOUSING COMP.
5ST-E6611-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-10609-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
