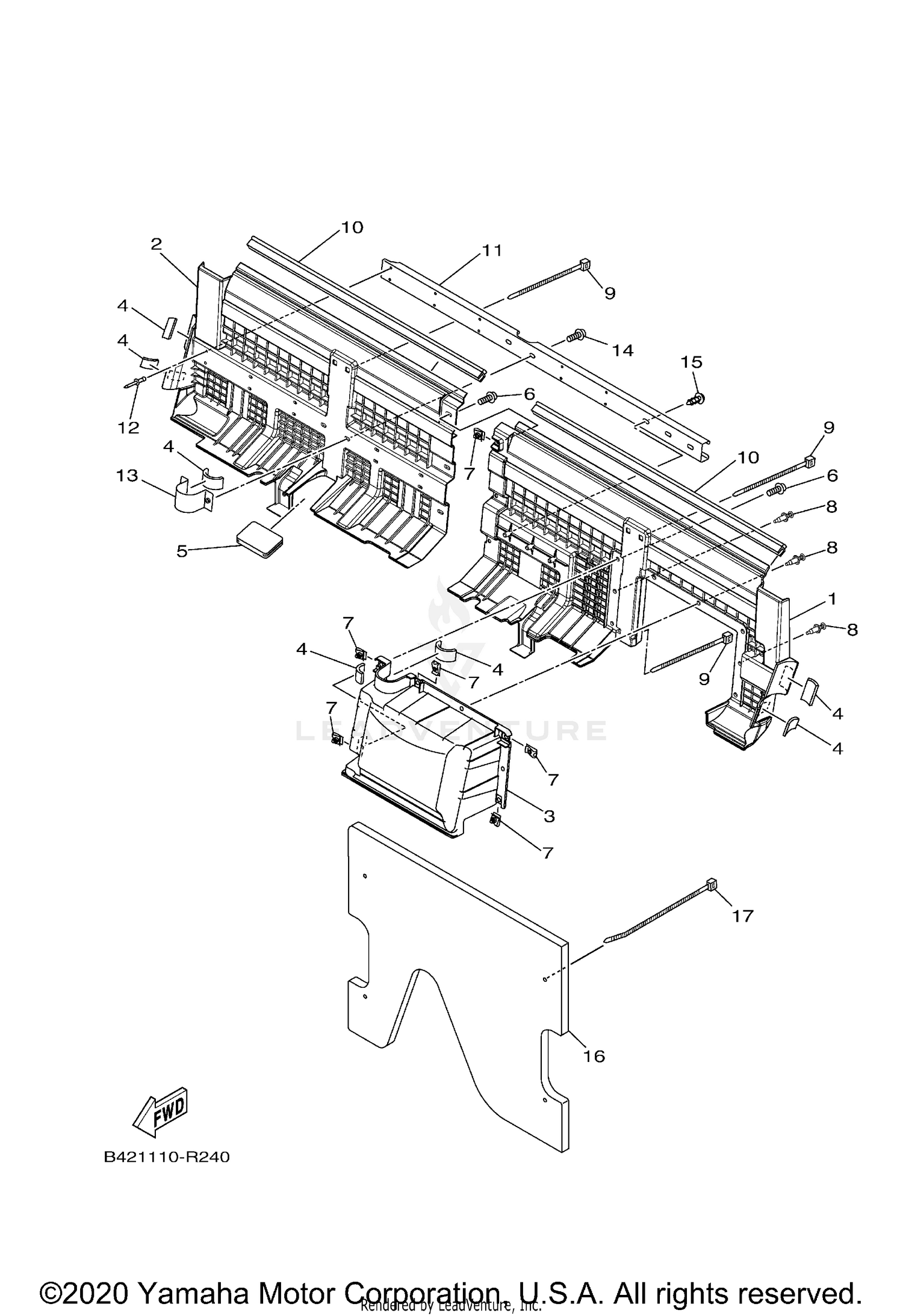

Side Cover 4 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE 1
B42-F191B-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE 2
B42-F191C-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER 1
B42-F198F-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER
5UG-K7588-00-00
Superseded by 5UG-K7588-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#5
GROMMET
B42-F1719-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SPRING
90183-060A6-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIVET
90269-07805-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CLAMP
90464-48800-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL 1
B42-F1732-00-00
Superseded by B42-F1732-01-00
|
$20.99 | ||
|
Unavailable |
|||
|
#11
REINF.
B42-F175G-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIVET, BLIND (90267-40936-00)
90267-409U3-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET 1
B42-F172K-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#15
SCREW, TAPPING
90167-06800-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
INSULATOR, SIDE COVER
B42-2174A-01-00
|
$303.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-76800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
