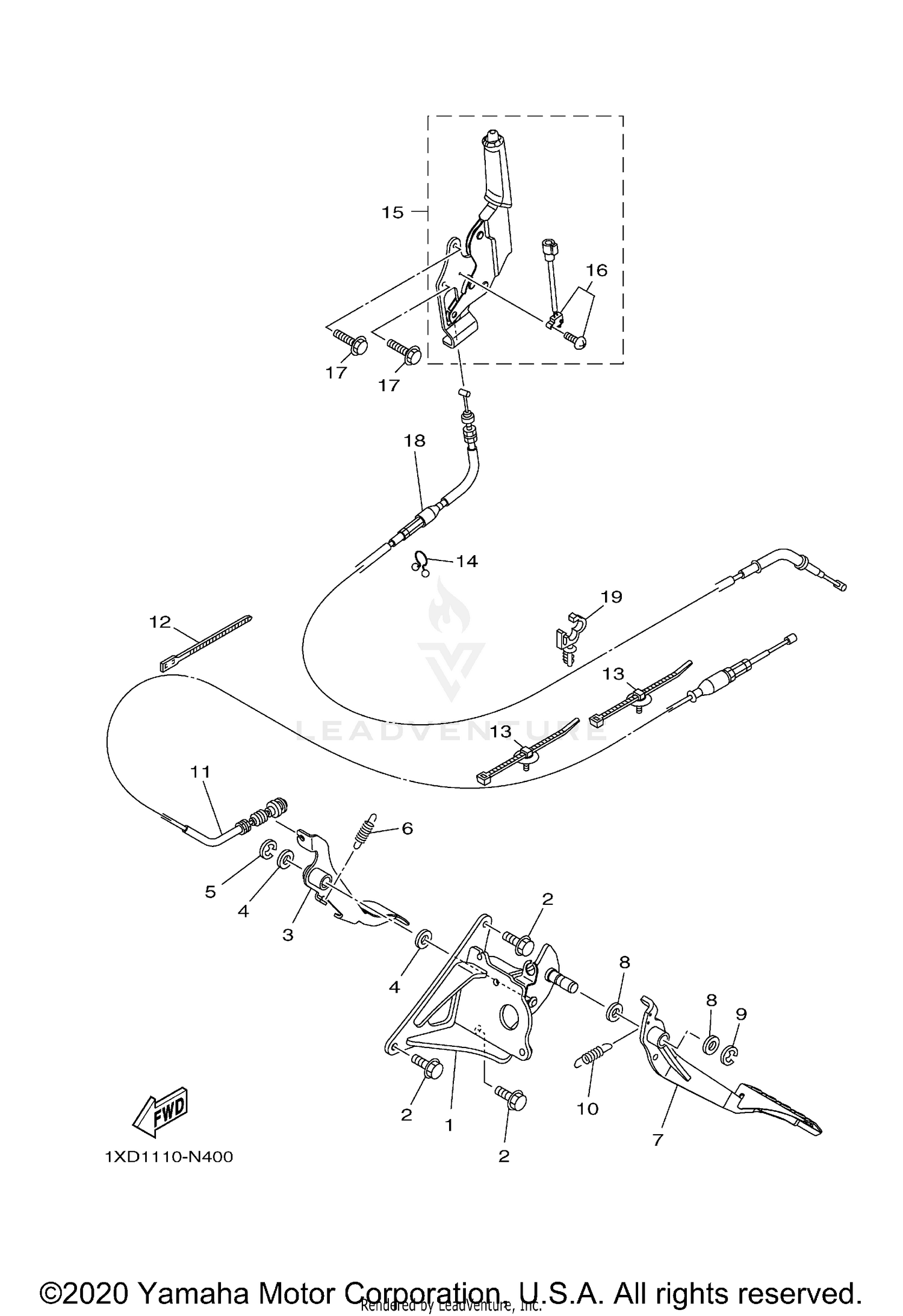

Pedal Wire Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, PEDAL SUPPORT
1XD-F2548-10-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
ACCEL PEDAL ASSY
1XD-F7801-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-15018-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP, E-TYPE
93430-12008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-23023-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PEDAL, BRAKE
1XD-F7200-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-15018-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
CIRCLIP, E-TYPE
93430-12008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
SPRING, TENSION
90506-20192-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CABLE, THROTTLE 1
2PG-26311-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90464-40825-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
5B4-F1338-00-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP
90464-20804-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
PARKING LEVER ASSY
1XD-F5690-01-00
Superseded by BDW-F5690-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#16
SWITCH COMP.
5UG-H251S-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95812-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WIRE, BRAKE 1
2PG-26341-01-00
Superseded by 2PG-26341-02-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-12830-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
