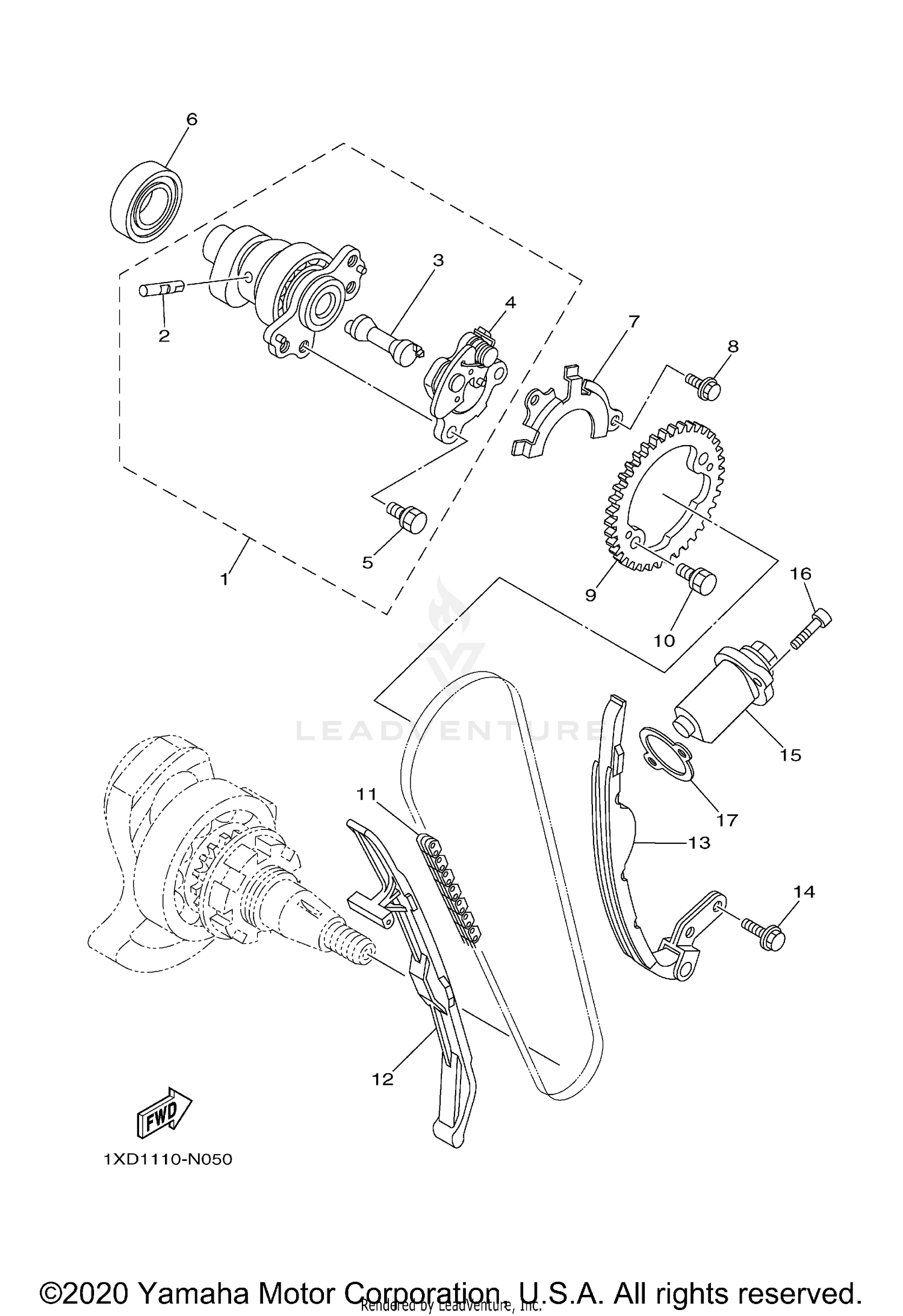

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
2BG-12170-00-00
|
$393.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DECOMPRESSION LEVER
5VK-12284-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER, DECOMPRESSION SPRING
1S3-12290-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DECOMPRESSION ASSY
1S3-12280-01-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-07006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-07209-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE
5VK-1111F-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06078-00
Superseded by 95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPROCKET, CAM CHAIN
1S3-12176-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-07006-00
|
$9.49 | ||
|
Unavailable |
|||
|
#11
CHAIN (98XRH2010-126M)
94591-57126-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, STOPPER 1
3B4-12231-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, STOPPER 2
3B4-12241-00-00
Superseded by 3B4-12241-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-06082-00
Superseded by 95022-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
TENSIONER ASSY, CAM CHAIN
3TB-12210-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GASKET, TENSIONER CASE
4DW-12213-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
