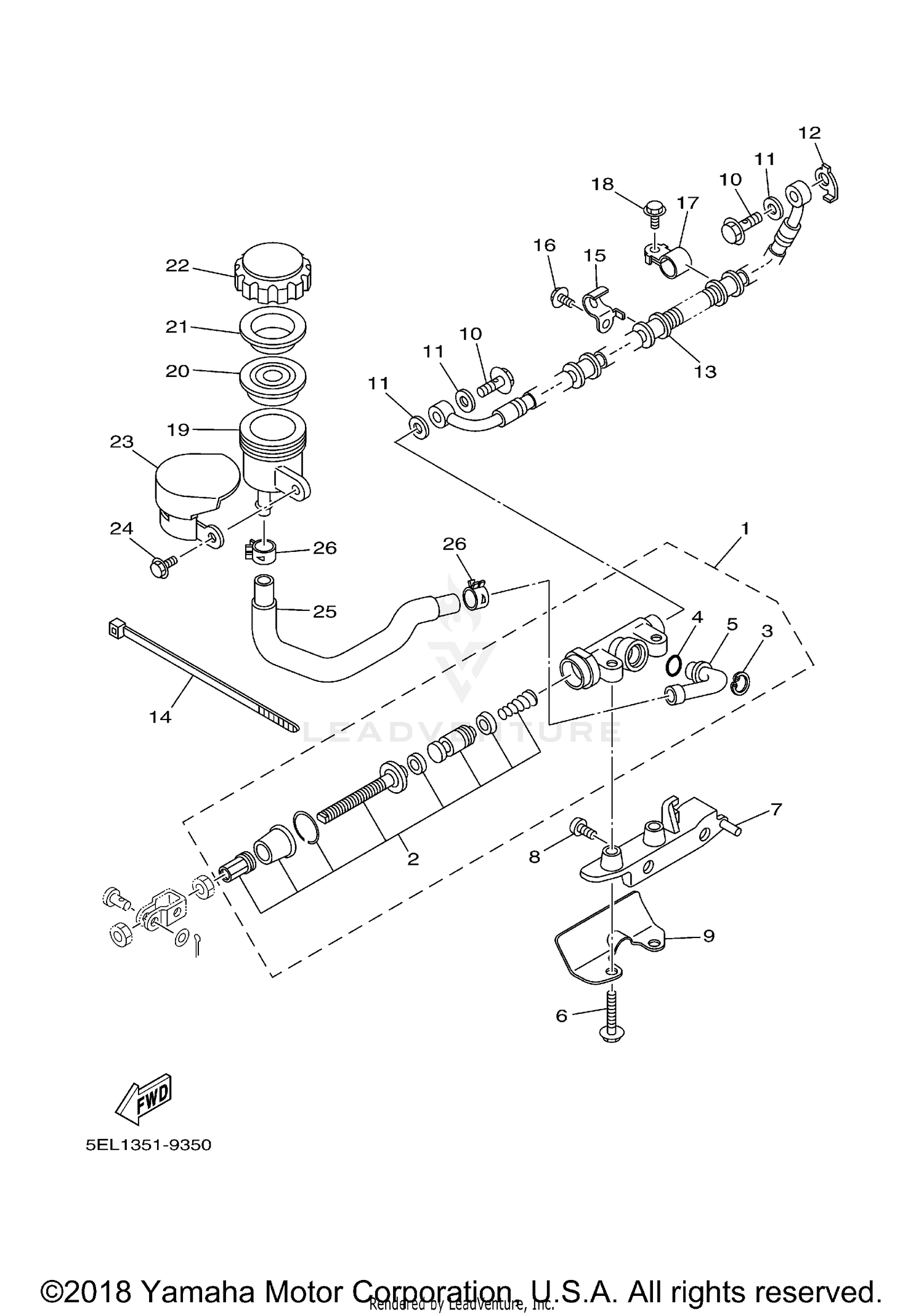

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR MASTER CYLINDER ASSY.
5EL-2583V-00-00
|
$250.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5EL-W0042-50-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
2VN-25866-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
JOINT
3LD-2582A-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95027-08035-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER
5EL-25867-00-00
Superseded by 5EL-25867-01-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92014-08016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR
5EL-27491-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, UNION
90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WASHER, LOCK
5EL-25844-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, BRAKE 4
5EL-2581J-01-00
Superseded by 5EL-2581J-02-00
|
$109.99 | ||
|
Unavailable |
|||
|
#14
BAND
1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, BRAKE HOSE 2
3XV-25876-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLAMP
90461-10127-00
Superseded by 90461-08031-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95027-06010-00
|
$3.55 | ||
|
Unavailable |
|||
|
#19
TANK, RESERVOIR
31A-25894-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
DIAPHRAGM, RESERVOIR
360-25854-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, RESERVOIR
2KF-25852-50-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, RESERVOIR TANK
5EL-25888-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
HOSE, RESERVOIR
5EL-25895-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-14057-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
