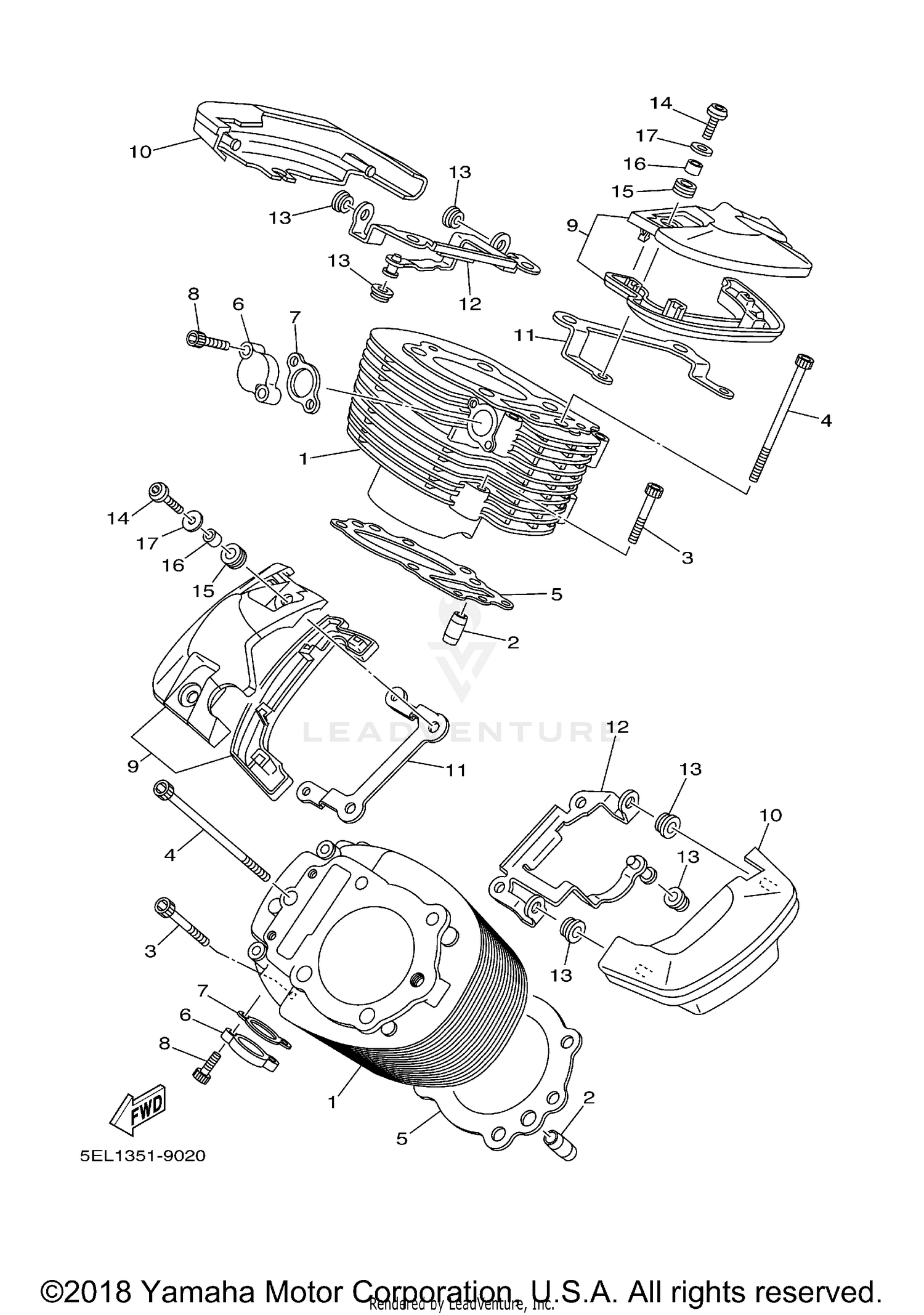

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER 1
5YS-11311-00-00
|
$811.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-087A5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91314-06040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
91314-06100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER
5EL-11351-00-00
Superseded by 5EL-11351-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, TENSIONER CASE
5KS-12215-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, TENSIONER CASE
4FM-12213-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, CYLINDER HEAD 1
5EL-11190-00-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, CYLINDER HEAD SIDE 2
5EL-11186-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, CYLINDER HEAD COVER
5EL-11152-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, CYLINDER HEAD COVER 2
5EL-11142-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-10627-00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-06298-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
GROMMET
90480-13018-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-06043-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-06057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
