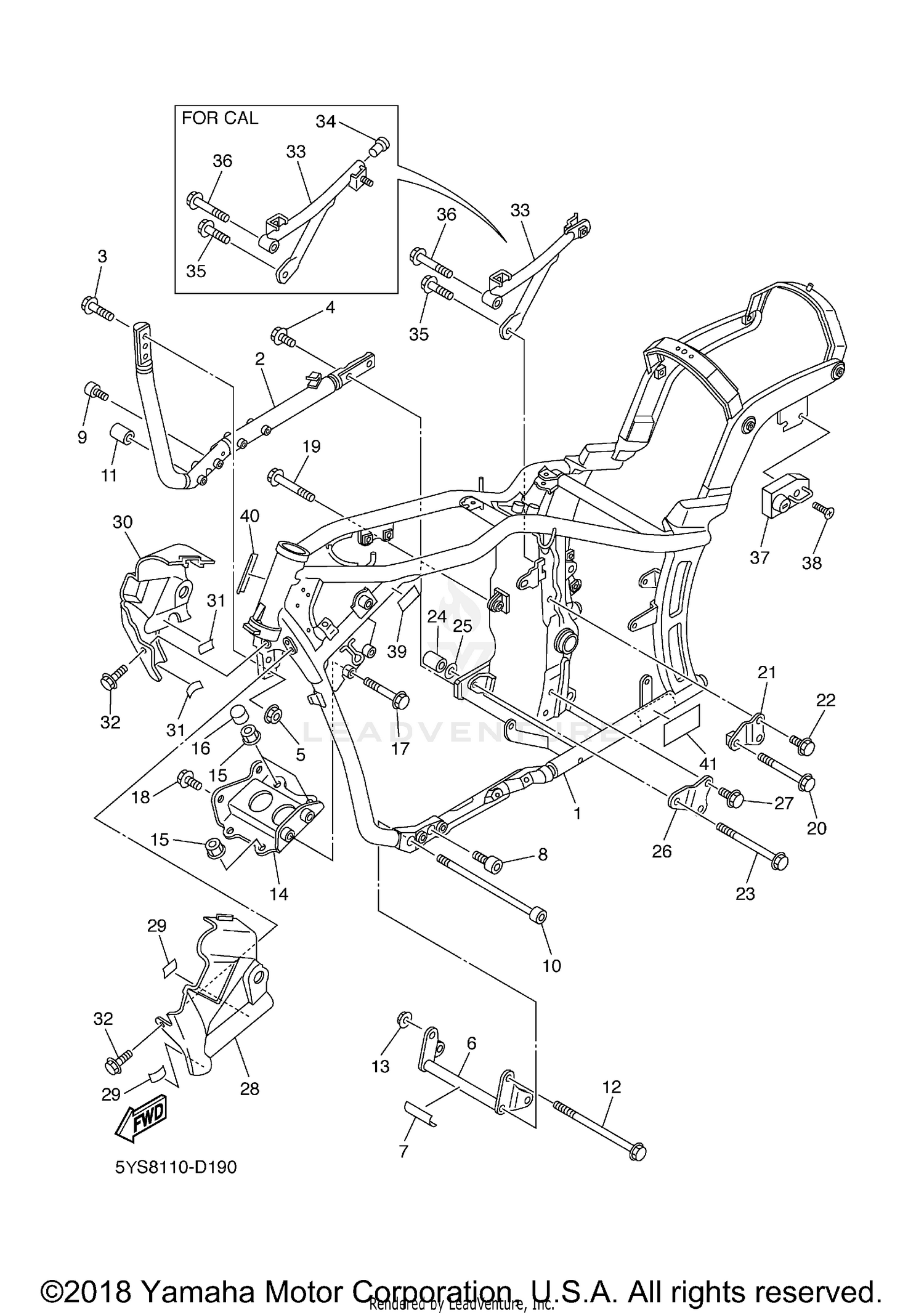

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
5KS-21110-71-00
|
$1,846.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DOWN TUBE COMP.2
5EL-21150-00-00
Superseded by 5EL-21150-01-00
|
$350.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-10009-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-10004-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
STAY, ENGINE 5
5EL-21318-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL
4DN-21268-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX. SOCKET HEAD
91317-10020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT
91317-10030-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-10182-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-10377-00
Superseded by 90179-10013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10781-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U FLANGE
95607-10200-00
|
$4.15 | ||
|
Unavailable |
|||
|
#14
STAY, ENGINE 3
5EL-21317-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-12657-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
90331-14001-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-100A4-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-10003-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-10013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-10299-00
Superseded by 90105-10105-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, ENGINE 5
5EL-21314-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95817-10016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-10444-00
Superseded by 90105-10117-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90179-10377-00
Superseded by 90179-10013-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-101J1-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
STAY, ENGINE 3
5EL-21316-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95817-10016-00
|
$9.49 | ||
|
Unavailable |
|||
|
#28
COVER, SIDE 5
5EL-2171E-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER 1
3BN-21747-00-00
Superseded by 3TB-28217-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, SIDE 6
5EL-2171X-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER 1
3BN-21747-00-00
Superseded by 3TB-28217-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#32
BOLT, WITH WASHER
90119-06236-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY, MUFFLER
5EL-21460-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY, MUFFLER
5KS-21460-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLUG
90338-16148-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE
95817-08020-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, FLANGE
95817-08045-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#37
HELMET HANGER ASSY
4R8-21308-00-00
Superseded by 26H-21308-01-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW
90151-06018-00
Superseded by 90149-06154-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
SEAL 1
3SP-21732-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
PROTECTOR, FUEL TANK
3HA-24141-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLATE, EPA 2 (CALIFORNIA)
5YS-2179R-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#41
PLATE, EPA 1 (NON CALIFORNIA)
5YS-2179V-00-00
|
$2.55 | ||
|
Unavailable |
|||
