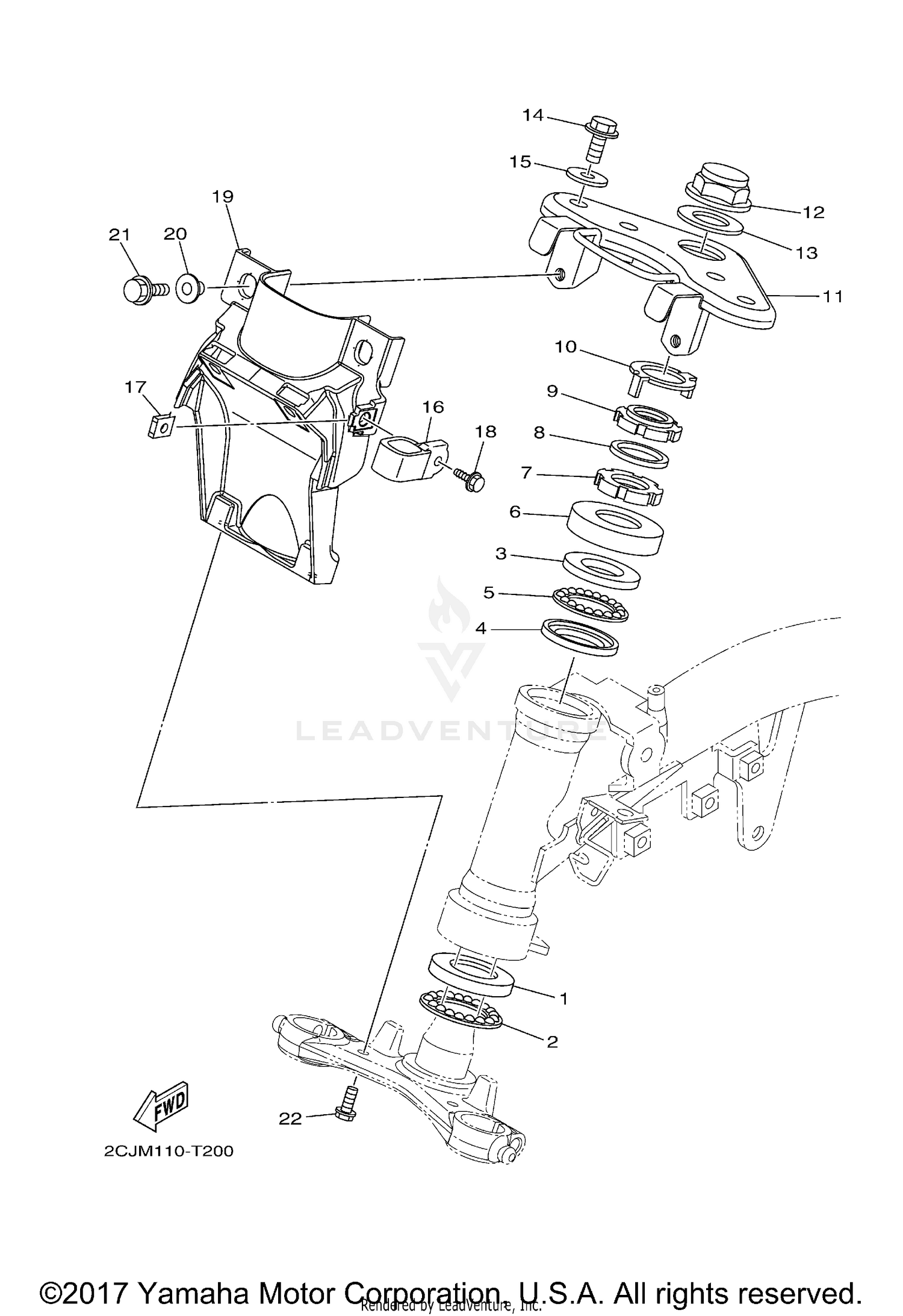

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RACE, BALL 2
1KL-F3412-00-00
Superseded by B6E-23412-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
RETAINER, BALL BEARING
5VL-F341E-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, BALL 1
4RT-F3411-00-00
Superseded by BP2-23411-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
RACE, BALL 2
4RT-F3412-00-00
Superseded by BP2-23412-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RETAINER, BALL BEARING
1P6-F341E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, BALL RACE 2
1P6-F3416-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
90179-25864-00
Superseded by 90179-25004-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90202-26142-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-22801-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPECIAL
1P6-F3418-01-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
HANDLE CROWN COMP.
2CJ-F3430-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, CROWN
90176-22801-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, FELT
5VL-F3165-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95822-10025-00
Superseded by 95817-10025-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-100S7-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER
1P6-F3857-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, TAPPING
90163-05805-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY, FENDER 1
2CJ-F1513-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-07818-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-06842-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-06014-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
