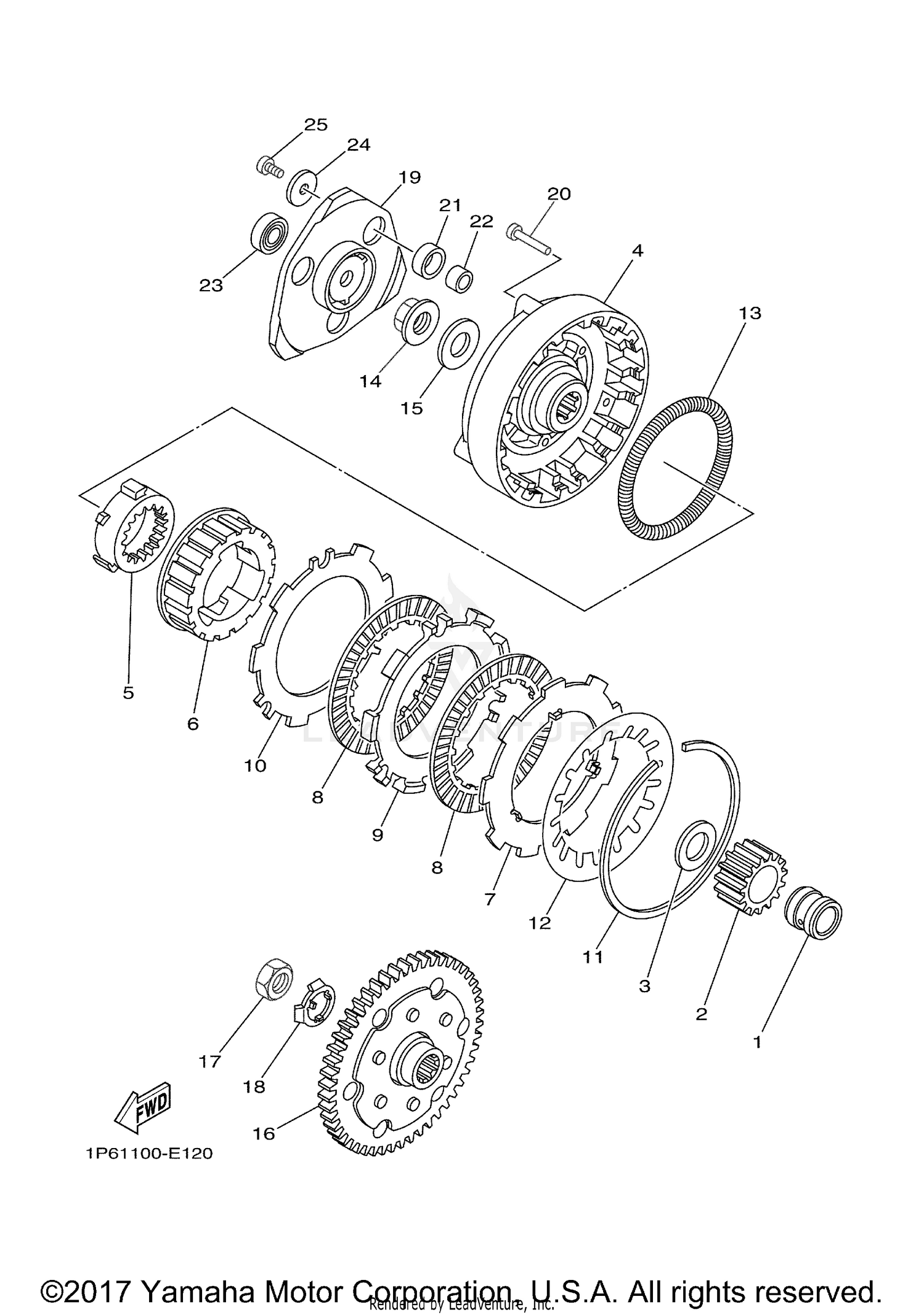

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR 1
1P6-E6116-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PRIMARY DRIVE
1P6-E6111-10-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-17801-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOUSING, CLUTCH
1P6-E6311-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, OUTER DRIVE
1P6-E6818-01-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOSS, CLUTCH
1P6-E6571-01-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 1
1P6-E6324-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, FRICTION 2
1P6-E6330-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH 2
1P6-E6325-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH 3
1P6-E6326-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP, CLUTCH
1P6-E6819-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, DISK
1P6-E6821-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, GARTER
1P6-E6822-10-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-14802-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CONICAL SPRING
90208-14033-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
PRIMARY DRIVEN GEAR COMP.
1P6-E6170-00-00
Superseded by 1P6-E6170-10-00
|
$163.99 | ||
|
Unavailable |
|||
|
#17
NUT, LOCK
1P6-E6377-00-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, LOCK
1P6-E6378-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, PRESSURE 1
1P6-E6551-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, GUIDE
1P6-E6552-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH
1P6-E6152-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ABSORBER 2
1P6-E6125-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93306-900Y0-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-05810-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98512-05012-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
