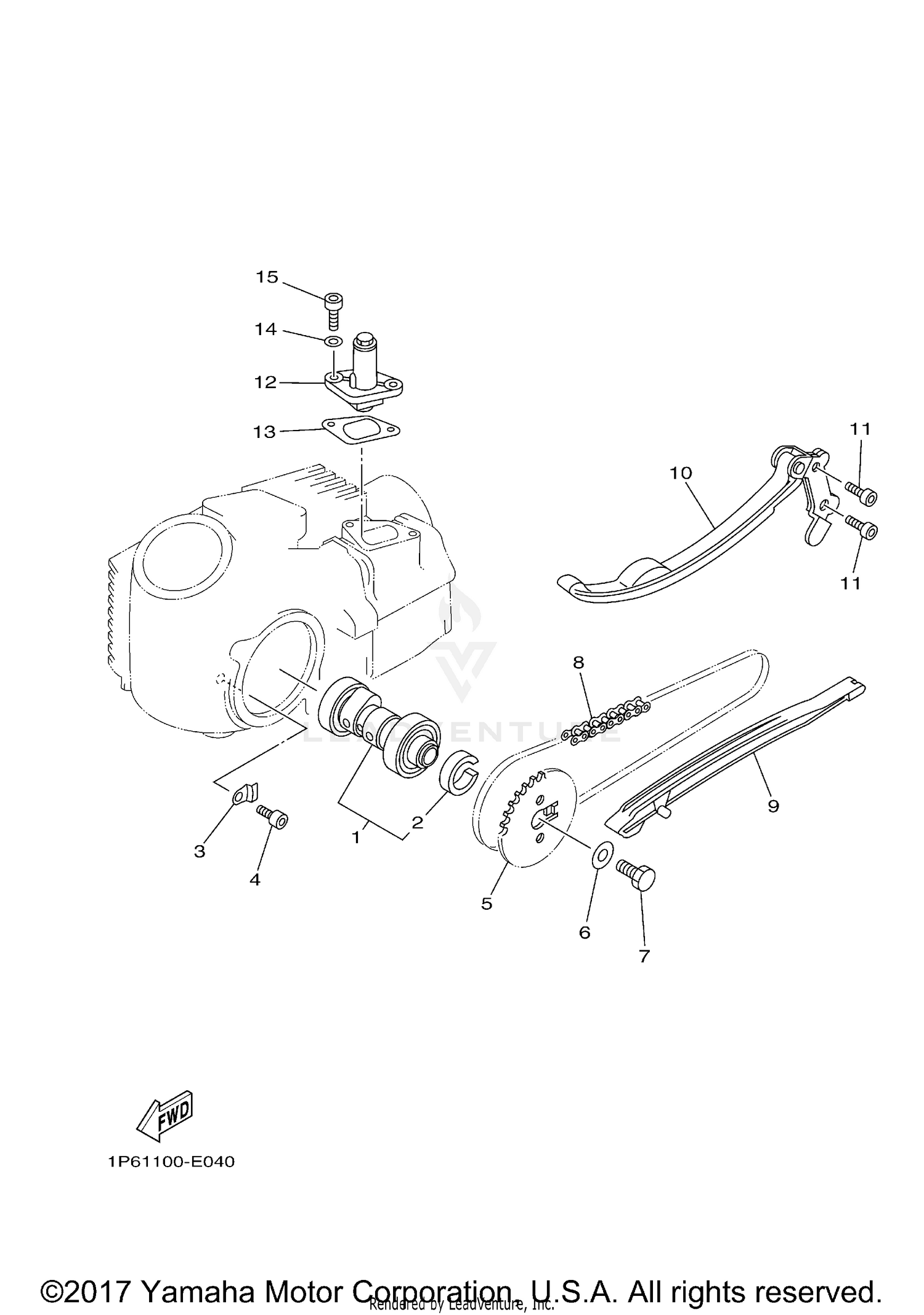

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
1P6-E2170-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-167L5-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE
1P6-E111F-00-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06829-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPROCKET, CAM CHAIN
1P6-E2176-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
1P6-E4617-01-00
Superseded by 90201-08048-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT
90101-08820-00
Superseded by 90101-08055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CHAIN
94591-51084-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, STOPPER 1
1P6-E2231-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, STOPPER 2
1P6-E2241-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
TENSIONER ASSY, CAM CHAIN
4GL-12210-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, TENSIONER CASE
5VL-E2213-10-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
90430-06817-00
Superseded by 90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$6.49 | ||
|
Unavailable |
|||
