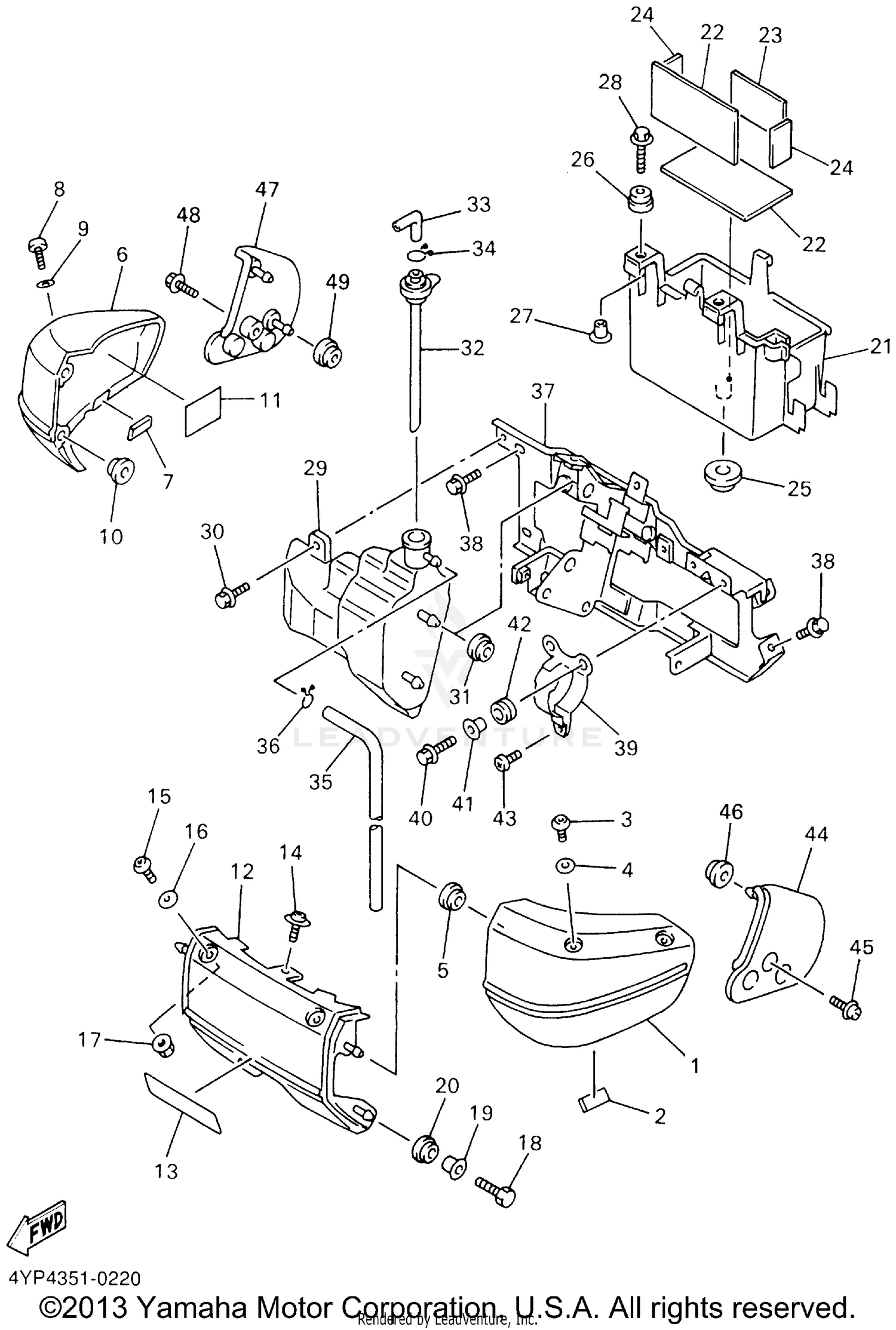

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
4NK-21711-00-33
|
$218.35 | ||
|
Unavailable |
|||
|
#2
DAMPER 2
51Y-21639-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
90149-06298-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, PLATE
90202-06170-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-13567-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, SIDE 2
4NK-21721-00-33
|
$218.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER 2
51Y-21639-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
SCREW
90149-06298-00
|
$6.49 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90202-06170-00
|
$2.05 | ||
|
Unavailable |
|||
|
#10
GROMMET
90480-13567-00
|
$5.49 | ||
|
Unavailable |
|||
|
#11
SEAL 2
1JK-21735-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER 9
4NK-2117X-01-33
|
$104.99 | ||
|
Unavailable |
|||
|
#13
PROTECTOR
52W-2117G-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW,PAN HEAD
98507-06016-00
|
$3.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW
90149-06298-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90202-06170-00
|
$2.05 | ||
|
Unavailable |
|||
|
#17
NUT, FLANGE
95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT
97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
COLLAR
90387-067N5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOX, BATTERY
4NK-2177G-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER
3Y6-21747-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, PLATE 1
5EJ-2414H-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER
22F-2139X-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET
90480-20384-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
COLLAR
90387-067N5-00
|
$8.49 | ||
|
Unavailable |
|||
|
#28
BOLT, WITH WASHER
90119-06063-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
TANK, RECOVERY
4NK-21871-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
97017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
GROMMET
90480-13567-00
|
$5.49 | ||
|
Unavailable |
|||
|
#32
CAP
4NK-21875-00-00
Superseded by 1B7-21875-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
ELBOW
26H-21828-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-11M08-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE (L540)
90445-09361-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
PLATE, BRIDGE
4NK-21243-00-00
Superseded by 4NK-21243-01-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT,FLANGE
95817-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET, FUEL PUMP
3CV-24491-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE
95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
COLLAR
90387-062L2-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
GROMMET
90480-13163-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, BIND
98907-05010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
COVER, SIDE 3
4NK-21731-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
SCREW,PAN HEAD
98507-06016-00
|
$3.48 | ||
|
Unavailable |
|||
|
#46
GROMMET
90480-13567-00
|
$5.49 | ||
|
Unavailable |
|||
|
#47
COVER, SIDE 4
4NK-21741-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SCREW,PAN HEAD
98507-06016-00
|
$3.48 | ||
|
Unavailable |
|||
|
#49
GROMMET
90480-13567-00
|
$5.49 | ||
|
Unavailable |
|||
