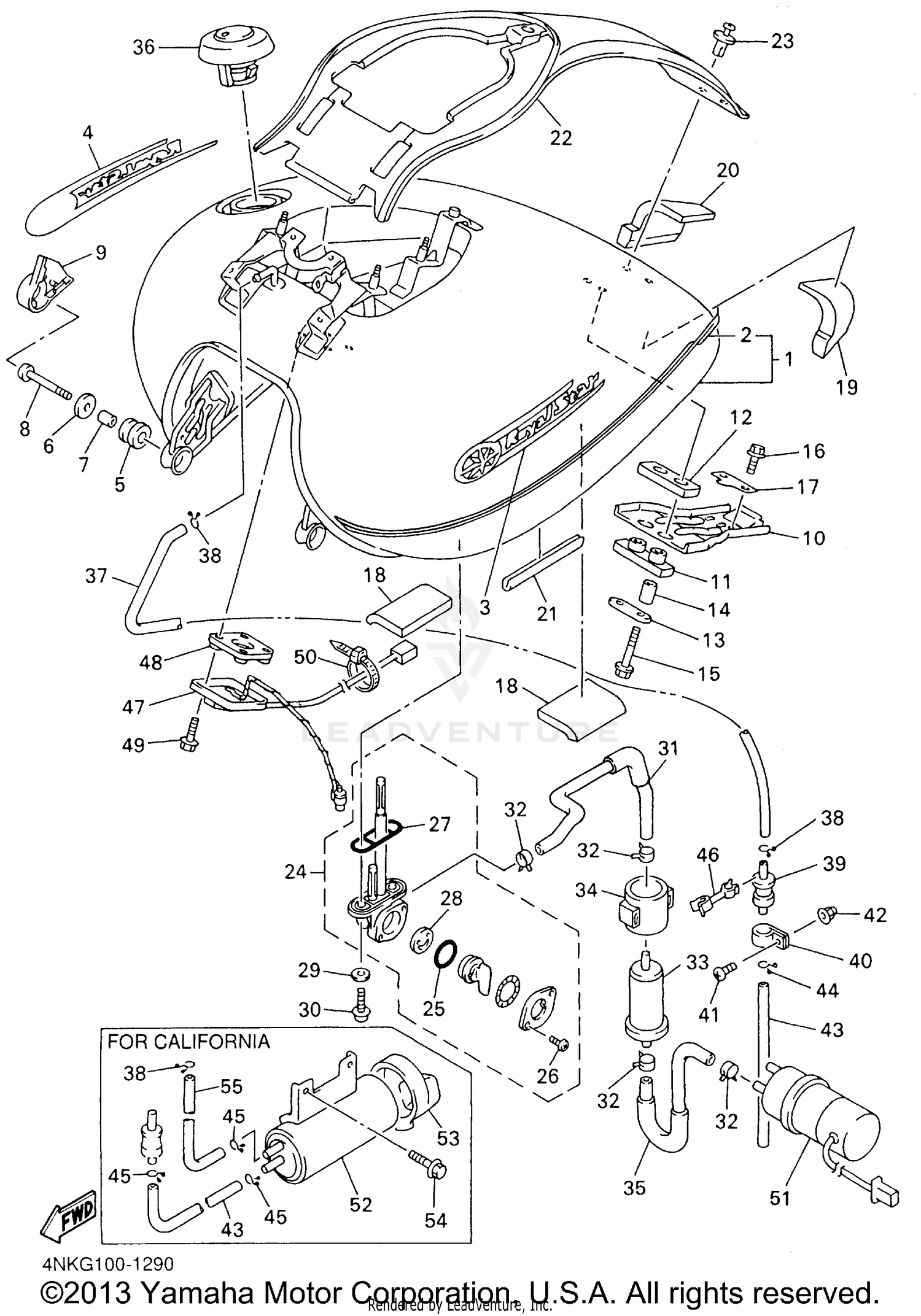

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4NK-Y2410-10-04
|
$1,369.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
4YE-24240-60-00
|
$137.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
4NK-24161-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM 2
4NK-24162-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#5
GROMMET
90480-18354-00
Superseded by 90480-18549-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-06027-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92017-06035-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SIDE 1
4NK-24129-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#10
BRACKET, FUEL TANK 1
4NK-24191-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#11
DAMPER, LOCATING 1
2GH-24181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 3
2GH-24183-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPECIAL
2GH-24186-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-06299-00
Superseded by 90387-07598-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE
95807-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95827-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, SPECIAL
4NK-24186-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
DAMPER, LOCATING 1
4NK-24181-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#19
DAMPER, LOCATING 2
4NK-24182-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#20
DAMPER, LOCATING 3
4NK-24183-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#21
MOLD, FUEL TANK
31A-24188-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, TOP
4NK-2171A-00-00
|
$104.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIVET
90269-07076-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
FUEL COCK ASSY 1
4WM-24500-00-00
Superseded by 4WM-24500-10-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PIPE, FUEL 1
4NK-24311-01-00
|
$45.99 | ||
|
Unavailable |
|||
|
#32
CLIP
90467-12053-00
Superseded by 90467-11044-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
FILTER ASSY
1FK-24560-00-00
Superseded by 1FK-24560-10-00
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BRACKET, FILTER
1FK-24566-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE 2
4NK-24312-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CAP ASSY
4NK-24602-10-00
Superseded by 4NK-24602-20-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE 10
4NK-24321-02-00
|
$280.99 | ||
|
Unavailable |
|||
|
#38
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
ROLL OVER VALVE ASSY
25H-24180-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90461-15139-00
Superseded by 90464-15014-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, BIND
98907-05012-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
NUT, CROWN
90176-05054-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
HOSE (L400)
90445-116K9-00
|
$26.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#45
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#46
CLAMP
90464-13103-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#47
SENDER UNIT ASSY, FUEL METER
4NK-85752-01-00
|
$133.99 | ||
|
Unavailable |
|||
|
#48
GASKET, SENDER UNIT
5G3-85753-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, WITH WASHER
90119-05071-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLAMP
90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#51
FUEL PUMP COMP.
4NK-13907-00-00
Superseded by 4NK-13907-01-00
|
$271.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
CANISTER ASSY
1UL-24170-00-00
|
$633.99 | ||
|
Unavailable |
|||
|
#53
COVER, CANISTER
2JU-2419E-00-00
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT,FLANGE
95817-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
HOSE (L590)
90445-113K3-00
|
$19.99 | ||
|
Unavailable |
|||
