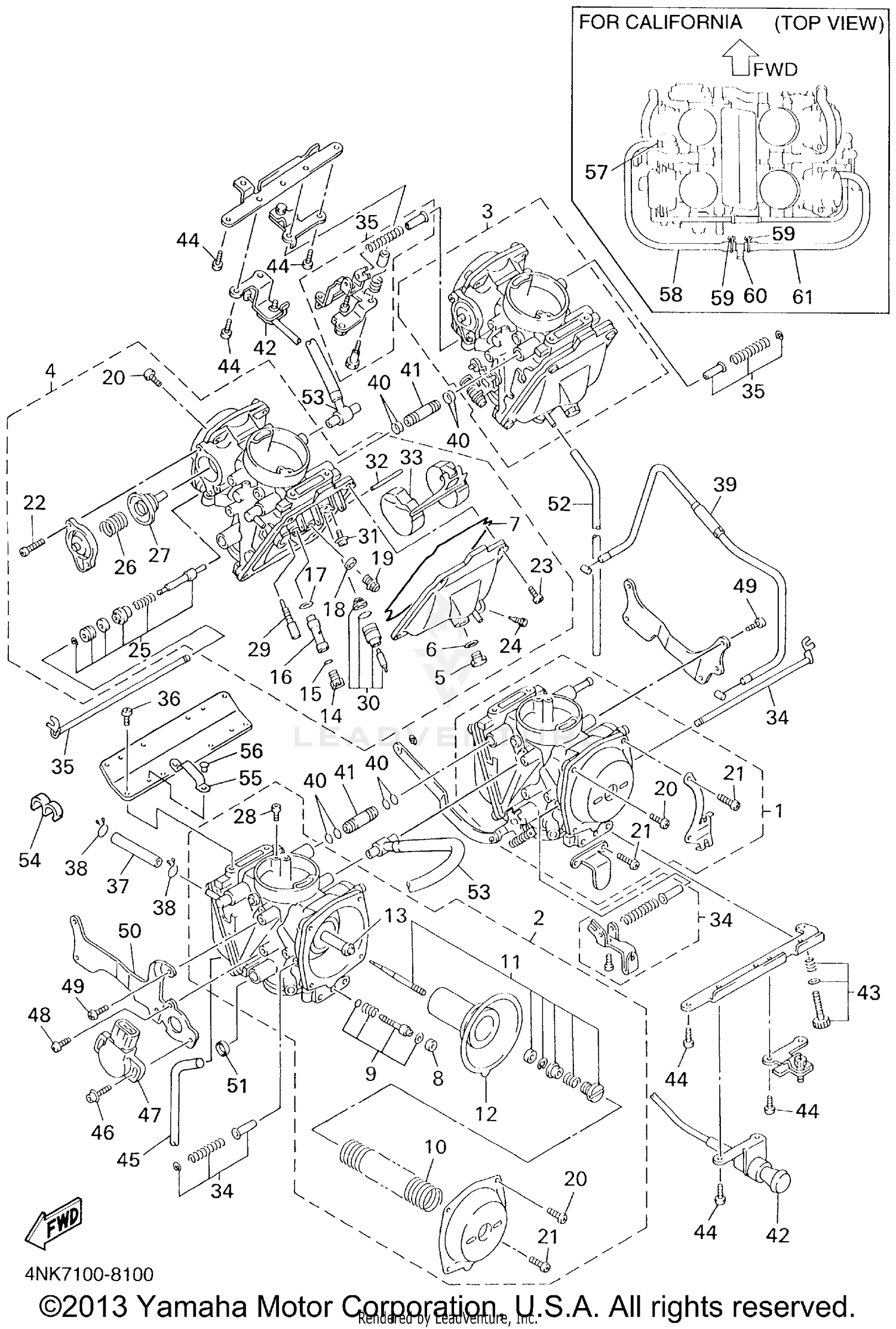

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
4NK-14901-01-00
|
$653.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSY 1
4NK-14901-11-00
|
$653.99 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY 2
4NK-14902-01-00
|
$653.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSY 2
4NK-14902-11-00
|
$653.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSY 3
4NK-14903-01-00
|
$712.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSY 3
4NK-14903-11-00
|
$712.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSY 4
4NK-14904-01-00
|
$712.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSY 4
4NK-14904-11-00
|
$712.99 | ||
|
Unavailable |
|||
|
#5
PLUG, SCREW
22U-14115-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
22U-14561-00-00
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
1HX-14147-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CAP
3F9-14118-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PILOT SCREW SET
3KW-14105-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, DIAPHRAGM
4NK-14933-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#11
NEEDLE SET
4NK-1490J-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM ASSY
4NK-14940-00-00
|
$311.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
MAIN NOZZLE (0-0)
3DM-14141-30-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET, POWER (# 95)
3G2-14231-19-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING
1AE-14227-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HOLDER
1AE-14261-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
1AE-14237-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, MAIN JET
137-14153-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW
1HX-14565-00-00
|
$22.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98580-04008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW,PANHEAD
98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98507-04014-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG, DRAIN
12R-14191-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
STARTER SET
4DN-1410A-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING
4NK-14935-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#27
DIAPHRAGM ASSY
22V-14940-00-00
|
$87.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
JET, MAIN (#115)
1HX-14231-23-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, PILOT (# 20)
22F-14142-20-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NEEDLE VALVE SET
3CF-14107-15-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
1FN-14565-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, FLOAT
353-14186-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
FLOAT
1HX-14985-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
STARTER LEVER SET, 1
4NK-1490L-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#35
STARTER LEVER SET, 1
4NK-1490L-10-00
|
$94.99 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
98517-05010-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE
4NK-14396-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP
4NK-14137-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#39
CABLE
4NK-14130-00-00
|
$125.99 | ||
|
Unavailable |
|||
|
#40
O-RING
36Y-14147-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
NIPPLE
1WG-14251-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CABLE
4NK-14130-12-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
THROTTLE SCREW SET
4NK-14103-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#44
SCREW, PAN HEAD
98517-05012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIPE
3JD-14197-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW
4KM-24453-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
THROTTLE POSITION SENSOR ASSY
4NK-85885-00-00
|
$353.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SCREW, FLAT HEAD
98707-05008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW, PAN HEAD
98517-05010-00
|
$4.60 | ||
|
Unavailable |
|||
|
#50
BRACKET
4NK-14867-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#51
SEAL
4HM-14239-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
PIPE
4FU-14197-00-00
Superseded by 3JE-14197-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
PIPE
4NK-14349-20-00
|
$62.99 | ||
|
Unavailable |
|||
|
#54
CLAMP
90464-10075-00
Superseded by 90464-09M31-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
PLATE
4NK-14243-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#56
PIN, FLOAT
4NK-14386-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#57
CLIP
55X-14937-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
HOSE
4NK-14987-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#59
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
PIPE, JOINT 1
3H3-24376-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
HOSE
4NK-14987-10-00
|
$32.99 | ||
|
Unavailable |
|||
