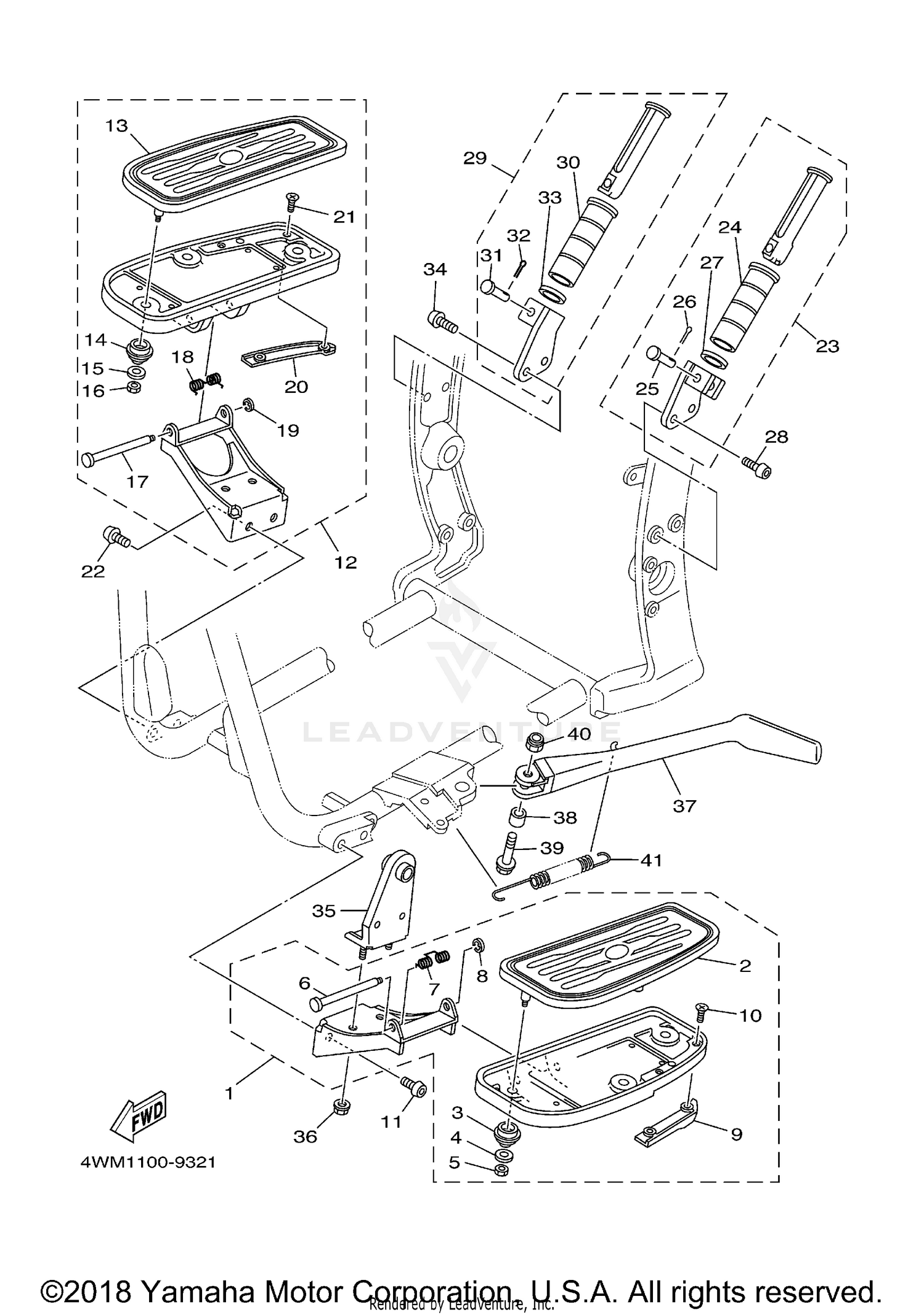

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FOOTREST ASS
4WM-27410-00-00
Superseded by 99999-03522-00
|
$207.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, FOOTREST
4WM-27413-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, FOOTREST
4WM-27414-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPECIAL
90201-05033-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT
4NK-27427-00-00
Superseded by 3D8-27427-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, RETURN
4NK-27426-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
99001-06600-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
MOLE 1
4WM-27496-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, FLAT HEAD
98780-05010-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, BUTTON HEAD
92017-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT FOOTREST ASS
4WM-27420-00-00
Superseded by 99999-03523-00
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, FOOTREST
4WM-27423-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, FOOTREST
4WM-27414-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#15
WASHER, SPECIAL
90201-05033-00
|
$11.49 | ||
|
Unavailable |
|||
|
#16
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Unavailable |
|||
|
#17
SHAFT
4NK-27427-00-00
Superseded by 3D8-27427-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
SPRING, RETURN
4NK-27426-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
99001-06600-00
|
$1.10 | ||
|
Unavailable |
|||
|
#20
MOLE 2
4WM-27497-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, FLAT HEAD
98780-05010-00
|
$1.40 | ||
|
Unavailable |
|||
|
#22
BOLT, BUTTON HEAD
92017-10020-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
REAR FOOTREST ASSY 1
4WM-27430-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#24
COVER, REAR FOOTREST
4WM-27433-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, CLEVIS
90240-06146-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN. COTTER
91401-20015-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-210U0-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEX. SOCKET BUTTON
90111-08002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
REAR FOOTREST ASSY 2
4WM-27440-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#30
COVER, REAR FOOTREST
4WM-27433-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#31
PIN, CLEVIS
90240-06146-00
|
$2.10 | ||
|
Unavailable |
|||
|
#32
PIN. COTTER
91401-20015-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
90201-210U0-00
|
$11.49 | ||
|
Unavailable |
|||
|
#34
BOLT, HEX. SOCKET BUTTON
90111-08002-00
|
$11.49 | ||
|
Unavailable |
|||
|
#35
BRACKET 3
4WM-27443-00-00
Superseded by 4WM-27443-10-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
STAND, SIDE
4WM-27311-00-00
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
90387-1007K-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE
90105-10778-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, SELF-LOCKING
90185-10037-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING, TENSION
90506-29358-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
