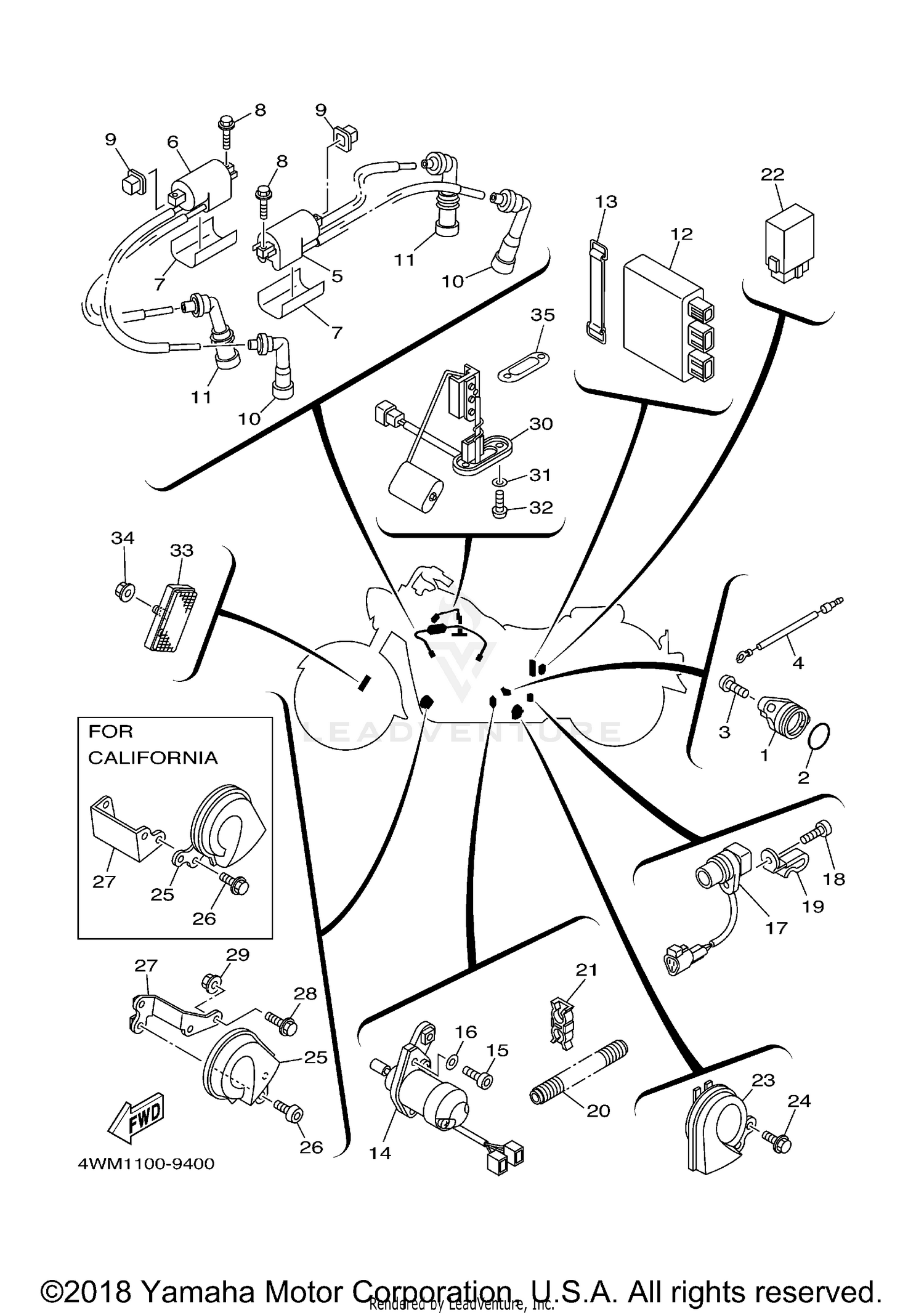

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NEUTRAL SWITCH ASSY
1AE-82540-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-29196-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT, BUTTON HEAD
92014-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, SUB LEAD
4WM-82509-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IGNITION COIL ASSY
4WM-82310-00-00
Superseded by 5MB-82310-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
IGNITION COIL ASSY
4WM-82310-10-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHEET 1
4WM-21266-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
DAMPER, IGNITION COIL
4U8-82317-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG CAP ASSY
4TR-82370-00-00
Superseded by 4VW-82370-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG CAP ASSY
4NK-82370-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
IGNITOR UNIT ASSY
4WM-82305-00-00
|
$688.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SOLENOID
4WM-86110-00-00
Superseded by 4WM-86110-10-00
|
$446.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-06114-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90214-06002-00
Superseded by 90202-06002-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENSOR, SPEED
4WM-83755-00-00
Superseded by 4WM-83755-03-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
91314-06014-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90465-08127-00
Superseded by 90465-06376-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COVER
4WM-81842-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-18266-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
FLASHER RELAY ASSY
4WM-83350-00-00
|
$176.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HORN
4WM-83371-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95827-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
HORN
4WM-83371-20-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HORN
4WM-83371-10-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, BUTTON HEAD
92017-06012-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE
95827-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
Unavailable |
|||
|
#27
STAY, HORN
4WM-83378-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
STAY, HORN
4WM-83378-10-00
|
$49.67 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
90105-06009-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FLANGE
95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SENDER UNIT ASSY, FU
4WM-85752-00-00
Superseded by 4WM-85752-11-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
REFLECTOR ASSY
11H-85110-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE
95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET, SENDER UNIT
4WM-85753-00-00
Superseded by 3D8-85753-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
