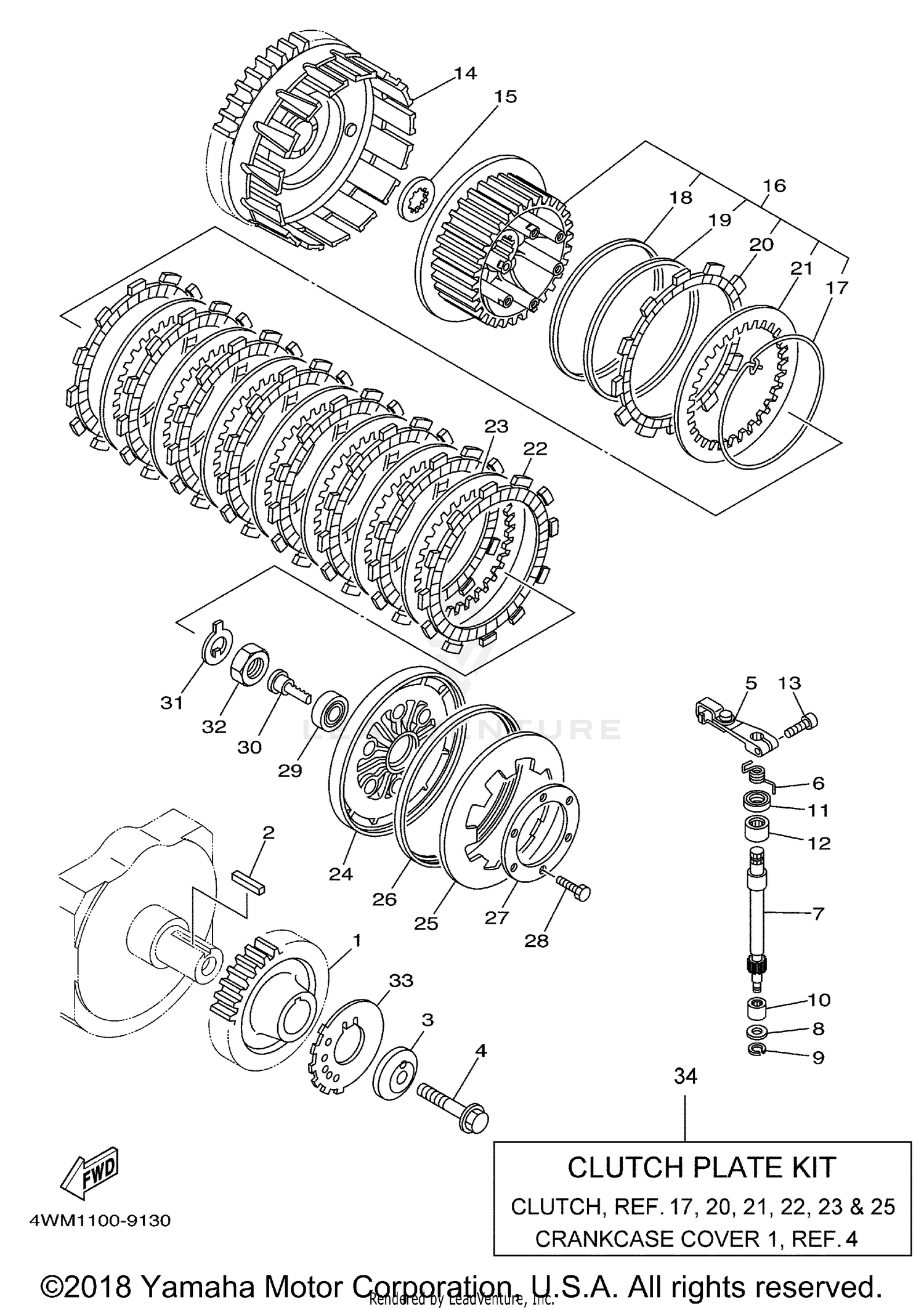

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
4WM-16111-00-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY, FEATHER
4WM-16193-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER 1
4WM-16181-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90101-12746-00
Superseded by 90101-12011-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PUSH LEVER ASSY
4WM-16340-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TORSION
4WM-16539-00-00
Superseded by 90508-16007-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
AXLE, PUSH LEVER
4WM-16382-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-08600-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CIRCLIP
99001-07600-00
Superseded by 99080-07600-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BEARING
93317-11020-00
Superseded by 93317-11096-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-15212-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BEARING
93315-31502-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PRIMARY DRIVEN GEAR COMP.
4WM-16150-00-00
|
$350.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, THRUST 1
26H-16154-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLUTCH BOSS ASSY
4WM-16370-00-00
Superseded by 5PX-16370-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, CLUTCH BOSS
26H-16385-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, SEAT
26H-16384-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, CLUTCH BOSS
1FK-16383-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, FRICTION
26H-16321-00-00
Superseded by 26H-16321-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, FRICTION
26H-16321-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#21
PLATE, CLUTCH 1
26H-16324-00-00
Superseded by 26H-16324-10-00
|
$15.49 | ||
|
Unavailable |
|||
|
#22
PLATE, FRICTION 3
26H-16307-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, FRICTION 3
26H-16307-00-00
Superseded by 26H-16307-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#23
PLATE, CLUTCH 1
26H-16324-00-00
Superseded by 26H-16324-10-00
|
$15.49 | ||
|
Unavailable |
|||
|
#24
PLATE, PRESSURE 1
1FK-16351-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, CLUTCH 2
4NK-16334-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOUSING, SPRING
1FK-16335-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, PRESSURE 2
1FK-16352-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING
93306-00304-00
Superseded by 93306-00315-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
ROD, PUSH 1
4XV-16356-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, LOCK
90215-25218-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
NUT
90170-20323-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
ROTOR
4WM-81673-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLUTCH PLATE KIT
4WM-W001G-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
