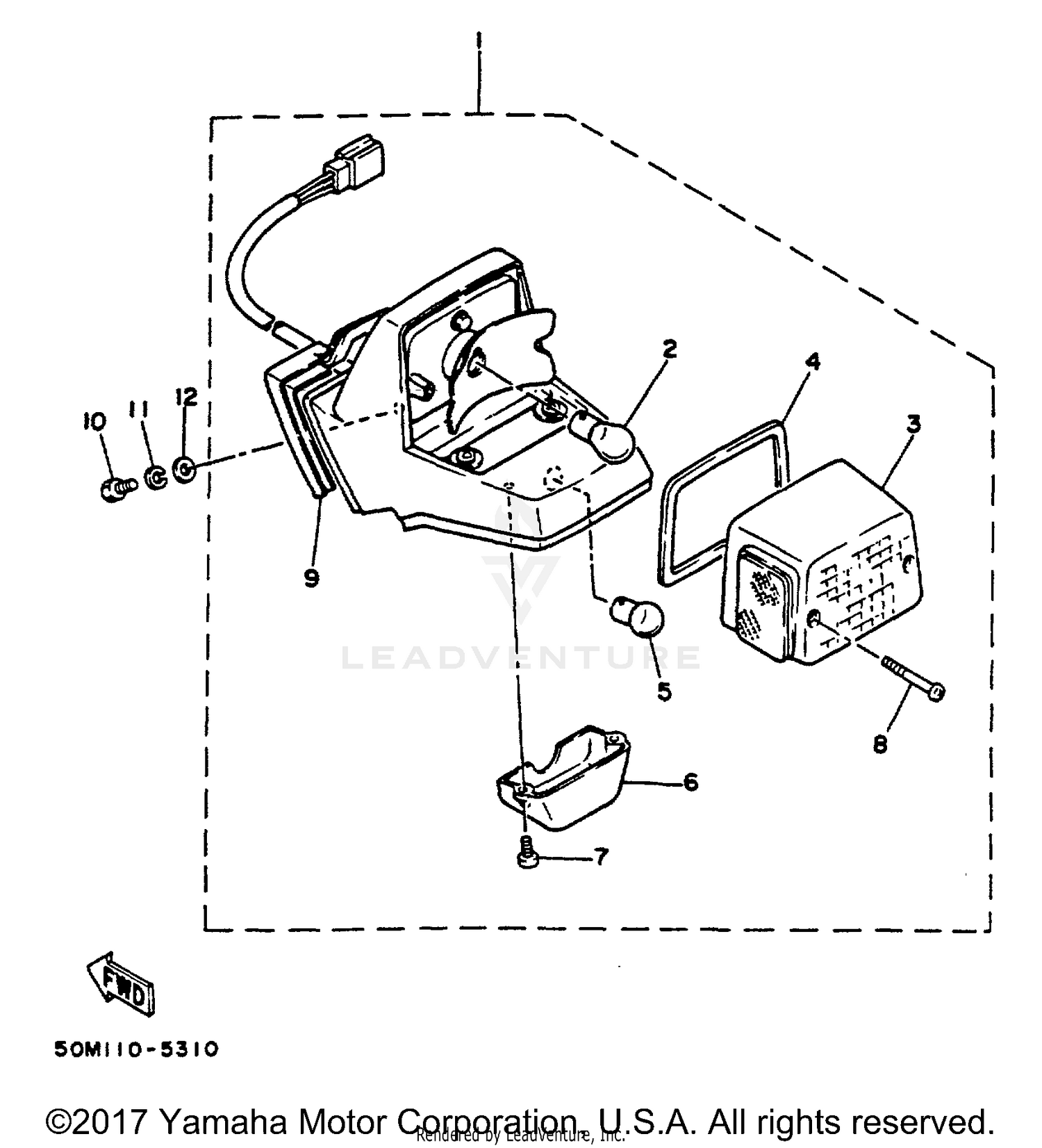

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT ASSY
50M-84700-60-GE
|
$222.99 | ||
|
Unavailable |
|||
|
#
TAILLIGHT ASSY
50M-84700-60-P0
|
$222.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, TAILLIGHT
4H7-84721-60-00
|
$26.99 | ||
|
Unavailable |
|||
|
#4
GASKET,LENS
4H7-84723-00-00
Superseded by 3TJ-14457-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB
4H7-84744-00-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
LENS, LICENSE LIGHT
4H7-84743-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#7
SCREW,PANHEAD
98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, ADJUSTING
1M1-84524-60-00
Superseded by 5BF-8433E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, TAILLIGHT
50W-84704-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#10
BOLT, HEXAGON DEEP R
97014-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92990-06600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
