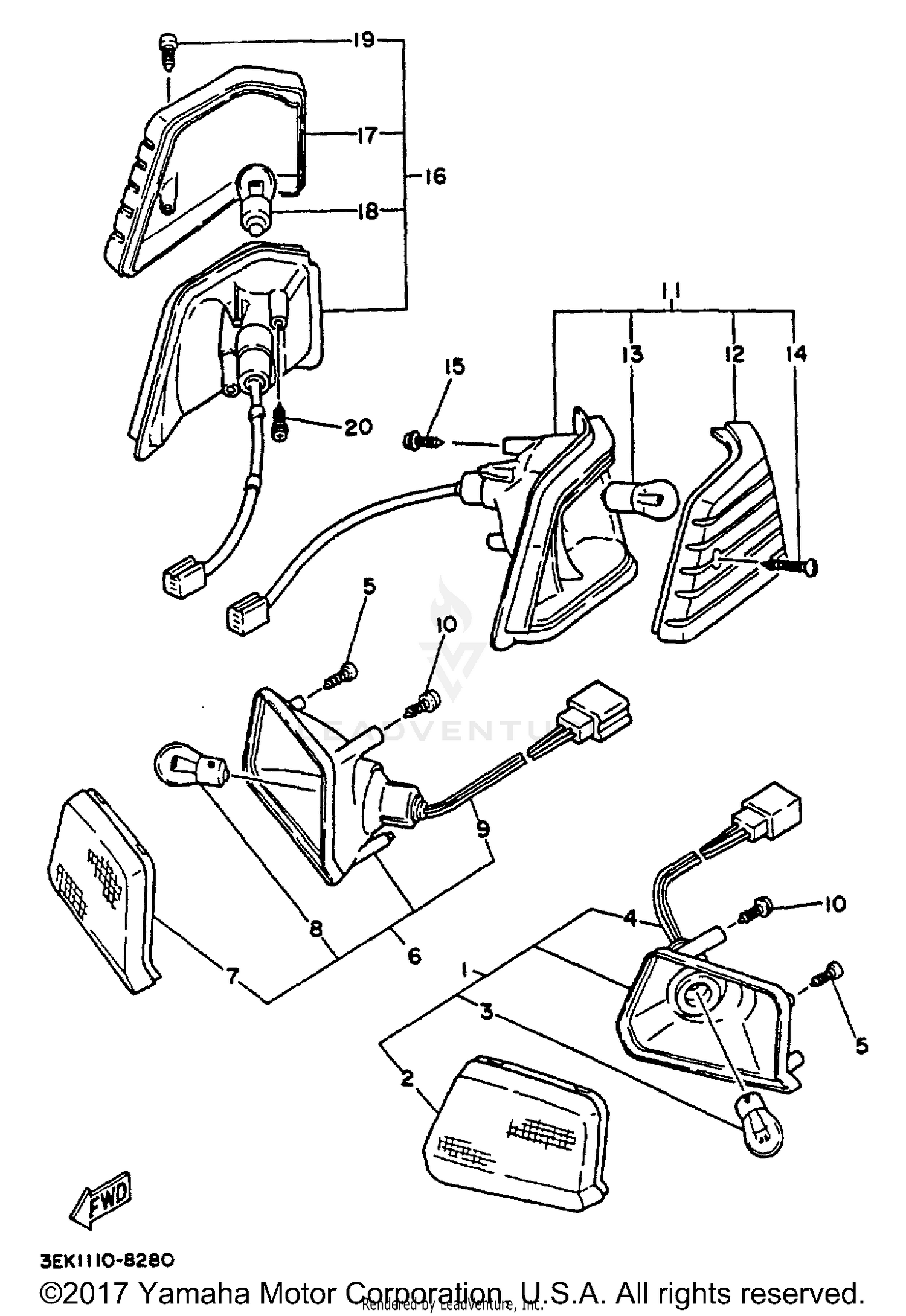

Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSY 1
3EK-83310-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#2
LENS, FLASHER
3EK-83312-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#3
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CORD ASSY
3EK-8331E-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
90167-05015-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
FRONT FLASHER LIGHT ASSY 2
3EK-83320-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#7
LENS, FLASHER 2
3EK-83322-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#8
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Unavailable |
|||
|
#9
CORD ASSY
3EK-8332E-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
97780-50120-00
Superseded by 97780-50620-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
RR. FLASHER LIGHT ASSY (L.H)
50M-83330-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#12
LENS, FLASHER (L.H)
25G-83332-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
97780-40130-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, TAPPING
97780-60116-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
RR. FLASHER LIGHT ASSY (R.H)
50M-83340-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#17
LENS, FLASHER (R.H.)
25G-83342-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#19
SCREW, TAPPING
97780-40130-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
SCREW, TAPPING
97780-60116-00
|
$2.70 | ||
|
Unavailable |
|||
