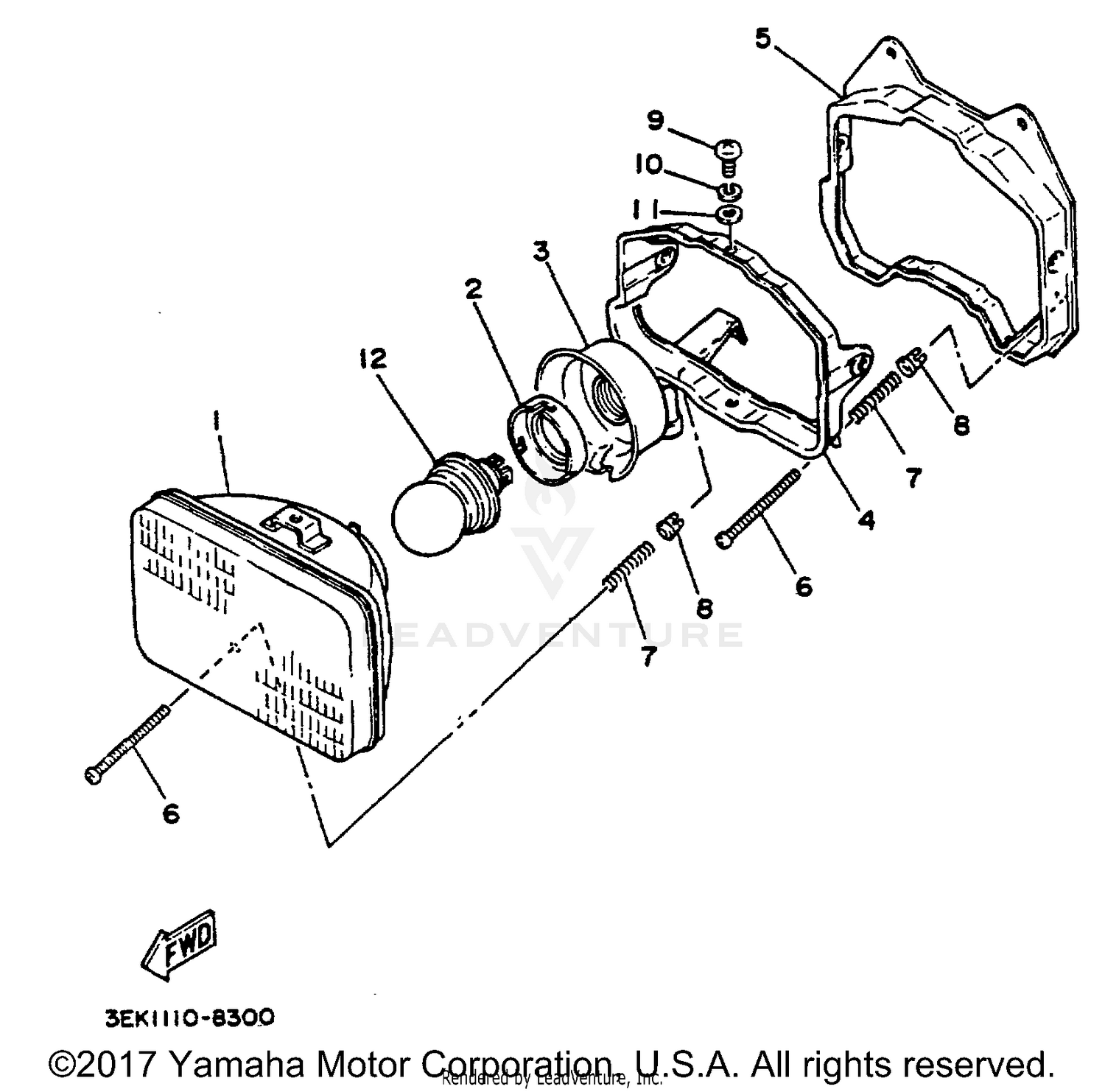

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LENS ASSY
50M-84320-60-00
|
$127.99 | ||
|
Unavailable |
|||
|
#2
HOLDER, BULB
341-84393-40-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
COVER
46X-84396-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#4
RING, RETAINING
50W-84395-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#5
RING, MOUNTING
50W-84394-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98501-04050-00
Superseded by 98507-04050-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, SCREW
341-84332-60-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, ADJUSTING
50W-84334-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
50W-84333-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLATE
92990-05600-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB, HEAD LIGHT (12V45/40W
1U4-84314-40-XX
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
